Introduction
Two-roll copper rolling mill occupies most low-precision copper wire production scenarios, while 4-roll copper rolling mill becomes the core preferred equipment for ultra-precision thin flat wire, rectangular motor wire and aerospace profiled copper wire manufacturing. The four-roll structure adds two large-diameter support rolls behind small-diameter work rolls, greatly improving mill overall rigidity and rolling force stability, realizing micron-level dimensional tolerance control that two-roll mills cannot achieve. This article systematically analyzes the structural characteristics, core technical advantages, applicable precision copper wire products and industrial application cases of 4-roll copper rolling mill, with cross-reference of flat wire production process at copper flat wire production process and general copper rolling technology at copper rolling process guide.
Unique Structural Design of 4-Roll Copper Rolling Mill
Different from two-roll mill’s single pair of working rolls, 4-roll rolling stand adopts “2 small work rolls + 2 large support rolls” layout:
- Small-diameter work rolls: Directly contact copper wire for forming, easy to polish, high surface finish of finished copper wire
- Large-diameter support rolls: Bear most rolling pressure, reduce work roll bending deformation under high pressure
- Hydraulic bending roll device: Real-time compensate roll deflection, completely eliminate strip/wire edge wave and thickness deviation
- Servo closed-loop roll gap adjustment: Micron-level precise clearance control, automatic compensation for roll wear
Modular design allows independent replacement of work rolls and support rolls, reducing equipment maintenance downtime by over 40% compared with traditional two-roll rolling mills.
6 Core Advantages of 4-Roll Copper Rolling Mill for Precision Copper Wire Production
Advantage 1: Ultra-High Dimensional Precision Control
Support roll anti-deflection structure avoids roll bending deformation under heavy rolling force; finished copper wire thickness tolerance reaches ±0.001mm, width tolerance ±0.002mm, far exceeding two-roll mill’s ±0.01mm minimum tolerance limit, fully meeting automotive, medical and aerospace precision copper wire standards.
Advantage 2: Suitable for Ultra-Thin Copper Wire Rolling
Work roll diameter can be designed smaller, enabling stable rolling of copper flat wire as thin as 0.05mm, which two-roll mills cannot produce without serious thickness fluctuation.
Advantage 3: Excellent Finished Wire Surface Quality
Small work rolls are easy to mirror polishing; matched closed-loop lubrication system produces copper wire surface roughness Ra≤0.6μm, no burrs or micro scratches, reducing subsequent polishing process steps.
Advantage 4: Stable Rolling Force & Long Roll Service Life
Support rolls share 80% rolling pressure, reduce work roll fatigue wear; service life of carbide work rolls increased by 60%, lowering mold replacement cost for long-term mass production.
Advantage 5: Wide Forming Profile Compatibility
By replacing profiling work rolls, 4-roll mill can produce flat wire, rectangular motor wire, trapezoidal profiled copper wire and ultra-thin copper strip, multi-specification flexible production, detailed rectangular wire manufacturing process at rectangular copper wire motor manufacture.
Advantage 6: Lower Material Scrap Rate
Hydraulic bending roll + AGC closed-loop thickness control eliminates edge wave, torsion and thickness drift defects; production scrap rate controlled below 2%, much lower than two-roll mill’s 6%–10% scrap loss.
Applicable Precision Copper Wire Products of 4-Roll Copper Rolling Mill

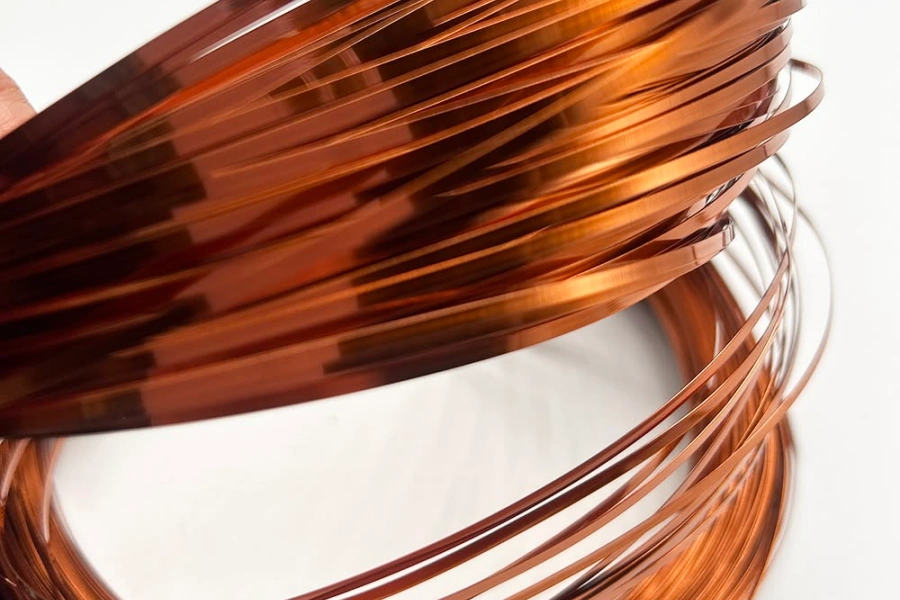

- New energy vehicle ultra-thin flat copper wire for automotive wiring harness
- High-precision rectangular copper wire for drive motor winding
- Medical equipment nickel-copper alloy precision wire
- Aerospace special trapezoidal profiled copper conductor
- Photovoltaic ultra-thin solder strip flat copper wire
- High-frequency transformer micron-tolerance enameled flat wire
Contrast Table: 4-Roll vs 2-Roll Copper Rolling Mill
| Performance Index | 4-Roll Copper Rolling Mill | Two-Roll Copper Rolling Mill |
| Minimum Thickness Tolerance | ±0.001mm | ±0.01mm |
| Thinnest Rolling Thickness | 0.05mm | 0.3mm |
| Roll Service Life | Long (60% longer) | Short, frequent replacement |
| Edge Defect Rate | ≤1% | 8%–15% |
| Investment Cost | Medium-High | Low |
| Suitable Production Scenario | High-precision ultra-thin copper wire | General low-precision thick flat wire |
Matching Production Line Configuration Suggestions
For full precision copper wire production, match 4-roll rolling mill with: constant tension payoff, inline ultrasonic cleaning, continuous annealing furnace, laser online dimensional detector and double-head automatic take-up machine; integrated roll-drawing combined line can raise overall production efficiency by 25%, comparison with independent drawing equipment at copper rolling mill vs drawing machine.
Conclusion
4-roll copper rolling mill solves the precision bottleneck of traditional two-roll rolling equipment, relying on support roll anti-deflection structure and hydraulic bending roll system to realize stable mass production of micron-level precision copper flat wire and rectangular wire. For manufacturers focusing on high-end electrical, automotive and aerospace precision copper wire products, 4-roll rolling mill is the optimal core forming equipment. Sky Bluer Environmental Technology Co., Ltd independently develops full series of 4-roll copper rolling mills and matched turnkey precision copper wire production lines, providing customized roll profiles, full-line automation configuration and global 24/7 after-sales technical support, covering flat wire, rectangular wire and alloy profiled wire integrated rolling solutions. For the working principle of wide copper strip rolling equipment, you can visit copper strip rolling mill principle.
