PV Ribbon Production Line

Complete Turnkey PV Ribbon Manufacturing Line for Solar Cell Interconnection, Busbar & MBB Production, integrating copper wire drawing, annealing, rolling, surface treatment, and precision winding into one continuous automated system.

What is PV Ribbon Production Line

A PV ribbon production line is an advanced system featuring a copper wire tinning process, specifically designed to manufacture solar interconnection ribbons, busbar ribbons, and MBB round wire ribbons—critical components in photovoltaic modules. By incorporating the latest technology, this production line enhances current transmission efficiency within solar cells, optimizing power generation. We offer turnkey solutions that include innovative process design, seamless equipment integration, and layout optimization, ensuring a highly efficient and reliable production process from start to finish.

PV Ribbon Machine Types and Typical Specifications

Sky Bluer Environmental Technology Co., Ltd. designs PV ribbon production lines mainly for the manufacturing of three key product types:

Round Wire Ribbon (RWR)

Round wire ribbon is used in advanced PV module designs to reduce shading and improve module efficiency.

Typical finished diameter: 0.26 mm (after tin coating)
Tin coating thickness:
Single side: 0.015 mm
Total (double side): 0.03 mm
Application: high-efficiency PV modules
Advantage: reduced optical shading, improved energy output

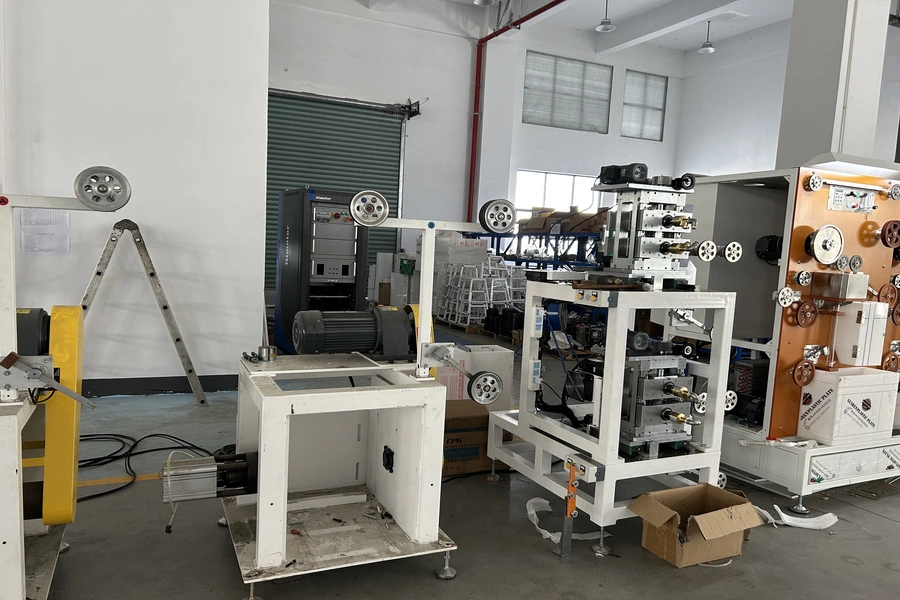

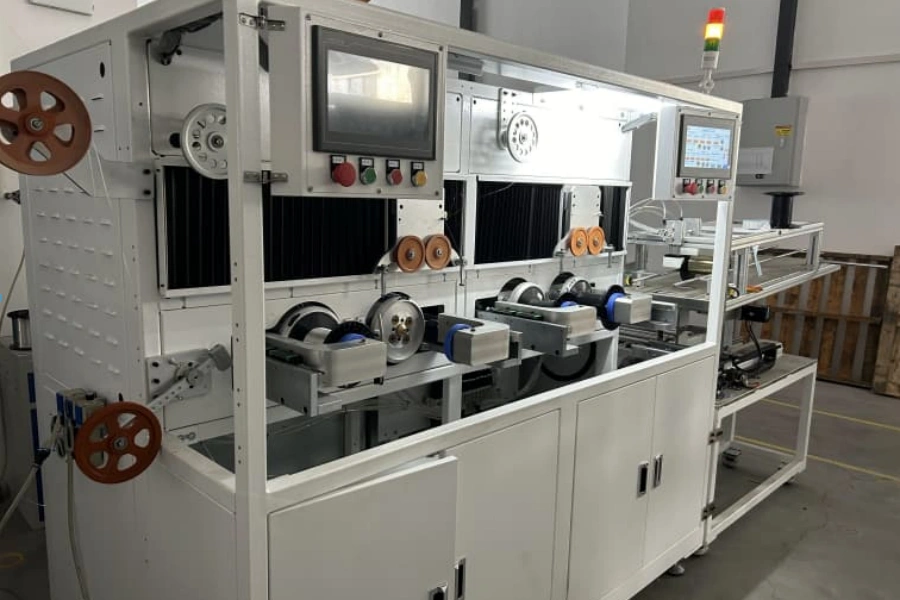

Interconnect Ribbon (Flat Ribbon)

Busbar ribbon is used to collect current from interconnected cell strings and transfer it to the junction box.

Typical size: 5.0 × 0.30 mm (width × thickness)
Profile: flat (wide cross-section)
Application: current collection and output
Requirement: high conductivity, stable mechanical performance

Busbar Ribbon

Busbar ribbon is used to collect current from interconnected cell strings and transfer it to the junction box.

Typical size: 5.0 × 0.30 mm (width × thickness)
Profile: flat (wide cross-section)
Application: current collection and output
Requirement: high conductivity, stable mechanical performance

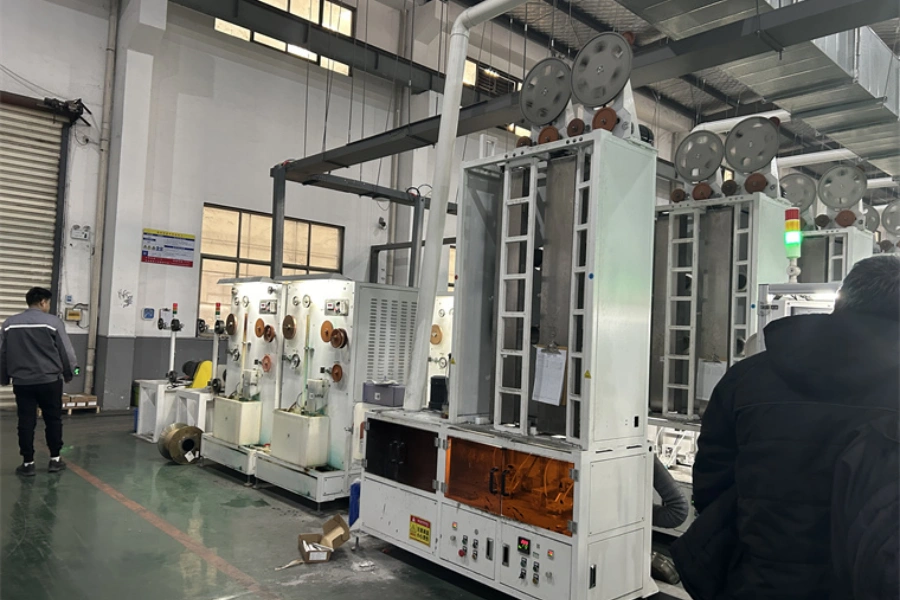

Production Process Overview

CRM PV ribbon production line is a fully automated and continuous manufacturing system designed to convert copper wire into high-precision solar ribbons for photovoltaic interconnection, busbar, and MBB applications.

The process includes wire drawing, annealing, precision rolling, surface treatment, plating, and controlled winding, ensuring stable conductivity, tight dimensional tolerance, and consistent surface quality for reliable solar module performance.

Technical Capabilities

Sky Bluer Environmental Technology Co., Ltd. provides flexible configurations to meet different ribbon specifications and production requirements.

Typical technical ranges include:

Ribbon thickness range: 0.08 – 0.50 mm
Ribbon width range: 0.8 – 6.0 mm
Coating thickness (tin layer): 5 – 30 μm (customizable)
Production speed: 50 – 300 m/min
Materials: copper, tinned copper

Typical specifications listed above are for reference. Final parameters can be customized based on ribbon type, material, and production requirements.

Why PV Ribbon Production Requires Specialized Lines

PV ribbon production requires much higher standards than conventional flat wire processing. In addition to dimensional accuracy, strict control of coating uniformity and surface quality is essential to ensure reliable soldering performance.

Sky Bluer Environmental Technology Co., Ltd. integrates forming and coating processes into one optimized production system, ensuring stable quality, reduced defects, and efficient continuous production.

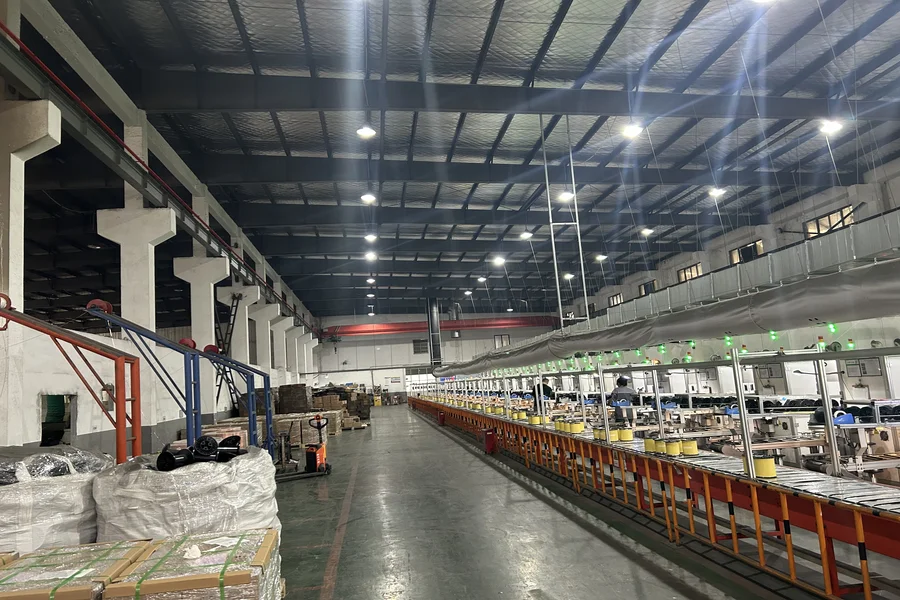

Turnkey Solution Capability

Sky Bluer Environmental Technology Co., Ltd. provides complete turnkey solutions for PV ribbon production lines, including:

Process design
Equipment manufacturing
Line layout planning
Installation and commissioning
Technical training

We support customers from initial planning to full production, ensuring a smooth and efficient project implementation.

Applications in Solar Industry

Solar cell interconnection – Production of flat copper or silver-coated wires with tight dimensional tolerances for minimizing electrical resistance and ensuring reliable series connections between solar cells.
PV module assembly – High-precision wire shapes optimized for automated lamination and soldering processes, improving mechanical stability and electrical conductivity in modules.
High-efficiency solar panels – Wires manufactured to exact cross-sectional profiles and surface finishes that reduce shading and resist corrosion, enhancing panel efficiency over time.
Advanced photovoltaic technologies – Custom-shaped wires for next-generation PV technologies, including bifacial and multi-junction cells, where precise geometry and conductivity are critical.

Request a Customized PV Ribbon Production Line Solution?

Share your required ribbon type, material specifications and production demands with Sky Bluer Environmental Technology Co., Ltd. Our professional engineering team will conduct a comprehensive assessment and deliver customized PV ribbon production line solutions tailored to your actual needs.

Get in touch with us today to obtain a full technical proposal and exclusive project quotation.
