Wedge Wire Screen Production Line
Complete wedge wire screen production line designed for manufacturing high-precision filtration screens with continuous slot openings, widely used in water treatment, oil & gas, mining, and industrial separation applications.
- About Company
Overview of Wedge Wire Screen Production Line
The wedge wire screen production line is designed to manufacture profile wire-based filtration products with precise slot geometry and high structural strength. The production process involves forming wedge-shaped profile wires and welding them onto support rods to create continuous slot openings.
Industry-leading wedge wire products are widely recognized for their precision, durability, and resistance to clogging. These characteristics are essential for demanding filtration environments.
Sky Bluer Environmental Technology Co., Ltd. provides customized wedge wire production line solutions that integrate forming, welding, alignment, and finishing processes into a stable and efficient system.
- About Company
What Is a Wedge Wire Screen?

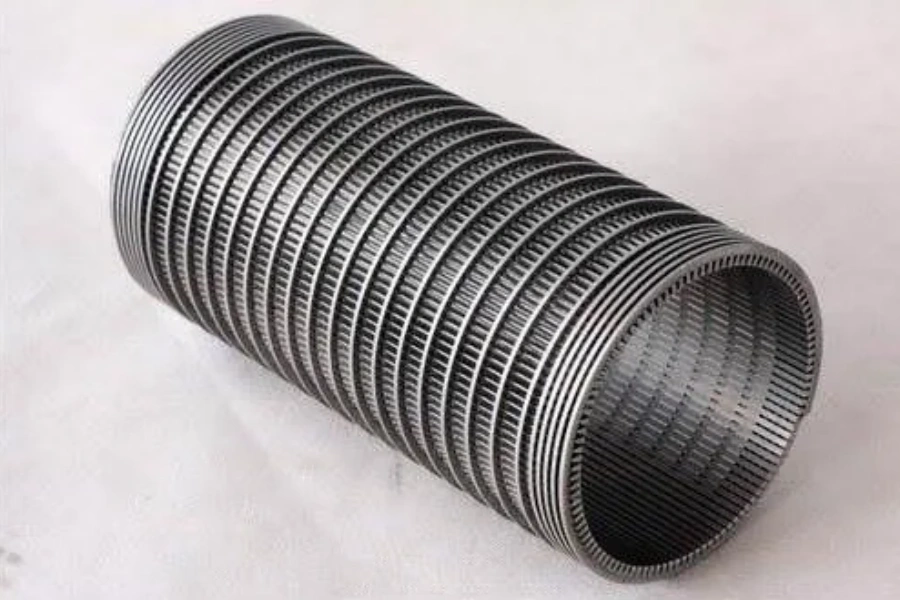

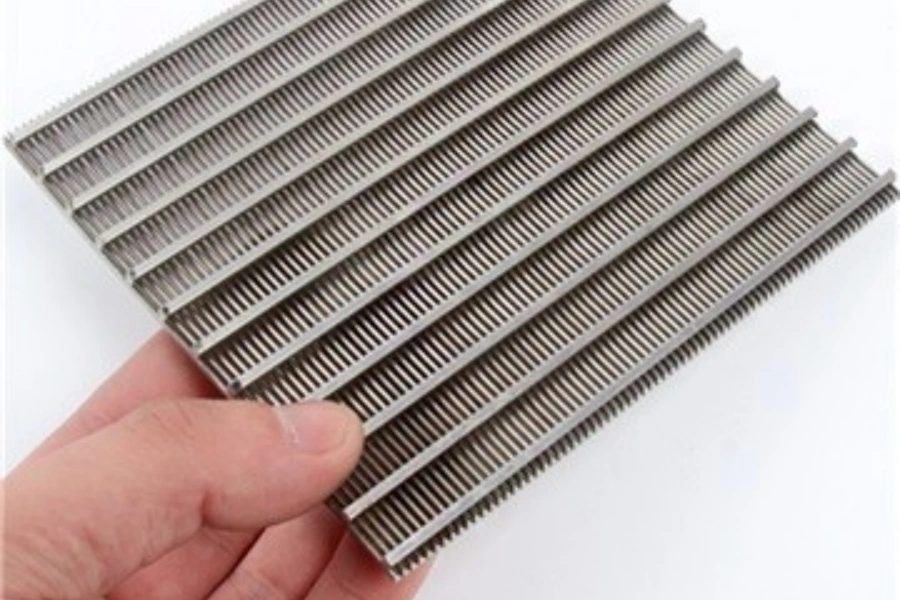

A wedge wire screen is constructed by welding V-shaped profile wires onto support rods, forming a rigid structure with continuous slot openings.
This structure provides:
- Precise and uniform slot control
- High mechanical strength
- Excellent resistance to clogging
- Long service life under harsh conditions
Such structures are widely used in industrial filtration systems where consistent separation performance is required.
- About Company
Production Process of Wedge Wire Screens
The manufacturing process typically includes:
- Profile wire rolling from round wire to wedge shapes
- Support rod feeding and positioning
- Resistance welding
- Alignment and straightening
- Cutting to required dimensions
- Surface finishing and collection
This process ensures that profile wires are accurately formed and securely welded, maintaining consistent slot openings and structural integrity.
Key Components of the Stainless Steel Wedge Wire Production Line

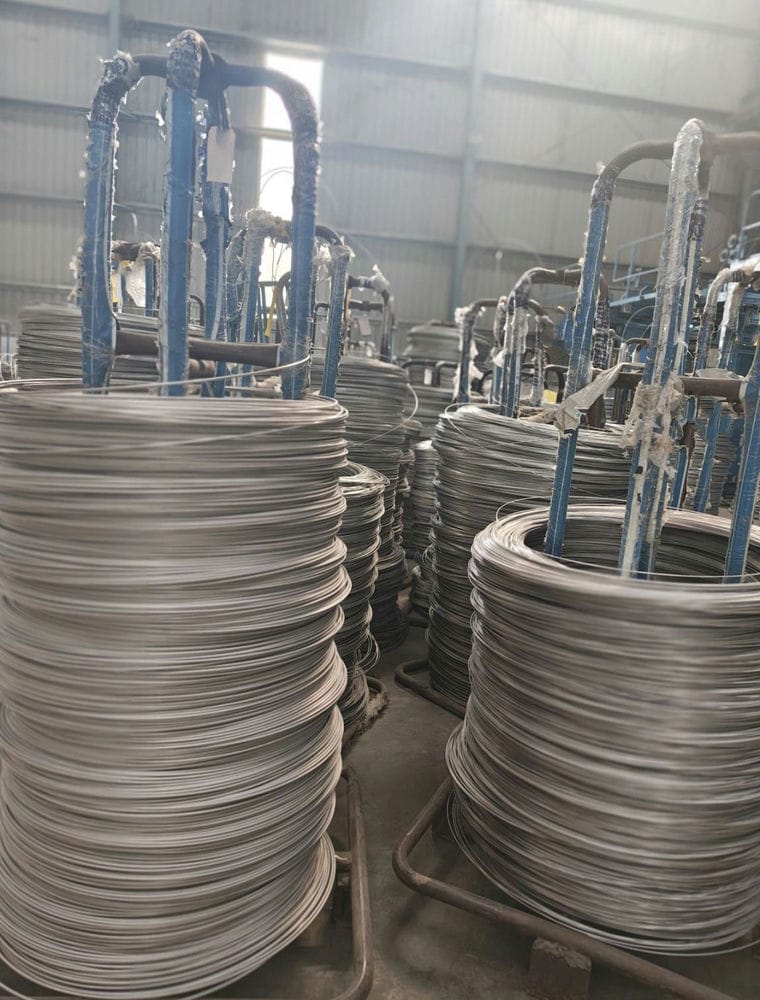

Payoff Machine
- Precision rolling rolls
- Adjustable profile geometry
- Stable continuous forming
- Suitable for stainless steel and alloy materials

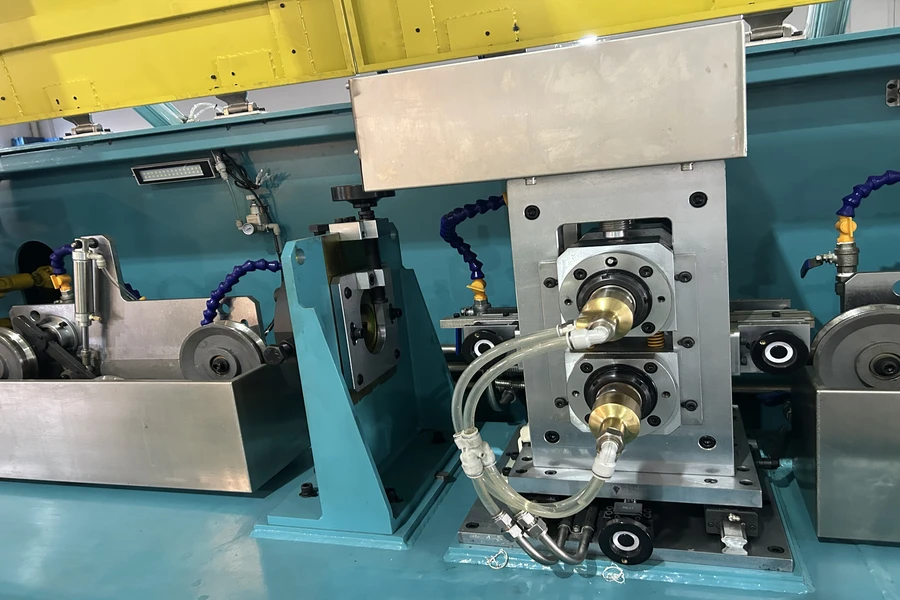

2 High Rolling Mill
The CRM 2 High Rolling Mill is designed to roll round wire into precision flat wire with excellent thickness control, dimensional accuracy and surface finish. Suitable for copper, aluminum, stainless steel and specialty alloys, it delivers stable performance for continuous flat wire production.
Profile Wire Rolling Mill System
The CRM Profile Wire Rolling Mill System is specifically designed for manufacturing precision stainless steel profile wire from round wire. It produces flat, rectangular, square, trapezoidal, wedge and other custom profiles with excellent dimensional accuracy, superior surface.

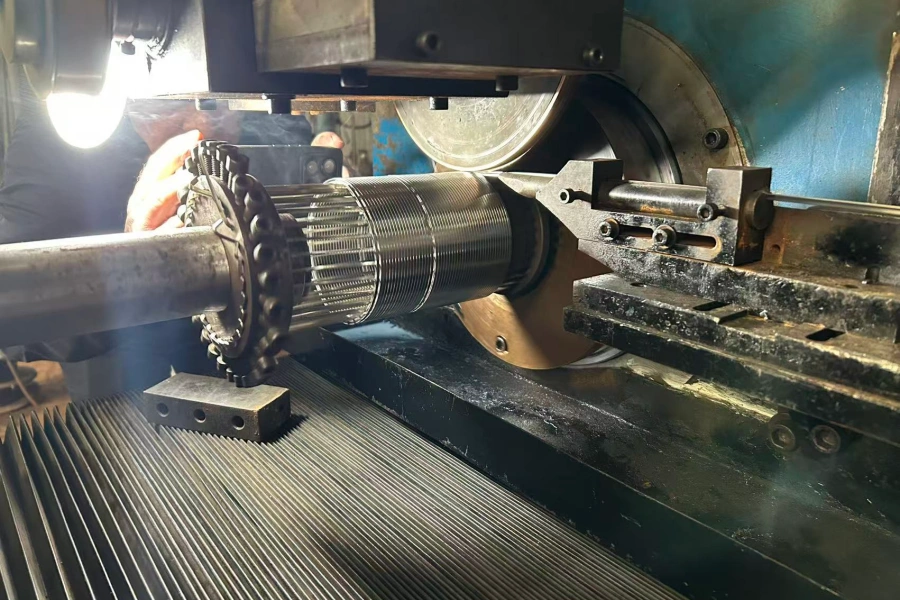

Resistance Welding System
- High-precision welding control
- Stable and consistent welding joints
- Adjustable parameters for different materials
- Ensures structural integrity of wedge wire screens

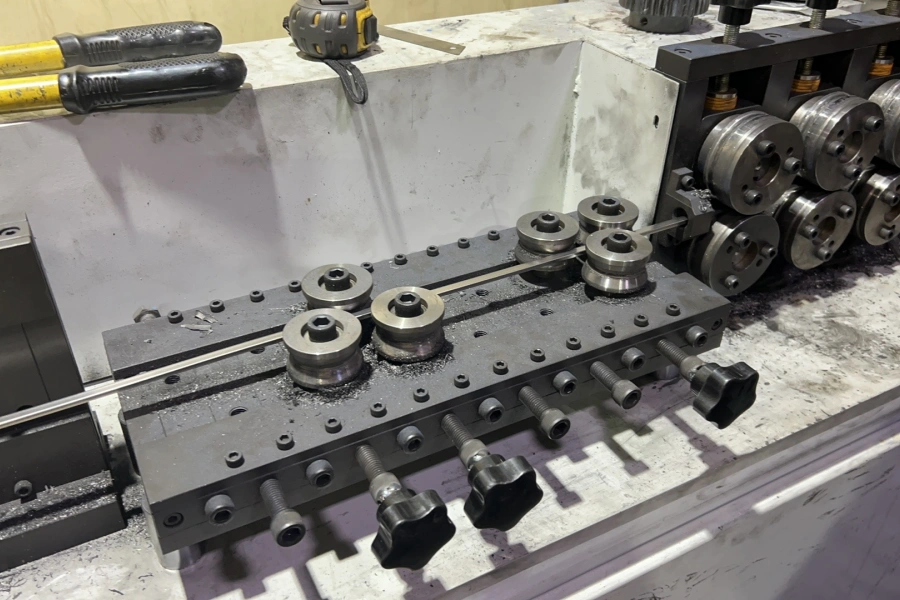

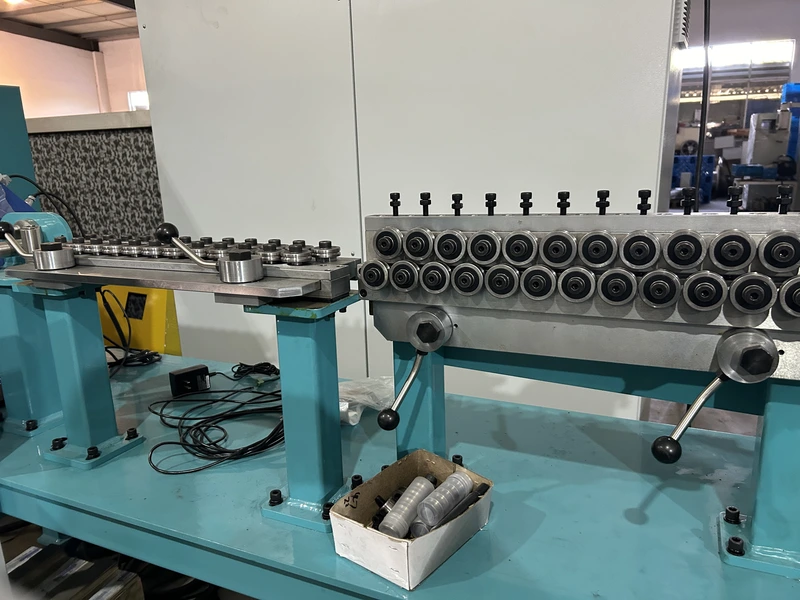

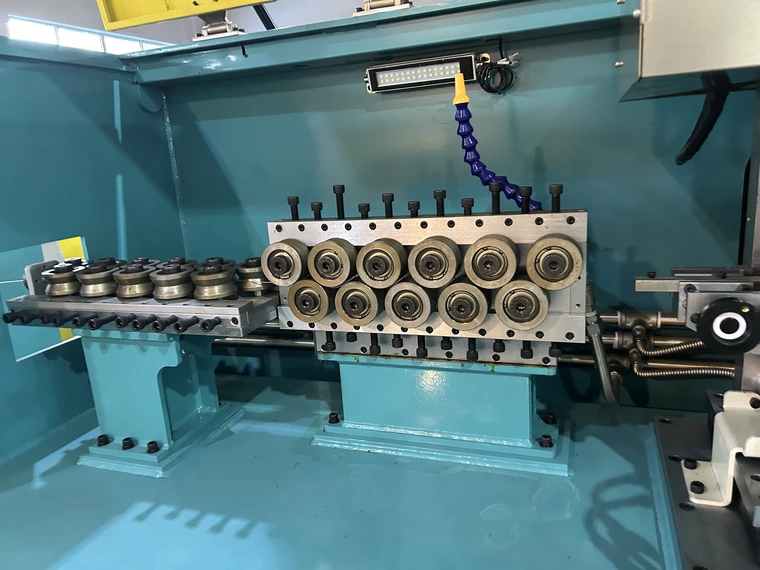

Alignment and Straightening Unit
- Multi-roll alignment system
- Adjustable configuration for different specifications
- Improves straightness and dimensional accuracy

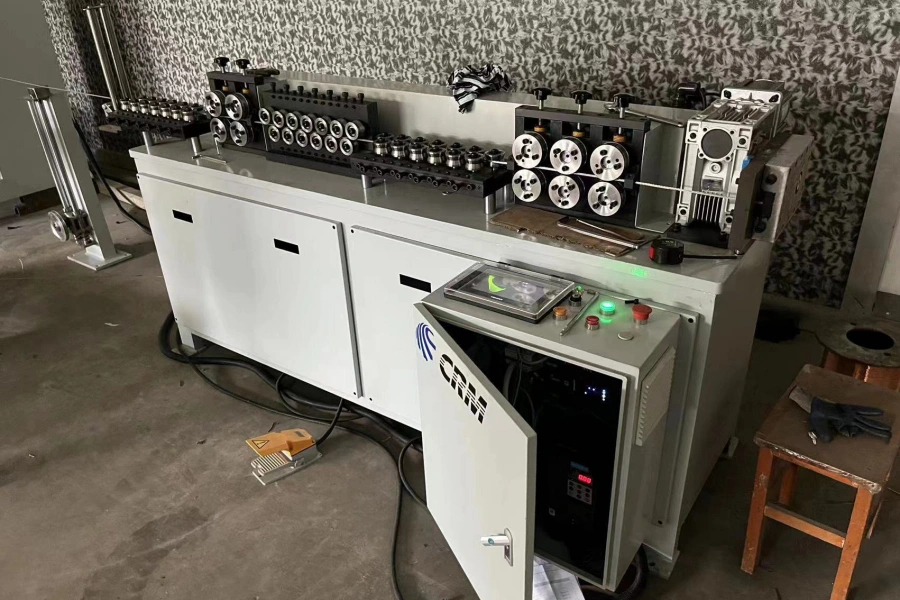

Straightening and Cutting Machine
- Automatic or semi-automatic cutting
- Accurate length control
- Efficient material handling
- Suitable for continuous production

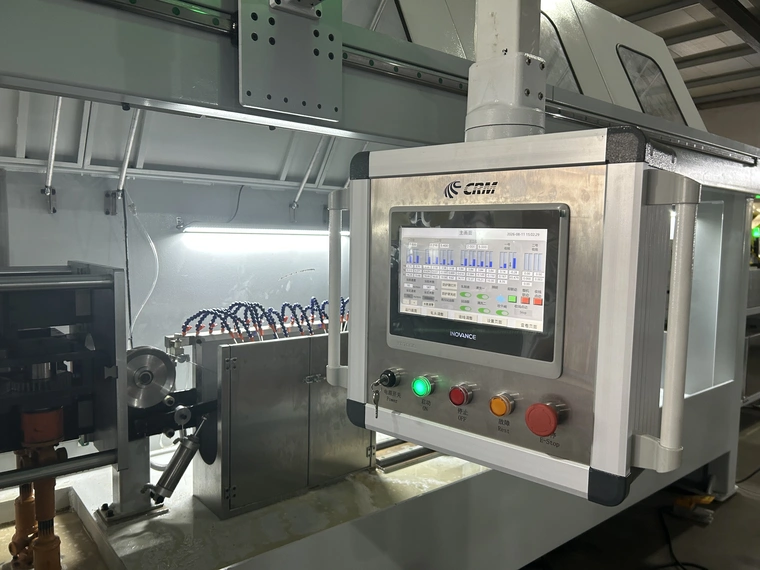

Quality Inspection and Surface Treatment Unit
• Automated inspection system for surface defects
• Dimensional and profile accuracy monitoring
• Surface finishing options: polishing, deburring, or passivation
• Ensures consistent product quality and meets industry standards
Wedge Wire Screen Welding Machine

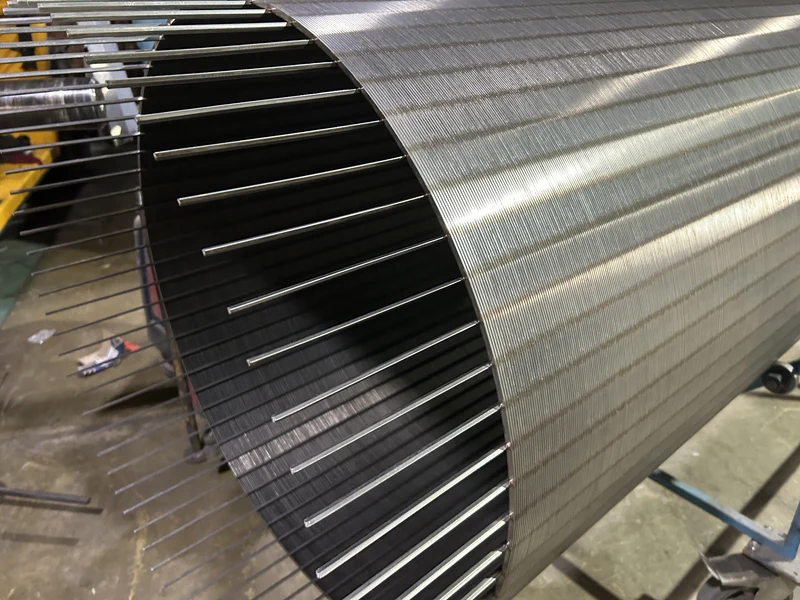

The CRM Wedge Wire Screen Welding Machine is used for welding stainless steel wedge wire screens. It provides accurate wire positioning, stable welding performance and consistent weld quality for reliable screen manufacturing.
- About Company
Key Features of the Metal Wedge Wire Production Line
- Designed for continuous industrial production
- High precision forming and welding capability
- Stable and repeatable manufacturing performance
- Flexible configuration for different specifications
- Compatible with stainless steel materials such as 304 and 316
- Custom engineering based on application requirements
Stainless Steel Wedge Wire Specifications & Rolling Capability
Sky Bluer Environmental Technology Co., Ltd. integrates rolling mill technology into the production process, enabling the transformation of round wire into wedge-shaped profile wire with consistent geometry and high precision.
Typical Stainless Steel Wedge Wire Sizes
- Profile wire width: 1.0 mm – 5.0 mm
- Profile wire height: 1.5 mm – 10.0 mm
- Slot opening: 0.02 mm – 3.0 mm
- Support rod diameter: 2.0 mm – 10.0 mm
- Screen diameter: Customized
- Screen length: Customized
Technical Tolerances
- Profile wire tolerance: ±0.02 mm – ±0.05 mm
- Slot opening tolerance: ±0.02 mm – ±0.1 mm
- Straightness: Controlled within industrial standards
- Welding accuracy: High repeatability
Round Wire to Wedge Wire Rolling Process
Our rolling mills enable the forming of wedge-shaped profile wire from round wire through controlled cold rolling processes.
- About Company
Machine de Laminage
Item Specification | |
Raw material | Stainless steel (304 / 316 / others) |
Profile wire forming method | Rolling / forming |
Welding type | Resistance welding |
Slot range | 0.02 mm – 3.0 mm |
Production type | Continuous / customized |
Line configuration | Modular / turnkey |
Control system | PLC automated control |
Operation mode | Semi-automatic / fully automatic |
- About Company
Applications of Wedge Wire Screens
Wedge wire screens are widely used in:
- Water treatment systems
- Oil & gas filtration
- Mining and mineral processing
- Food and beverage industry
- Chemical and petrochemical industries
- Industrial solid-liquid separation
Their anti-clogging structure and high strength make them suitable for continuous filtration processes.
Common Questions
Frequently Asked Questions
What materials can be used?
Stainless steel such as 304, 316, and other alloys depending on application requirements.
What slot sizes are available?
Typically from 0.02 mm to 3.0 mm, customizable based on filtration needs.
Can the line be customized?
Yes, Sky Bluer Environmental Technology Co., Ltd. provides fully customized solutions.
What is the advantage of rolling-based forming?
It provides better dimensional stability, surface quality, and consistent profile geometry.
Is it suitable for industrial production?
Yes, the line is designed for stable and continuous industrial-scale manufacturing.
How long is the production line’s lifespan?
The production line is built with high-quality components and precision engineering, offering a long operational life with proper maintenance, typically over 10 years under normal industrial use.
