Enamelled Rectangular Copper Wire Production Line
SKY BLUER provides advanced enamelled rectangular copper wire production lines integrating precision rolling, annealing, and enamelling systems. Our solution enables manufacturers to convert round copper wire into high-precision rectangular conductors, followed by insulation coating, ensuring stable quality, high efficiency, and compliance with international standards.
- About Company

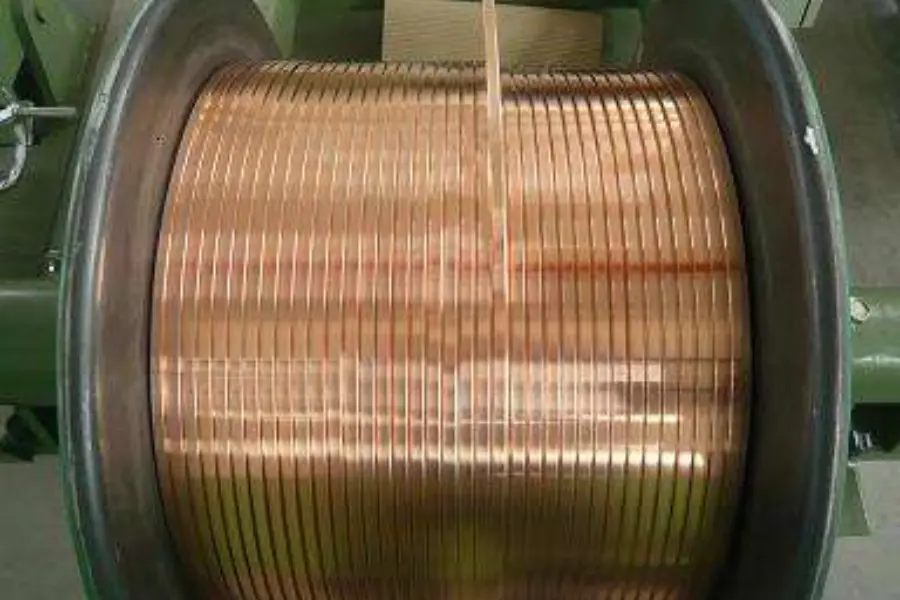

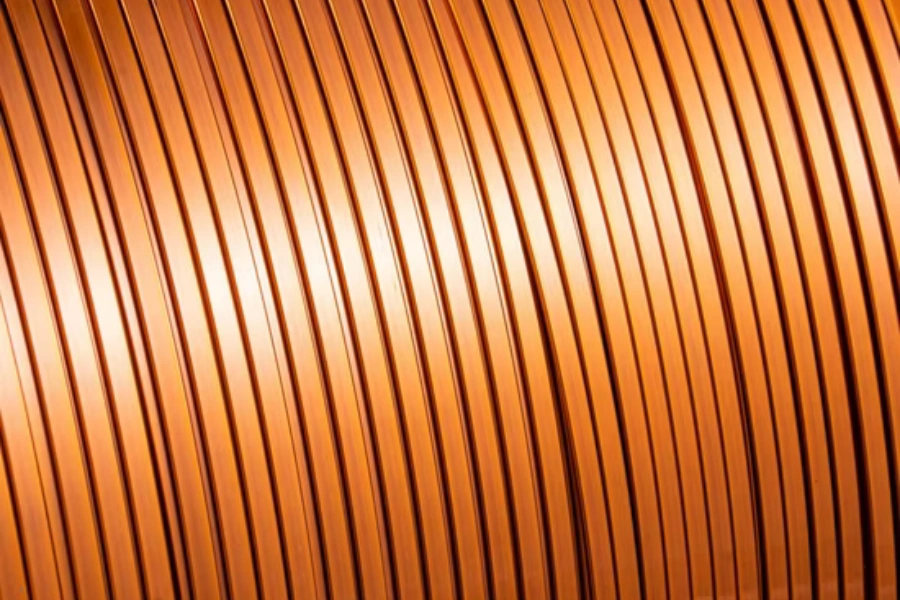

What is Rectangular Copper Wire and Its Advantages?
Enamelled rectangular copper wire is a flat conductor with a rectangular cross-section coated with an insulating enamel layer.
Compared with round wire, it offers:
- Higher slot fill factor
- Better space utilization
- Improved thermal performance
- Reduced energy loss
- Compact winding design
It is widely used in high-efficiency electrical equipment where performance and size optimization are critical.
- About Company
Applications
Enamelled rectangular copper wire is used in a wide range of industries:
- Electric motors (industrial motors, EV motors)
- Transformers and inductors
- Generators and alternators
- HVAC compressors
- Renewable energy systems
- Power transmission and distribution equipment
- About Company
International Standards & Technical Requirements
Rectangular copper wire production follows international standards such as:
- IEC 60317 series
- IEC 60317-0-2 (general requirements for rectangular wire)
- UL standards
- BS standards
Key technical requirements include:
- Strict dimensional tolerances
- Controlled width-to-thickness ratio
- Smooth corner radius (R angle)
- Stable enamel insulation
- Thermal class compliance (Class 120°C – 240°C)
- About Company
Typical Sizes, Tolerances & R Angle
Typical Size Range:
- Thickness: 0.3 mm – 10.0 mm
- Width: 1.0 mm – 22.0 mm
- Width-to-thickness ratio: 1.4:1 – 8:1
Dimensional Tolerances:
Size Range Tolerance
≤ 3.15 mm ±0.030 mm
3.15 – 6.30 mm ±0.050 mm
6.30 – 12.50 mm ±0.070 mm
Corner Radius (R):
- Smooth rounded edges required
- Prevent insulation damage
- Controlled according to IEC standards
Production Process Overview
The enamelled rectangular copper wire production line typically includes:
Precision Rolling
Multi-pass rolling system converts round wire into rectangular shape with high dimensional accuracy.
Enamelling Process
Multi-layer coating system with controlled curing ovens ensures uniform insulation.

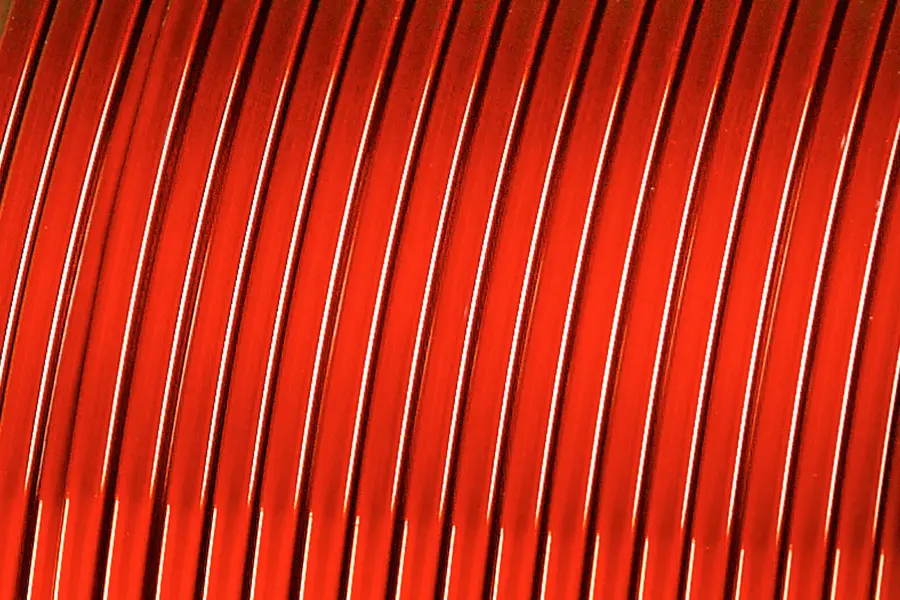

Cooling & Winding
Final product is cooled and wound into spools for packaging and transport.
- About Company
Our Rectangular Copper Wire Manufacturing Capability
SKY BLUER is a full-solution provider for rectangular copper wire production, not just an equipment supplier.
Our rolling technology enables:
- Conversion from round wire to rectangular copper wire
- Multi-pass precision forming with stable dimensions
- Consistent width, thickness, and edge control
We also provide complete support for:
- Rolling mills for rectangular wire forming
- Enamelling equipment for insulation coating
- Integrated production lines combining forming and coating
- Turnkey plant design and layout planning
From raw material to finished enamelled wire, we deliver a complete and customized production solution.
- About Company

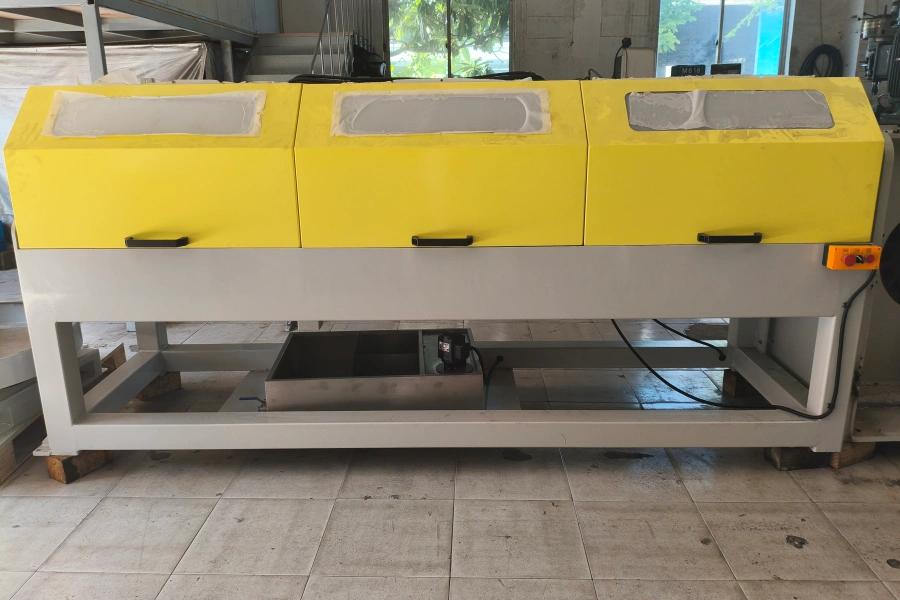

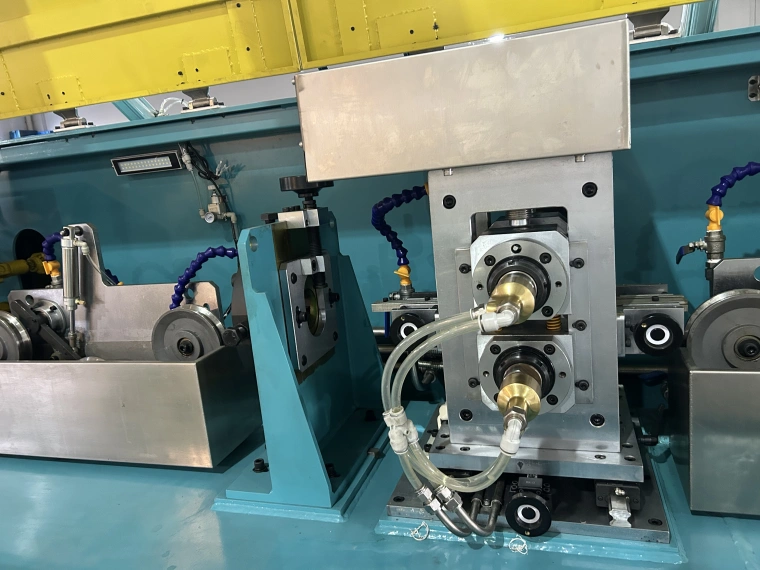

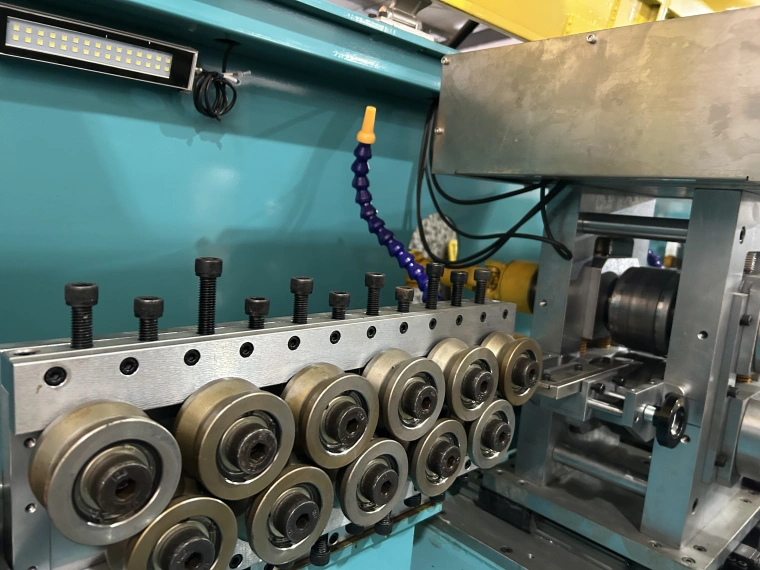

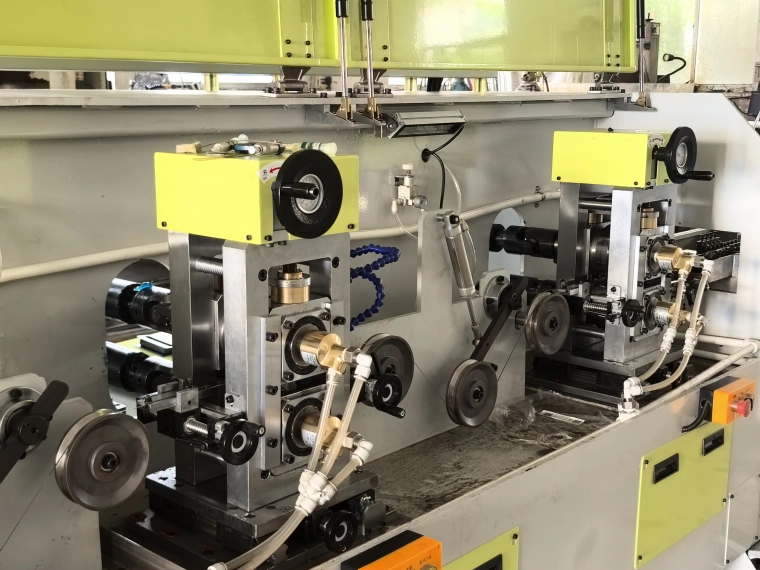

Rectangular Copper Wire Rolling Machine
Our rolling mills are designed for high precision forming of rectangular copper conductors.
Key Features:
- Multi-stand rolling configuration
- High dimensional accuracy control
- Stable tension control system
- Suitable for continuous production
- Adjustable for different wire sizes
- Integrated with annealing and downstream processes
This allows manufacturers to achieve consistent rectangular geometry with excellent surface quality.
- About Company

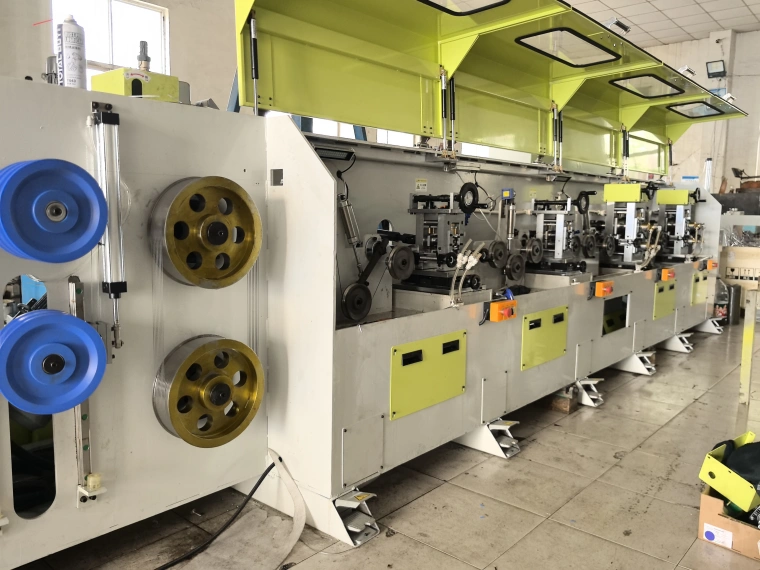

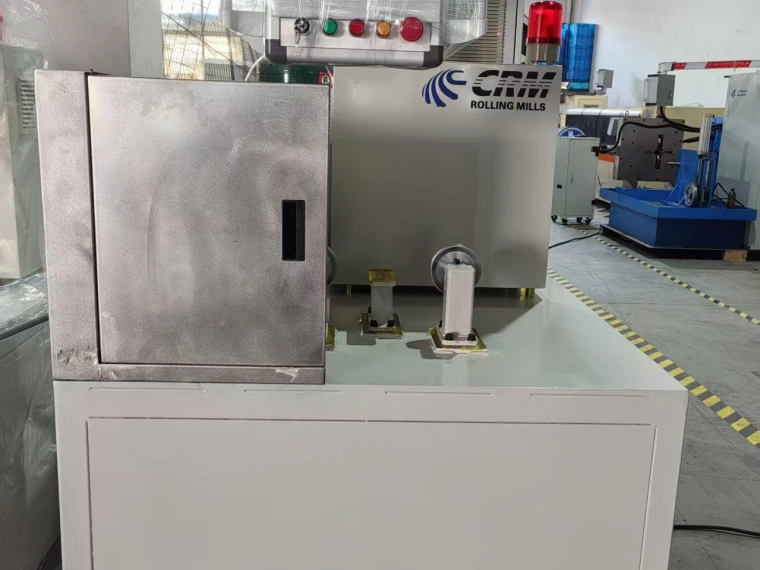

Enamelling System
Our enamelling equipment ensures reliable insulation coating with:
- Multi-layer enamel application
- Controlled curing ovens
- Stable temperature management
- Uniform coating thickness
- High adhesion performance
The system can be configured for different thermal classes and insulation requirements.
- About Company
Turnkey Plant Solution
We provide complete turnkey solutions for rectangular copper wire manufacturing plants:
- Process design and engineering
- Equipment configuration
- Factory layout planning
- Installation and commissioning
- Operator training and technical support
This ensures customers can start production efficiently with optimized workflow and stable output.
- About Company
Why Use Rectangular Copper Wire?
Rectangular copper wire offers significant advantages over traditional round wire, especially in applications where efficiency, space utilization, and thermal performance are critical.
By using a rectangular cross-section, the conductor can achieve a tighter winding structure with fewer gaps, improving the overall performance of electrical equipment.
Key advantages include:
- Higher slot fill factor
Rectangular geometry allows more copper to be packed into the same space, increasing power density.
- Improved energy efficiency
Reduced air gaps and optimized winding structure help lower electrical losses.
- Reduced material and winding losses
Better conductor utilization leads to more efficient current transmission.
- More compact coil design
Enables smaller and lighter electrical equipment with the same output performance.
- Better thermal performance
Improved heat dissipation due to increased contact area and tighter winding arrangement.
These advantages make rectangular wire the preferred choice for modern high-performance electrical equipment.
- About Company
Technical Advantages of Our Line
- Integrated rolling + enamelling solution
- High precision and stable operation
- Customizable production capacity
- Suitable for multiple wire specifications
- Energy-efficient design
- Designed for continuous industrial production
- Compliance with international standards
- About Company
Industries We Serve

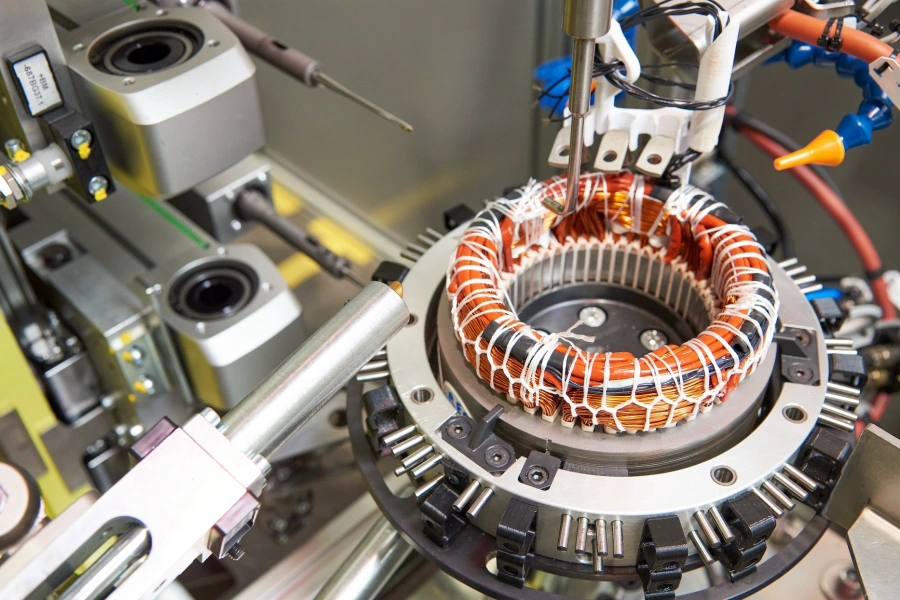

- Motor manufacturing
- Transformer industry
- Electrical engineering
- Renewable energy
- Automotive (including EV sector)
- Power equipment manufacturers
- About Company
Custom Solutions Available
Every project is different. We provide customized configurations based on:
- Required wire size range
- Production capacity
- Factory layout
- Automation level
- Target markets and standards
- About Company
Get a Customized Solution
If you are planning to produce enamelled rectangular copper wire or build a complete production line, contact us for a tailored solution.
Our engineering team will help you design a system that meets your technical requirements and production goals.
