Precision Wire Drawing Machines for Integrated Wire Production Lines
From fine round wire to flat, rectangular, and complex profile wire, our systems deliver precision, consistency, and efficiency across the entire production line.
- About Company

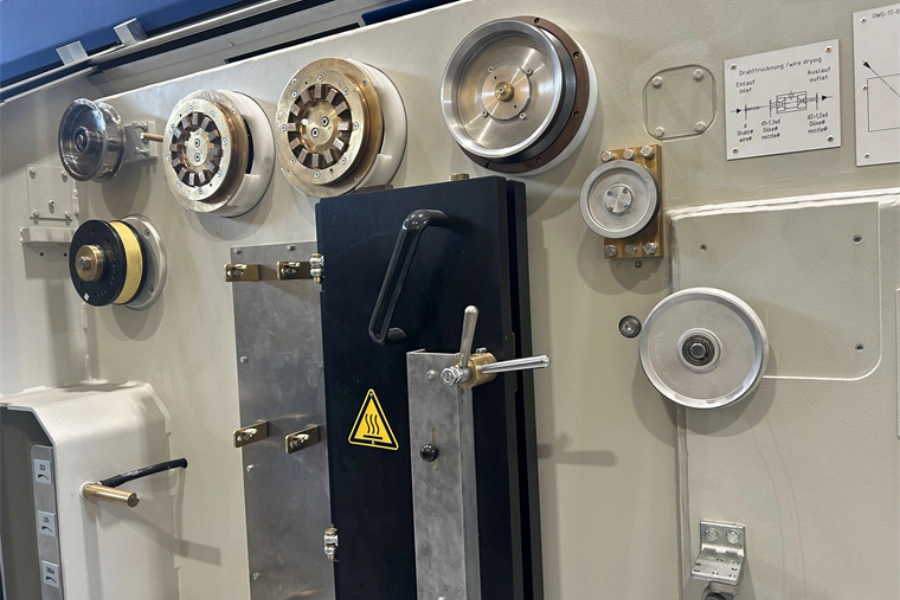

Precision Wire Drawing Equipment
Sky Bluer designs and manufactures precision wire drawing equipment for advanced metal wire production lines. Our machines include several types to suit different production requirements: one type reduces large-diameter round wire to smaller diameters, another type transforms round wire into flat or profile shapes, and a third type performs post-rolling sizing and edge radius correction with exceptional precision. Fully compatible with precision rolling mills, Turks head systems, inline annealing units, and automated take-up systems, these machines form the core of complete, high-performance wire forming production lines.
Supported Wire Types:
- Fine Round Wire

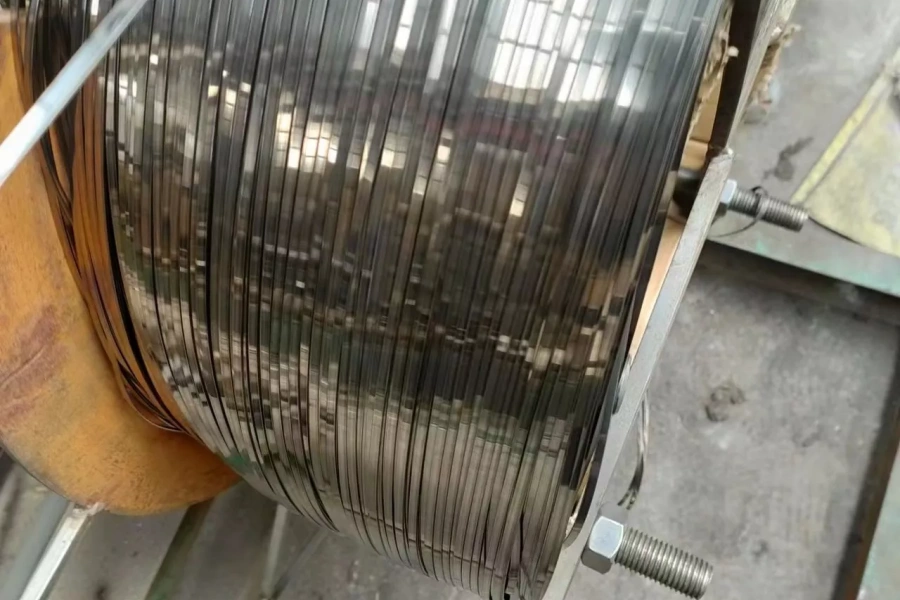

- Flat Wire
- Rectangular Wire
- Square Wire
- Trapezoidal Wire
- Special Profile Wire
- About Company
Recommended Wire Drawing Equipment
Sky Bluer offers several types of precision wire drawing machines tailored to different stages of the production line. Each machine type includes key technical parameters to guide selection based on wire material, shape, and process requirements.
Machine Type | Function | Applications | Technical Parameters | Key Advantages |

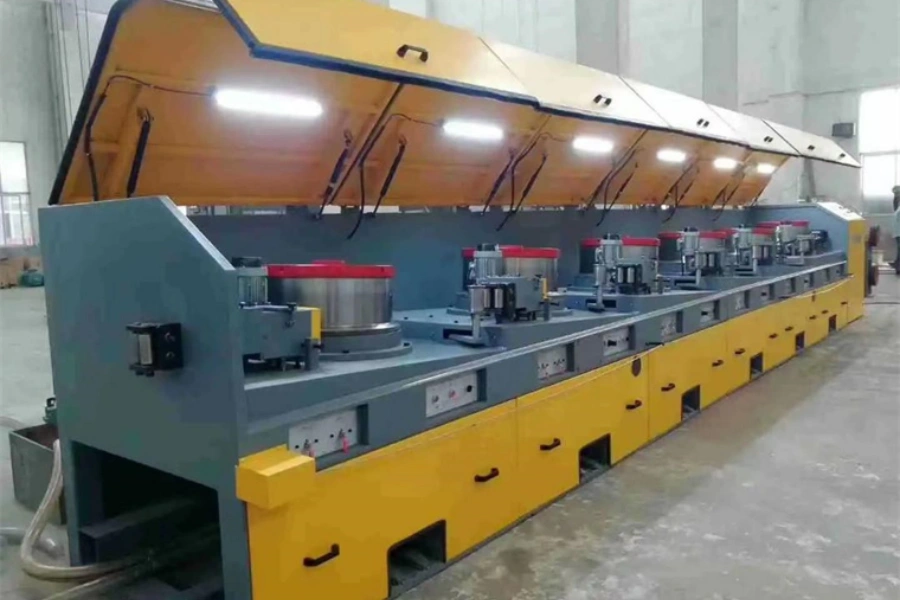

Round-to-Round Wire Drawing Machine | Reduce large-diameter round wire to smaller diameter | Fine copper and aluminum wire, electronic wire | Input Ø: 8–0.01 mm | High precision, multi-pass drawing, stable operation, low vibration |
Round-to-Flat/Profile Wire Drawing Machine | Directly form flat, rectangular, or profile wire | Flat wire for EV motors, profile conductors, magnet wire | Input Ø: 4–1 mm | High throughput, fewer production steps, precise profile forming, consistent surface quality |
Post-Rolling Precision Drawing Machine | Final sizing, edge radius correction, surface optimization | High-precision flat wire, enameled wire, transformer wire | Input Ø: 2–0.5 mm | Edge radius consistency, improved surface finish, precise dimensional control, tension stabilization |
Note: Parameters vary depending on wire material, diameter, and specific production line setup. Our engineers customize machine configurations to optimize performance, wire quality, and production efficiency.
Wire Drawing Process Solutions
Drawing Before Rolling
Process Flow:
Rod → Multi-pass Drawing → Fine Round Wire → Precision Rolling → Flat/Rectangular Wire
Description:
Ideal for high-precision flat wire and magnet wire production, this process reduces wire diameter before rolling to ensure dimensional consistency, enhance rolling stability, and improve surface quality.
Key Benefits:
- Enhanced dimensional accuracy
- Improved material consistency
- Superior surface finish
- Stable rolling performance
Direct Profile Drawing
Process Flow:
Round Wire → Profile Drawing Die → Flat / Sector / Shaped Wire
Description:
For applications requiring flat, sector, trapezoidal, or other complex wire profiles, our drawing machines can form wires directly with minimal processing steps. This method lowers production costs while maintaining high throughput.
Applications:
- Trapezoidal conductors
- Compact winding wires
- Special profile wire
Post-Rolling Precision Drawing
Process Flow:
Rod → Drawing → Precision Rolling → Skin Pass Drawing → Final Precision Wire
Description:
Used after rolling, this process ensures final sizing, edge radius correction, surface optimization, and tension stabilization for high-precision applications. Essential for enameled flat wire, EV motor conductors, transformer wires, and other critical applications.
Key Advantages:
- Consistent edge radius control
- Improved surface finish
- Enhanced dimensional tolerance
- Reduced wire deformation
- About Company
Supported Wire Types
- Round Wire:Fine copper and aluminum wire for electronic and industrial applications
- Flat Wire:For transformers, EV motors, and enameled wire applications
- Rectangular Wire:High dimensional accuracy for precision winding
- Square Wire:Suitable for compact conductor manufacturing
- Trapezoidal Wire:Ideal for compact stranded conductors
- Special Profile Wire:Customized solutions for complex shapes and high-performance conductors
- About Company
Integration With Complete Wire Production Lines
Our wire drawing machines are designed for seamless integration with:
- Precision Rolling Mills
- Turks Head Systems
- Inline Annealing Furnaces
- Automatic Tension Control Systems

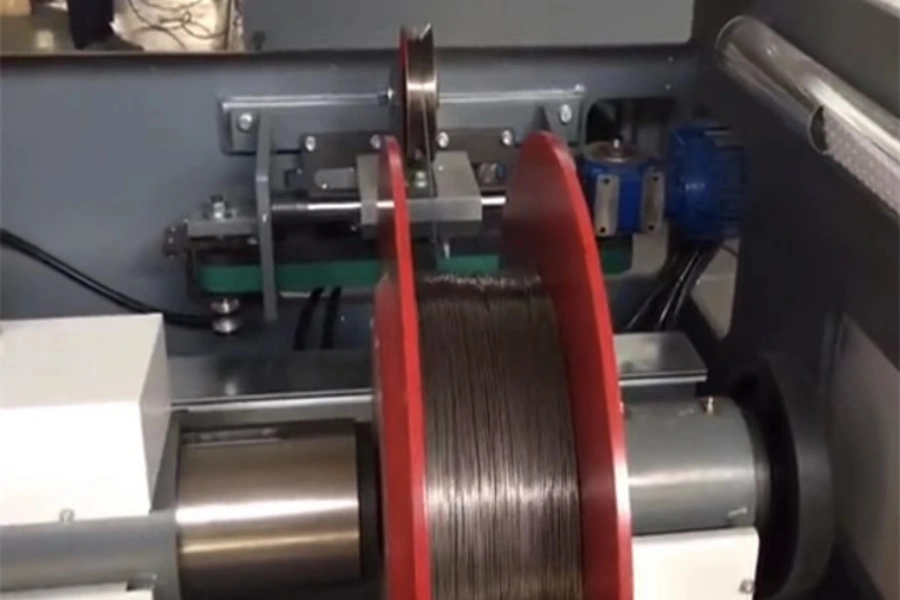

- Precision Take-Up Units
- Surface Treatment Systems
This fully integrated approach improves process stability, ensures consistent product quality, and maximizes production efficiency.
- About Company
Industries Served
- Electric Vehicle Motors:High-precision flat wire for hairpin stators
- Transformer Industry:Rectangular and enameled conductors
- Solar Energy:PV ribbon and specialized conductors
- Aerospace:High-precision profile wire with strict tolerances
- Medical Wire:Fine wire with superior surface quality
- Electronic Components:Ultra-fine conductors for precision applications
- About Company
Key Technical Advantages
- Stable multi-pass wire reduction
- Precision dimensional control
- Superior edge radius consistency
- Excellent surface quality
- Integrated production capability
- High-speed continuous operation
- Flexible profile forming
- Copper and aluminum compatible
Common Questions
Frequently Asked Questions
What wire diameter ranges can your machines handle?
Sky Bluer’s wire drawing machines process input wire diameters from 8 mm down to 0.5 mm, depending on material and application. Multi-pass schedules distribute the reduction evenly to maintain dimensional accuracy and surface quality. Round-to-round machines typically use 5–12 passes, while flat or profile forming machines use 3–8 passes, with precise tension and speed control to prevent wire breakage, spring-back, or surface scratches. Our engineers customize reduction ratios, pass numbers, and lubrication strategies for each production line, ensuring optimized throughput while maintaining high-quality wire output.
How do you control edge radius and surface quality?
Post-rolling drawing machines maintain edge radius within ±0.01 mm using precision sizing dies and calibrated skin-pass setups. Servo-controlled tension systems stabilize wire feed, reduce vibration, and minimize surface defects. Controlled lubricant flow and optimized drawing speeds prevent micro-scratches, ensuring consistent surface finish. This level of precision is critical for flat, trapezoidal, or specialty profile wires used in EV motors, transformers, and enameled wires, where tight winding tolerances are required.
Can your machines handle different wire materials?
Yes, the machines support copper, aluminum, and selected alloys. Material-specific adjustments include die material, lubrication type, per-pass reduction ratio, and wire tension. Aluminum requires slightly higher lubrication and careful tension control to avoid surface scratches, while copper benefits from multi-pass drawing that reduces work hardening without sacrificing throughput. The machines dynamically adapt to material properties such as conductivity, hardness, and ductility to maintain consistent diameter, edge quality, and surface finish.
How do your machines integrate with a complete production line?
Wire drawing machines integrate seamlessly with upstream precision rolling mills and downstream inline annealing furnaces, Turks head systems, and automated take-up units. Speed, tension, and pass reduction synchronize across the production line, ensuring continuous operation, minimal wire breakage, stable surface finish, and precise dimensional control. Real-time monitoring allows automatic adjustments to tension and speed, maintaining consistent performance even at high drawing speeds up to 60 m/s.
How is the reduction ratio optimized for high-speed drawing?
Engineers calculate per-pass reduction ratios based on wire material properties, target diameter, and surface finish requirements. Multi-pass drawing evenly distributes strain to reduce internal stress and spring-back. Servo-controlled speed and tension systems maintain precise diameter control and consistent edge geometry throughout the drawing process. By optimizing pass sequences and reduction per pass, machines achieve high-speed production without compromising surface quality or dimensional accuracy.
How do you customize machines for flat, rectangular, or trapezoidal wires?
For specialty profiles, Sky Bluer designs custom dies, guides, and pass sequences to ensure dimensional stability, edge integrity, and surface finish. Wire tension, speed, and reduction per pass are precisely controlled to maintain conductor geometry for high-performance applications, such as EV motor hairpins, transformer windings, or specialty magnet wires. Die material and lubrication strategies are tailored to each wire type, ensuring consistent quality, productivity, and reliable integration into complete production lines.
