Introduction: Understanding the Manufacturing Process of Spring Steel Flat Wire

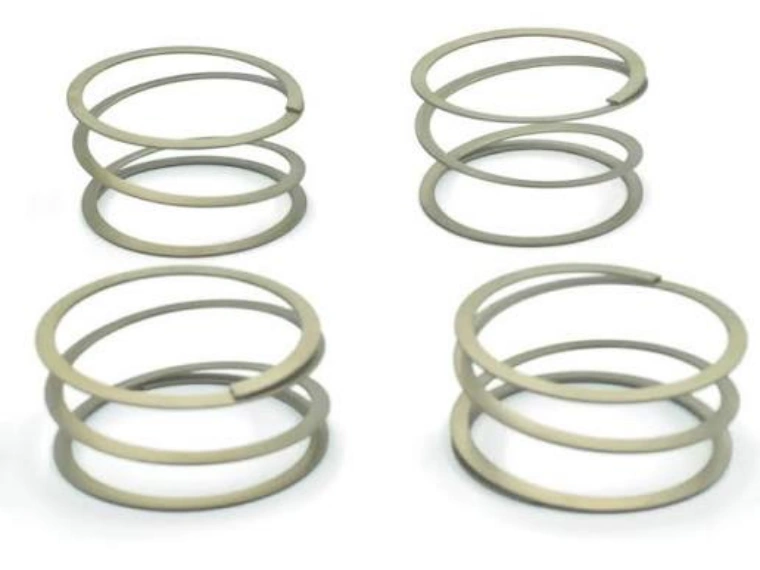

Spring steel flat wire is widely used in automotive springs, mechanical components, electrical contacts, and precision industrial applications due to its excellent strength, elasticity, and fatigue resistance.
However, producing high-quality flat wire from round spring steel wire requires a carefully controlled manufacturing process.
Unlike simple wire flattening, precision spring steel flat wire production involves multiple stages to achieve:
- Accurate thickness and width
- Stable mechanical properties
- Smooth surface quality
- Consistent coil shape
Materials such as SAE9254, SAE1095, 60Si2Mn, 50CrV4, and SUP10 require precise forming technology because of their high strength and deformation resistance.
A complete production line normally includes:
- Raw material preparation
- Wire pay-off
- Straightening
- Precision rolling
- Online measurement
- Surface treatment
- Final winding
Sky Bluer Environmental Technology Co., Ltd. (CRM) provides complete precision rolling solutions for spring steel flat wire manufacturing, helping customers achieve stable and efficient production.
Raw Material Preparation
The first step in spring steel flat wire production is selecting suitable round wire material.
The raw material quality directly influences the final flat wire performance.
Important factors include:
| Parameter | Importance |
| Material grade | Determines mechanical properties |
| Wire diameter | Affects rolling reduction |
| Surface condition | Influences final quality |
| Hardness condition | Determines forming requirements |
Common spring steel materials include:
| Material | Application |
| SAE9254 | Automotive suspension springs |
| SAE1095 | Precision flat springs |
| 60Si2Mn | Industrial springs |
| 50CrV4 | Heavy-duty applications |
| SUP10 | High-performance springs |
Before production, manufacturers usually inspect:
- Material certificate
- Surface defects
- Dimensional tolerance
- Material consistency
Pay-off and Wire Feeding System
The pay-off system provides continuous and stable material supply to the rolling line.
For precision flat wire production, feeding stability is essential because fluctuations in tension may affect the final dimensions.
The pay-off system normally includes:
- Coil support
- Tension control
- Wire guiding device
- Safety protection system
A stable feeding process helps:
- Reduce wire deviation
- Improve rolling stability
- Maintain consistent product quality
Straightening Process
Before rolling, round spring steel wire usually requires straightening.
The purpose of straightening is to remove:
- Initial bending
- Coil memory
- Feeding deformation
A high-quality straightening process improves:
| Benefit | Effect |
| Better alignment | More stable rolling |
| Reduced vibration | Improved accuracy |
| Uniform feeding | Better surface quality |
For high precision spring wire applications, straightness before rolling has a direct impact on the final flat wire geometry.

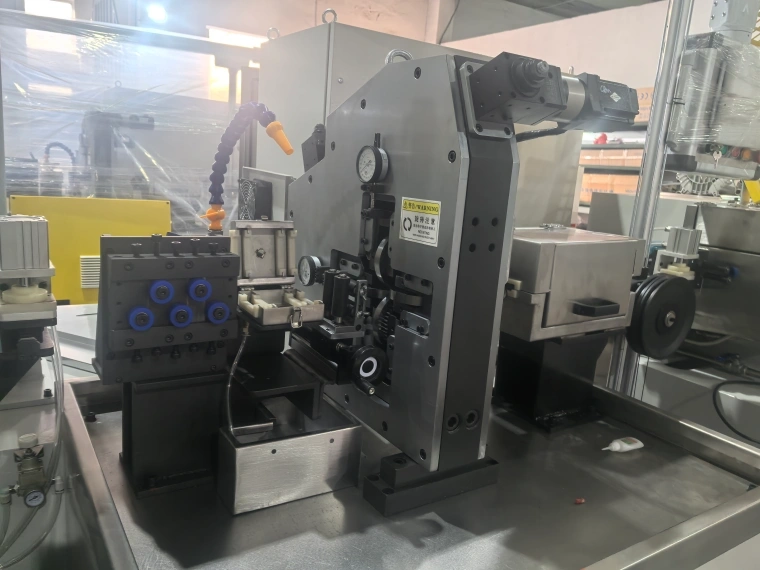

Precision Rolling Process
Precision rolling is the core step of spring steel flat wire manufacturing.
During this process, round wire is gradually reduced and formed into flat or rectangular profiles.
The rolling process must carefully control:
- Reduction ratio
- Rolling force
- Roll gap
- Rolling speed
Typical production parameters:
| Parameter | Typical Range |
| Input wire diameter | 2–12 mm |
| Finished width | 1–30 mm |
| Finished thickness | 0.3–8 mm |
| Thickness tolerance | ±0.005–0.02 mm |
| Production speed | 30–350 m/min |
For different applications, manufacturers may select different rolling systems.
Two-Roll Precision Rolling
Suitable for:
- Standard flat wire
- Medium accuracy products
- High production efficiency
Four-Roll Turks Head Rolling
Suitable for:
- Precision rectangular wire
- Automotive spring components
- High accuracy applications
Advantages:
- Better profile control
- Improved edge quality
- Higher dimensional stability
Multi-Pass Rolling
For high-strength spring steel materials, multiple rolling passes are often used.
Benefits:
- Lower forming stress
- Reduced cracking risk
- Better material flow
- Improved surface quality
Online Measurement and Quality Inspection
Modern spring steel flat wire production increasingly uses online inspection technology.
Laser measuring systems continuously monitor:
- Thickness
- Width
- Profile accuracy
The measured data can be connected with closed-loop control systems to automatically adjust:
- Roll gap
- Rolling parameters
- Production conditions
Advantages:
- Real-time quality control
- Reduced material waste
- Higher production consistency
- Lower operator dependency
Surface Treatment and Final Processing
Depending on customer requirements, additional processes may be required after rolling.
Possible processes include:
- Cleaning
- Surface polishing
- Heat treatment
- Protective treatment
The purpose is to improve:
- Surface performance
- Corrosion resistance
- Fatigue life
Coil Winding and Finished Product Handling
The final winding process determines the quality of the finished coil.
A reliable take-up system provides:
- Constant winding tension
- Uniform coil shape
- Easy transportation
- Reduced deformation
Finished flat wire coils should be protected from:
- Mechanical damage
- Surface scratches
- Excessive bending
Complete Spring Steel Flat Wire Production Line
A complete production line integrates all processes together.
| Process Stage | Main Function |
| Pay-off | Stable material feeding |
| Straightening | Remove wire bending |
| Precision rolling | Form flat wire profile |
| Laser measurement | Control dimensions |
| Surface treatment | Improve quality |
| Take-up | Produce finished coils |
An integrated production line improves:
- Production efficiency
- Product consistency
- Process stability
- Manufacturing flexibility
CRM Precision Rolling Solution for Spring Steel Flat Wire
Sky Bluer Environmental Technology Co., Ltd. (CRM) specializes in customized precision rolling systems for spring steel flat wire manufacturing.
CRM provides:
| Solution | Function |
| Precision Rolling Mill | High accuracy forming |
| Four-roll Turks Head System | Precision profile control |
| Rolling Cassette | Stable roll adjustment |
| Laser Measuring System | Online inspection |
| Complete Production Line | Integrated manufacturing |
By combining advanced mechanical design, automation technology, and process experience, CRM helps manufacturers produce high-quality flat wire for demanding spring applications.
FAQ
1. What is the main process for producing spring steel flat wire?
The main process includes pay-off, straightening, precision rolling, online measurement, surface treatment, and coil winding.
2. Why is precision rolling important for spring steel wire?
Because spring steel has high strength, precision rolling helps control deformation and maintain accurate dimensions.
3. Which rolling mill is suitable for automotive spring wire?
Four-roll Turks Head rolling systems are commonly used for high-precision automotive spring applications.
4. What accuracy can spring steel flat wire achieve?
Depending on material and equipment configuration, thickness tolerance can reach approximately ±0.005–0.02 mm.
5. Why is online measurement used in flat wire production?
It provides real-time quality monitoring and helps maintain stable production accuracy.
6. Does CRM provide complete flat wire production lines?
Yes. CRM provides customized rolling mills, measurement systems, and complete flat wire production solutions.
Conclusion
The production of spring steel flat wire requires precise control throughout every manufacturing stage, from raw material preparation and wire feeding to precision rolling, online inspection, and final coil winding.
A complete and well-controlled production process ensures:
- Accurate dimensions and consistent tolerances
- Excellent surface quality and edge performance
- Stable production efficiency and reduced material waste
- Reliable spring performance for demanding applications
With advanced precision rolling technology, intelligent control systems, and customized equipment solutions, manufacturers can achieve higher quality standards and more efficient flat wire production.
Sky Bluer Environmental Technology Co., Ltd. (CRM) provides complete precision rolling solutions for spring steel flat wire manufacturing, including precision rolling mills, four-roll Turks Head rolling systems, rolling cassettes, online laser measuring systems, and integrated production lines.
By combining professional engineering experience with innovative forming technology, Sky Bluer Environmental Technology Co., Ltd. supports global manufacturers in producing high-quality spring steel flat wire for automotive, industrial, and precision applications, helping customers improve production stability, product reliability, and long-term manufacturing competitiveness.
