Introduction
Precision flat wire production rarely depends on a single rolling pass.
When round wire is transformed into a rectangular or flat profile, the material must undergo controlled deformation to achieve the required:
- Thickness
- Width
- Cross-sectional shape
- Edge condition
- Surface quality
- Dimensional tolerance
This is why multi-pass rolling is widely used for precision flat wire manufacturing.
Instead of attempting to achieve the final dimension in one heavy reduction, the total deformation is distributed across several rolling passes.
A properly designed pass schedule allows manufacturers to control material flow, rolling force, work hardening and dimensional accuracy throughout the production process.
For high-strength materials such as spring steel, the pass schedule becomes especially important because excessive deformation in a single pass can increase the risk of:
- Edge cracking
- Surface defects
- Excessive work hardening
- Dimensional instability
- Wire breakage
Therefore, multi-pass rolling is not simply a method of reducing wire size.
It is a process engineering strategy for controlling material deformation from input wire to finished flat wire.
Sky Bluer Environmental Technology Co., Ltd. (CRM) develops customized precision rolling systems and complete flat wire production lines based on material grade, input size, finished dimensions, tolerance and production requirements.
What Is Multi-Pass Flat Wire Rolling?
Multi-pass flat wire rolling means that the required total deformation is divided into multiple controlled rolling stages.
A simplified process can be represented as:
Round Wire → Pass 1 → Pass 2 → Pass 3 → Intermediate Flat Profile → Finishing Passes → Final Flat Wire
Each pass performs a specific amount of deformation.
The objective is to gradually transform the original cross-section while maintaining stable material flow.
For example, a round wire may need to be converted into a rectangular flat wire with a significantly smaller thickness and larger width.
Trying to complete the entire transformation in one pass could generate excessive rolling force and unstable material flow.
Multi-pass processing distributes the deformation and allows each stage to be optimized.
Why Is a Pass Schedule Necessary?
A pass schedule defines how the material is reduced from the initial size to the final size.
It determines:
- Reduction per pass
- Number of passes
- Intermediate dimensions
- Rolling sequence
- Final finishing conditions
A simplified example:
| Stage | Thickness | Width | Main Objective |
| Input | 2.00 mm round | — | Raw material |
| Pass 1 | — | — | Initial deformation |
| Pass 2 | — | — | Controlled width development |
| Pass 3 | — | — | Thickness reduction |
| Pass 4 | — | — | Profile stabilization |
| Finishing | Final | Final | Final dimensional control |
The exact values depend on the material, starting diameter, final dimensions and rolling equipment.
There is no universal pass schedule suitable for every product.
Understanding Reduction in Flat Wire Rolling
Reduction describes the amount of material removed or deformed during a rolling pass.
For thickness reduction, a basic calculation can be expressed as:
Thickness Reduction (%) = (h₀ − h₁) / h₀ × 100%
Where:
h₀ = thickness before rolling
h₁ = thickness after rolling
For example, if the material thickness changes from 2.00 mm to 1.60 mm:
Reduction = (2.00 − 1.60) / 2.00 × 100% = 20%
However, thickness reduction alone does not describe the complete deformation behavior of flat wire.
The material may simultaneously experience:
- Thickness reduction
- Width expansion
- Length elongation
- Cross-sectional shape transformation
Therefore, pass design must consider the entire material flow.
Total Reduction vs. Reduction Per Pass
Two concepts are particularly important.
Total Reduction
This represents the overall deformation between the starting material and the final product.
Reduction Per Pass
This represents how much deformation occurs during each individual rolling stage.
For example:
Initial Wire → 10% Reduction → 12% Reduction → 15% Reduction → 12% Reduction → Finishing Pass
The total deformation is distributed across multiple stages rather than concentrated in one pass.
This approach can provide better control over:
- Rolling force
- Material flow
- Work hardening
- Edge formation
- Dimensional accuracy
Why Excessive Reduction in One Pass Can Be a Problem
Large single-pass reductions can create several challenges.
High Rolling Force
Greater deformation requires higher rolling force.
This increases the mechanical load on:
- Rolls
- Bearings
- Transmission system
- Machine frame
Uneven Material Flow
Large deformation can make it more difficult to maintain a stable rectangular profile.
Work Hardening
For cold-rolled spring steel, excessive deformation can rapidly increase hardness and reduce ductility.
Edge Cracking
High deformation combined with unsuitable material conditions can increase edge stress and cracking risk.
Dimensional Instability
Large deformation can make it more difficult to maintain precise width and thickness control.
This is why reduction must be engineered rather than simply maximized.
How to Design a Multi-Pass Rolling Schedule
A practical pass schedule generally considers several factors.
Material
The first consideration is the material grade.
Different materials have different:
- Yield strength
- Tensile strength
- Ductility
- Work-hardening behavior
- Deformation resistance
For example, high-carbon spring steel requires different process conditions from low-carbon steel or copper.
Input Size
The starting wire diameter determines the total amount of deformation required.
A larger input diameter may require more rolling passes to achieve the desired final dimensions.
Final Dimensions
The target width and thickness determine the final deformation ratio.
A product requiring a large width-to-thickness ratio may require more carefully controlled material flow.
Required Tolerance
A product requiring very tight dimensional tolerances normally needs dedicated finishing passes.
Rough deformation and final precision control should not necessarily be performed under the same conditions.
Roughing, Intermediate and Finishing Passes
A multi-pass process can be divided into three general stages.
Roughing Passes
The purpose is to remove a relatively large portion of the total deformation.
Main objectives:
- Rapid size reduction
- Stable material transformation
- Efficient production
Dimensional tolerance at this stage is generally less critical than at the finishing stage.
Intermediate Passes
The intermediate stage gradually moves the material toward the required profile.
Main objectives include:
- Width development
- Thickness reduction
- Profile stabilization
- Controlled work hardening
This stage provides a transition between heavy deformation and final precision rolling.
Finishing Passes
The final passes focus on:
- Final thickness
- Final width
- Edge geometry
- Surface quality
- Dimensional tolerance
Finishing passes should operate under highly stable conditions.
This is where precision roll design and online measurement become particularly important.
Width and Thickness Must Be Controlled Together
One of the biggest challenges in flat wire rolling is that thickness and width do not behave independently.
When thickness decreases, material may flow laterally and increase in width.
Therefore:
Thickness Reduction → Material Flow → Width Expansion → Final Profile
If the pass schedule only considers thickness, the final width may deviate from the target.
A good pass design therefore considers both:
- Thickness reduction
- Width development
This is especially important when producing narrow flat wire with tight width tolerances.
Cross-Sectional Area and Material Conservation
During rolling, the material is plastically deformed.
Ignoring small process effects, the cross-sectional area is approximately related to the deformation and elongation of the material.
A simplified relationship can be considered:
A₀ × L₀ ≈ A₁ × L₁
Where:
A₀ = initial cross-sectional area
L₀ = initial length
A₁ = final cross-sectional area
L₁ = final length
As the cross-sectional area decreases, the material generally becomes longer.
This is why rolling speed, tension and take-up speed must be coordinated with the deformation process.
This also connects directly with the tension-control principles.
Pass Schedule and Material Work Hardening
Cold rolling increases material strength through work hardening.
For spring steel, this can be beneficial because higher strength is often required.
However, excessive work hardening can reduce ductility and increase the risk of cracking.
A multi-pass process provides greater control over the accumulation of deformation.
Engineers can evaluate:
- Reduction per pass
- Total cold work
- Intermediate material condition
- Required finishing deformation
The objective is to achieve the required final mechanical and dimensional properties without creating excessive deformation stress.
This is closely related to Residual Stress Control in Cold Rolled Flat Wire Production.
Pass Schedule and Edge Quality
Edge quality is one of the most important characteristics of precision flat wire.
Poor pass design can create:
- Edge cracking
- Edge waviness
- Uneven edge radius
- Excessive edge deformation
The roll geometry must guide material flow in a controlled manner.
Factors include:
- Roll diameter
- Groove geometry
- Reduction per pass
- Material strength
- Width-to-thickness ratio
A well-designed pass schedule gradually establishes the final profile rather than forcing the material into the final geometry immediately.
Pass Schedule and Surface Quality
Surface quality can also be affected by the rolling schedule.
Potential problems include:
- Rolling marks
- Scratches
- Surface roughness variation
- Local deformation marks
The condition of the rolls is critical.
Precision rolls with suitable surface finish help reduce surface defects during finishing passes.
Rolling speed and lubrication conditions may also influence the final surface condition.
Therefore, the finishing stage should be designed with both dimensional accuracy and surface quality in mind.
Multi-Pass Rolling and Tension Control
Pass scheduling and tension control must be considered together.
During rolling, the material continuously moves through different deformation zones.
If tension is unstable:
- Material flow may change
- Rolling force may fluctuate
- Thickness may become unstable
- Wire breakage may occur
A coordinated system can include: Payoff → Rolling Passes → Dancer / Tension Control → Take-Up
Stable tension helps the rolling system operate under more predictable conditions.
For more information: Tension Control in Precision Flat Wire Rolling: Payoff, Dancer and Take-Up Systems.
Multi-Pass Rolling and Online Dimension Measurement
Modern precision rolling systems can integrate online measurement during production.
Typical measurement technologies include:
- Laser thickness measurement
- Laser width measurement
- Profile measurement
The system can continuously compare actual dimensions with target values.
A simplified process is: Rolling → Online Measurement → Actual Dimension → Compare With Target → Control / Adjustment → Stable Product
This allows manufacturers to detect dimensional deviations earlier than traditional offline sampling.
It also creates the foundation for closed-loop production. See: Closed-Loop Thickness Control Technology for Precision Rolling Mills
Example of a Multi-Pass Flat Wire Process
Consider a production requirement in which round steel wire must be converted into precision rectangular flat wire.
A general process could be:
Stage 1 — Payoff
The raw wire is released from the coil under controlled tension.
Stage 2 — Straightening
The wire is aligned before entering the rolling section.
Stage 3 — Initial Rolling
The round cross-section begins transforming into a flatter profile.
Stage 4 — Intermediate Rolling
Thickness decreases while width develops.
Stage 5 — Profile Control
The rectangular geometry becomes progressively closer to the target.
Stage 6 — Finishing Rolling
Final width and thickness are achieved.
Stage 7 — Online Measurement
The finished dimensions are continuously monitored.
Stage 8 — Take-Up
The finished flat wire is rewound into a controlled coil.
The actual number of passes depends on the specific material and product requirements.
How to Optimize the Number of Rolling Passes
More passes do not automatically mean better quality.
Too few passes may cause:
- Excessive deformation per pass
- High rolling force
- Edge cracking
- Poor profile control
Too many passes may cause:
- Lower production efficiency
- Increased equipment complexity
- Additional work hardening
- Higher production cost
The optimal number of passes is therefore a balance between:
Quality + Productivity + Material Behavior + Equipment Capability
The best solution depends on the complete process rather than a fixed number of passes.
Multi-Pass Rolling for Spring Steel Flat Wire
Spring steel flat wire is a particularly demanding application.
Materials such as:
- SAE1070
- SAE1095
- 60Si2Mn
- SUP10
may require carefully controlled cold deformation.
The rolling process must balance:
- Strength
- Ductility
- Dimensional accuracy
- Surface quality
- Residual stress
- Fatigue performance
For spring applications, the pass schedule should therefore be developed according to the material grade and final application.
A pass schedule designed for one spring steel grade should not automatically be transferred to another grade without process validation.
Troubleshooting Multi-Pass Rolling Problems
When defects appear, engineers should examine the complete pass schedule.
| Problem | Possible Cause | Potential Solution |
| Edge cracking | Excessive reduction | Reduce deformation per pass |
| Width deviation | Poor material flow | Optimize pass geometry |
| Thickness variation | Unstable roll gap | Improve control system |
| Surface defects | Roll condition | Inspect / improve roll surface |
| Wire breakage | Excessive tension or reduction | Optimize tension and reduction |
| Poor straightness | Uneven deformation | Review pass sequence and tension |
| Excessive work hardening | Too much cold deformation | Optimize total reduction distribution |
The correct solution should always be based on the actual material, equipment and production conditions.
CRM Precision Multi-Pass Rolling Solutions

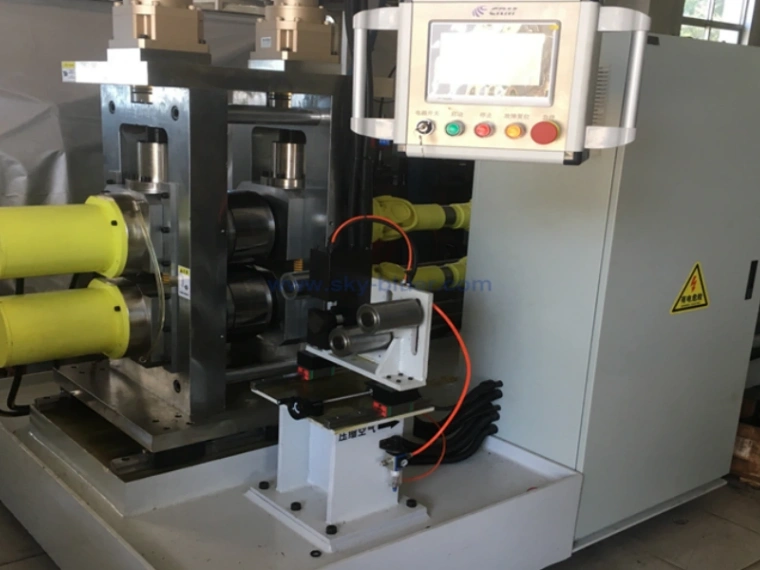

Sky Bluer Environmental Technology Co., Ltd. (CRM) develops customized precision rolling systems for:
- Spring steel flat wire
- Stainless steel flat wire
- Carbon steel flat wire
- Copper flat wire
- Alloy steel flat wire
- Precision shaped wire
Our engineering approach can integrate:
✓ Material analysis
✓ Pass schedule design
✓ Precision roll design
✓ Rolling mill selection
✓ Tension control
✓ Online laser measurement
✓ Servo adjustment
✓ PLC automation
✓ Take-up system
The objective is to create a complete production solution based on the customer’s:
- Input wire
- Material grade
- Final width
- Final thickness
- Dimensional tolerance
- Surface requirements
- Production speed
Rather than applying a standard machine configuration to every application, CRM develops the rolling process around the required finished product.
FAQ
1. What is multi-pass flat wire rolling?
Multi-pass flat wire rolling is a process in which the total deformation required to convert input wire into flat wire is distributed across several controlled rolling passes.
2. Why not produce flat wire in one rolling pass?
A single heavy reduction can generate excessive rolling force, unstable material flow, high work hardening and increased risk of edge cracking or wire breakage.
3. How is reduction per pass determined?
Reduction per pass depends on material grade, input size, final dimensions, rolling equipment, required tolerance and material deformation behavior.
4. Does more rolling passes always produce better flat wire?
No. Too few passes can create excessive deformation, while too many passes can reduce productivity and increase unnecessary work hardening. The optimum pass number must balance quality and efficiency.
5. How does pass schedule affect flat wire width?
As thickness decreases, material can flow laterally and increase in width. Therefore, pass design must control thickness reduction and width development together.
6. How does multi-pass rolling affect spring steel?
Controlled multi-pass rolling can distribute cold deformation and help manage work hardening, material flow and dimensional stability. The exact process depends on the spring steel grade.
7. How does tension control interact with pass scheduling?
Stable tension helps maintain predictable material flow through the rolling passes. Unstable tension can contribute to dimensional variation, wire breakage and uneven deformation.
8. Can online measurement be integrated into a multi-pass rolling line?
Yes. Online laser measurement can monitor thickness and width during production and provide data for process adjustment and closed-loop control.
Conclusion

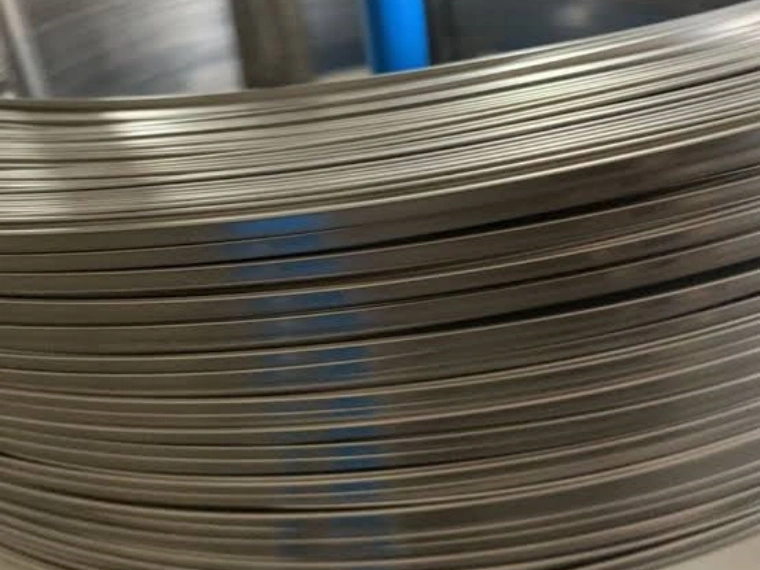

Multi-pass flat wire rolling is a controlled deformation process designed to transform round or other input wire into a precise flat profile.
The success of the process depends on the correct balance of:
- Total reduction
- Reduction per pass
- Pass sequence
- Material behavior
- Roll geometry
- Tension control
- Online measurement
For high-strength spring steel and other precision materials, distributing deformation across suitable rolling passes can improve material flow, dimensional stability and production reliability.
The goal is not simply to reduce the wire as quickly as possible.
The goal is to control the deformation at every stage until the required final geometry is achieved.
Sky Bluer Environmental Technology Co., Ltd. (CRM) provides customized precision rolling mills and complete flat wire production solutions, combining process engineering, precision tooling, tension control, online measurement and automation.
From round wire to precision flat wire — every pass matters.
