Johnson wedge wire screens are the backbone of filtration and separation systems across mining, chemical, and water treatment industries—relying on precise welding to deliver durability, corrosion resistance, and consistent performance. The CRM-2024-3 Johnson Wedge Wire Screen Welding Machine stands as a specialized solution engineered to meet these demanding requirements, combining high-precision cold rolling technology with robust welding capabilities. As a CE-certified industrial workhorse, it transforms diverse stainless steel materials into triangular, wedge, and V-profile wire screens, ensuring ±0.001mm tolerance and reliable operation in harsh industrial environments. In this comprehensive guide, we’ll dive into its technical specifications, core features, working principle, and why it’s the preferred choice for critical filtration applications.
What Is a Johnson Wedge Wire Screen Welding Machine?

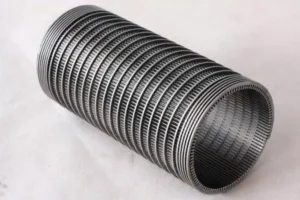

A Johnson wedge wire screen welding machine is a precision-engineered industrial device designed to fabricate wedge wire screens—honeycomb-structured filters composed of V-shaped (wedge) wires welded to support bars. Unlike traditional woven screens, wedge wire screens offer superior strength, uniform slot sizes, and resistance to clogging, making them indispensable for applications like oilfield sand control, water purification, and chemical processing . The CRM-2024-3 model elevates this technology with cold rolling integration, enabling one-stop production from raw wire to finished screen—eliminating the need for separate shaping and welding equipment. It’s specifically optimized for Johnson-style screens, where the wedge wire’s apex is fused to support bars via resistance welding, creating a seamless, durable bond that withstands high pressure and corrosive media .
Core Technical Specifications of CRM-2024-3
The CRM-2024-3 is built for versatility and precision, with specifications tailored to meet global industry standards (national, American, German):
- Material Compatibility: Processes a wide range of stainless steels, including 302, 304, 304L, 316, 316L (ideal for corrosive environments), and duplex grades like F51 (2205) and F53 (2507). It also accommodates specialty alloys such as 904L, 321, and 1.4462, as well as round steel, square steel, and steel pipes (input size ≤10mm) .
- Output Dimensions: Produces screen wires in standard sizes (width×height): 2.2×3.0mm, 2.3×3.0mm, 2.3×3.5mm, 3.0×5.0mm, with 3.8mm support bars. Custom dimensions are available to match specific application needs.
- Precision & Speed: Achieves an industry-leading tolerance of ±0.001mm (customizable for tighter requirements) and operates at 30-350 m/min—enabling high-volume production without compromising quality .
- Configuration Options: Supports single-stage or tandem wire flattening/shaping lines, with press-down models available in automatic or manual control. Take-up units include single spool, dual spool, automatic, portal, and traverse designs, plus cut-to-length functionality.
- Key Components: Equipped with vertical shaft/table-type pay-off machines (for carriers, bundles, or reels), tandem rolling lines, customized wire guide devices, laser measuring systems (for real-time dimensional monitoring), and central lubrication systems (extending roller lifespan) .
Standout Features of CRM-2024-3
What sets the CRM-2024-3 apart from conventional welding machines is its integration of precision, durability, and user-centric design:
1. Superior Welding Performance & Strength
The machine uses resistance fusion welding to bond wedge wire apexes to support bars, controlling current, timing, and pressure to create welds with tensile strength matching the base material . This ensures the screen can withstand high flow rates, pressure drops, and mechanical stress—critical for mining and oilfield applications where screen failure leads to costly downtime. The welding process is tracked by a digital controller, maintaining consistent heat input to avoid material degradation (especially important for corrosion-resistant grades like 316L) .
2. CE-Certified Safety & Compliance
Meeting EN 60974-1 (welding power safety) and EN 50199 (electromagnetic compatibility) standards, the CRM-2024-3’s CE certification guarantees compliance with EU safety and quality regulations . Safety features include emergency stop buttons, protective guards for moving parts, and anti-electromagnetic interference (EMI) design—reducing accident risks and ensuring stable operation alongside other factory equipment.
3. User-Friendly Operation & Durability
Crafted with high-strength steel frames and tungsten carbide rollers (polished to ≤0.001mm precision), the machine is built to withstand 24/7 industrial use . Its intuitive PLC interface allows operators to set welding parameters, adjust slot sizes, and monitor production in real time—minimizing training time and human error. Quick mandrel swaps and modular jigs reduce changeover time between screen specifications, boosting overall productivity .
4. Comprehensive After-Sales Support
CRM provides a holistic after-sales package, including machinery test reports, on-site maintenance and repair, video technical support, and free spare parts. For global customers, this ensures minimal downtime and long-term reliability—essential for critical production lines. The machine is also part of a complete rolling mill system, with CRM offering turnkey projects that include wedge wire rolling mills, drawing machines, and straightening/cutting equipment .
How the CRM-2024-3 Works: From Wire to Finished Screen
The machine’s integrated workflow streamlines wedge wire screen production into four key stages:
- Wire Preparation: Raw stainless steel wire (≤10mm) is loaded into the vertical shaft/table-type pay-off machine, which feeds it into the tandem rolling line. The wire is shaped into triangular, wedge, or V-profiles via cold rolling—enhancing strength without altering chemical composition .

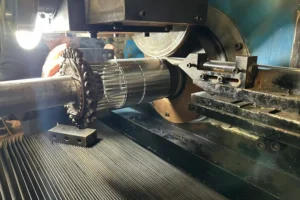

- Precision Welding: The shaped wedge wire is aligned with support bars (3.8mm standard) and fed into the welding unit. Resistance fusion welding bonds the wedge wire’s apex to the support bars at precise intervals, with servo-indexed mandrels ensuring consistent slot width (critical for filtration efficiency) .
- Real-Time Monitoring: A laser measuring system tracks dimensional accuracy throughout the process, sending data to the PLC for automatic adjustments. This closed-loop control maintains ±0.001mm tolerance and prevents defects like uneven welds or slot variations .
- Finishing & Collection: The welded screen is straightened, cut to length (via the integrated cut-to-length unit), and spooled or coiled for packaging. Post-welding passivation (per ASTM A380 guidelines) is optional for enhanced corrosion resistance .
Industrial Applications of CRM-2024-3
The CRM-2024-3’s versatility makes it indispensable across three high-demand industries:
- Mining: Produces screens for coal de-sliming, mineral processing, and drilling fluid purification—withstand abrasive materials and high-pressure washing .
- Chemical & Pharmaceutical: Fabricates corrosion-resistant screens (using 316L, 2205 duplex) for solvent filtration, catalyst separation, and chemical reactor systems .
- Water Treatment: Manufactures water filter tubes and well screens for municipal water purification, sewage treatment, and desalination—ensuring uniform flow and clog resistance .
- Oil & Gas: Creates sand control screens for oil wells, using 316L and 2507 duplex grades to resist harsh brines and high temperatures .
Why Choose the CRM-2024-3 for Johnson Wedge Wire Screens?
For manufacturers, the CRM-2024-3 offers three compelling advantages over conventional equipment:
- Cost Efficiency: Integrated cold rolling and welding eliminates the need for separate machines, reducing capital expenditure and floor space. High-speed operation (30-350 m/min) and minimal changeover time boost throughput by 30-50% .
- Quality Assurance: ±0.001mm tolerance and consistent weld strength meet industry standards like SY/T 5182-2008 (oilfield screens) and ISO 17824, reducing product defects and rework .
- Versatility: Compatibility with over 20 stainless steel grades and custom dimensions allows manufacturers to serve diverse customer needs—from standard water filters to specialty chemical processing screens.
Conclusion
The CRM-2024-3 Johnson Wedge Wire Screen Welding Machine is a precision-engineered solution that redefines wedge wire screen production. Its integration of cold rolling and welding technology, CE-certified safety features, and ±0.001mm tolerance make it ideal for mining, chemical, water treatment, and oil & gas industries. Backed by comprehensive after-sales support and turnkey project capabilities, it’s not just equipment—it’s a long-term investment in productivity, quality, and market competitiveness. Whether you’re producing standard filter tubes or custom specialty screens, the CRM-2024-3 delivers the precision, durability, and versatility needed to meet the most demanding industrial requirements.
