This wedge shaped wire production line is a custom precision rolling mill independently developed by Sky Bluer Environmental Technology Co., Ltd.
First launched in 2018 and fully upgraded in 2023, the machine features a rigid stable structure, outstanding running performance, innovative mechanical design and strong material compatibility. It is the ideal reliable forming solution for wedge profile wire used in industrial filtration and screening.
Production Line Configuration
Pay-off Machine → Tension Dancer Unit → Flattening Rolling Stand → Profile Turks Head Mill → Precision Wire Take-up Machine
The line is specially designed to process various stainless steel materials into standard wedge / V-shaped profile wire.
Equipped with PLC control, touchscreen HMI, servo drive system and precision automatic take-up, every motor speed is precisely synchronized to ensure stable, coordinated and smooth full-line operation. It is simple and safe to operate, greatly saving labor costs while significantly boosting production efficiency.
Profile Wire Screen – V-Wire Screen Specification
Surface Profile Wire
Size series: 10S, 11SL, 22S, 4S, 50SL
Available Materials:
304, 316 / 316L, Hastelloy, Monel, nickel‑titanium alloy and other stainless steel grades
Support Profile Wire
Size series: Q22, Q35, Q53, D56, D45
Available Materials:
304, 316 / 316L, Hastelloy, Monel, nickel‑titanium alloy and custom stainless steel alloys
Wedge Wire Screen Advantage

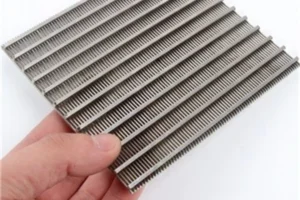

Wedge wire screen (V-wire screen) is manufactured by resistance welding V-shaped profile wire onto support rods.
Compared with traditional woven mesh, perforated plate and filter cloth:
- Smoother surface finish
- Anti-clogging structure
- Higher mechanical strength and structural stability
- Excellent durability and longer service life
Depending on working environment and material selection, wedge wire screens can achieve near lifetime service, reducing long-term replacement and operation costs.
Precision & Material Range
As a professional manufacturer and supplier of wedge shaped wire machines, TEAM CRM offers high-precision rolling capacity:
- Precision tolerance range: 0.001 inch (20 μm) up to 1/2 inch
- Common raw materials: 304, 316, 316L, 321 duplex stainless steel
- High-alloy options: 904L, Alloy 20, Hastelloy, Monel and more
Application Fields
Wedge shaped wire and V-wire screens are widely used for:
- Filtration equipment, centrifugal separators, dehydrators, vibrating screens
- River water & seawater intake filtration
- Retention of activated carbon, ion exchange resin, catalyst and filter media
- Solid-liquid separation, media retention, filtering, sizing, dewatering, collecting and distribution systems
Key Features of Wedge Wire Mesh
- Ultra-long service lifespan
- High hardness keeps slot dimension unchanged under abrasive working conditions
- Heavy load bearing capacity
- Smooth, flat and defect-free surface
