Wire flattening is a precision cold rolling technique that transforms round or specialty-shaped wires into flat strips, squares, wedges, rectangles, or custom profiles—enabling manufacturers to tailor wire characteristics for diverse industrial needs. Unlike hot working processes that risk material degradation, cold wire flattening preserves the metal’s grain structure while enhancing strength, surface quality, and dimensional accuracy . This process has become indispensable in modern manufacturing, powering critical components across automotive, electronics, aerospace, and medical sectors. As a leader in wire processing equipment, Sky Bluer Environmental Technology Co., Ltd. (CRM brand) delivers cutting-edge wire flattening machines that combine efficiency, precision, and reliability—setting industry standards for cold rolling technology. In this comprehensive guide, we break down the wire flattening process, key applications, materials, and how to choose the right equipment partner.
What Is Wire Flattening? An Overview

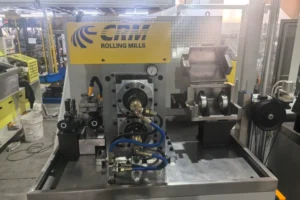

At its core, wire flattening is a controlled plastic deformation process that reshapes wire cross-sections without altering the material’s fundamental properties . Using precision rolling mills (such as CRM’s 2Hi rolling machines), the process applies gradual pressure to wire materials, converting round wires into flat or custom profiles with tight tolerances and consistent mechanical performance . Unlike drawing-only methods that risk uneven deformation, wire flattening via multi-pass rolling ensures uniform thickness, smooth edges, and preserved grain structure—critical for high-performance applications .
Sky Bluer’s CRM wire flattening production lines integrate a complete workflow to deliver turnkey solutions: wire pay-off → straightening → tension control → precision rolling → tension adjustment → annealing → polishing → hot water washing → wire winding . This seamless integration eliminates intermediate handling, reduces material waste (to ≤2%), and ensures consistent quality across large production batches .
Key Industries Relying on Flattened Wire
Flattened wire’s versatility—combining strength, precision, and customizability—makes it essential for six high-demand industries:
1. Automotive Industry
Flattened wire is used for precision components like springs, electrical connectors, door hinges, and sliding door rails . Automotive applications require tight tolerances (±0.005mm) and high tensile strength (520-800 MPa) to withstand harsh operating conditions . CRM’s wire flattening machines produce 304 stainless steel and high-carbon steel flat wire that meets IATF 16949 automotive standards, ensuring durability and reliability .
2. Electronics & Renewable Energy
Copper and oxygen-free copper flattened wire delivers enhanced electrical conductivity, making it ideal for circuit boards, PV ribbons, PV busbars, and transformer windings . The electronics sector demands ultra-thin profiles (0.01-0.5mm thickness) and burr-free surfaces (Ra ≤0.8μm) to prevent short circuits . Sky Bluer’s CRM-96 copper wire flattening machine specializes in this niche, producing flat wire with ±0.0005mm precision .
3. Aerospace Industry
Aerospace components require lightweight, high-strength flattened wire that resists corrosion and extreme temperatures . Titanium, nickel, and 316L stainless steel flattened wire is used for aircraft structural parts, engine components, and avionics . CRM’s wire flattening machines meet AS9100 aerospace standards, delivering profiles with edge radii (0.2-1.5mm) that prevent stress concentration .
4. Medical Industry
Hygienic, corrosion-resistant flattened wire (304/316L stainless steel) is critical for medical instruments, surgical tools, and implantable devices . The process must adhere to strict cleanliness and biocompatibility standards, with no surface defects or contamination . Sky Bluer’s machines incorporate food-grade lubricants and post-processing polishing to meet these requirements .
5. Construction Industry
Flattened wire reinforces structures, creates durable fasteners, and manufactures window fittings and lock components . High-carbon steel and 430 stainless steel flattened wire offer the strength (tensile strength ≥400 MPa) and corrosion resistance needed for outdoor applications . CRM’s multi-pass rolling mills produce flat wire in widths 6-50mm and thicknesses 1.5-8.0mm, tailored to construction specifications .
6. Furniture & Hardware
Flattened wire is used for sofa springs, clips, and decorative hardware—requiring consistent edge quality and surface finish . Sky Bluer’s equipment controls edge radius (0.3-0.8mm) to improve assembly safety and reduce secondary polishing costs .
Materials Used in Wire Flattening
Wire flattening accommodates a range of metals, each selected for properties matching application needs:
| Material | Key Properties | Typical Applications |
| Low/High Carbon Steel | High strength, durability, cost-effectiveness | Construction fasteners, automotive springs, furniture clips |
| 304/316L Stainless Steel | Corrosion resistance, hygiene, biocompatibility | Medical instruments, food processing equipment, aerospace components |
| Copper/Oxygen-Free Copper | Excellent electrical conductivity, malleability | Electronics, PV ribbons, transformer windings |
| Brass | Good conductivity, corrosion resistance, aesthetic appeal | Connectors, decorative hardware, musical instruments |
| Titanium/Nickel Alloys | High-temperature resistance, corrosion resistance | Aerospace engine parts, chemical processing equipment |
Sky Bluer’s CRM wire flattening machines process all these materials, with customizable rolling parameters to optimize deformation for each metal’s unique properties .
Step-by-Step Wire Flattening Process
The wire flattening process involves five critical stages, each optimized for precision and consistency—leveraging Sky Bluer’s advanced CRM technology:
1. Wire Preparation & Pre-Treatment
- Raw Material Selection: High-quality round wire is chosen based on the finished product’s specifications (e.g., diameter, material). The raw wire diameter is calculated to ensure the desired flattening ratio (e.g., 15:1 width-to-thickness for electronics wire) .
- Cleaning: The wire is cleaned to remove dirt, oil, and oxide layers—preventing surface defects during rolling. Sky Bluer’s machines integrate ultrasonic cleaning for critical applications like medical or electronics wire .
- Annealing (If Needed): Brittle materials (e.g., work-hardened steel) undergo annealing to restore ductility, making them easier to deform without cracking . CRM production lines offer optional inline annealing systems for seamless processing .
2. Initial Drawing (Diameter Adjustment)
If the raw wire diameter exceeds the required input size, an initial drawing step reduces it to the optimal dimension. Sky Bluer’s wire drawing machines work in tandem with flattening mills, ensuring precise diameter control (±0.01mm) to prepare the wire for rolling . This step eliminates material waste and ensures uniform deformation during flattening.
3. Precision Rolling & Flattening
The core of the process, this stage uses CRM’s 2Hi rolling mills (two horizontally positioned, hardened steel rollers) to reshape the wire. Key details:
- Multi-Pass Rolling: The wire passes through multiple rolling stands with gradually reducing gaps—each pass compressing the wire by 15-25% to form the desired flat profile . This gradual deformation preserves grain structure and prevents edge “ears” .
- Roller Technology: Rollers are made from carbide steel or sintered metal, polished to ≤0.001mm precision, and driven by servo motors for consistent pressure control .
- Custom Profile Shaping: Beyond flat wire, CRM machines produce square, wedge, and rectangular profiles by adjusting roller geometry—catering to specialized applications like filtration screens and aerospace components .
4. Online Monitoring & Quality Control
Sky Bluer’s CRM machines integrate state-of-the-art laser measurement technology to ensure real-time precision:
- Dual-Axis Measurement: Laser gauges simultaneously measure width and thickness with ±0.0005mm accuracy, scanning 850 times per second .
- Closed-Loop Control: Measurement data is fed to the PLC system, which automatically adjusts roller gap and tension to correct deviations—maintaining tolerances within ±0.005mm .
- Surface Inspection: Optional vision systems detect surface defects (scratches, burrs) and trigger automatic alerts, reducing defective products by 90% .
5. Post-Processing: Enhancing Performance
Post-processing treatments tailor flattened wire to specific application requirements. Sky Bluer offers customizable solutions:
- Annealing: Restores ductility and reduces residual stress, critical for high-fatigue applications like automotive springs .
- Polishing: Achieves smooth surface finishes (Ra 0.8-3.2μm) for medical instruments and decorative hardware .
- Coating/Passivation: Applies galvanizing, passivation, or polymer coatings to enhance corrosion resistance—ideal for outdoor or chemical-exposed components .
- Hot Water Washing: Removes lubricant residues, ensuring cleanliness for electronics and medical applications .
Choosing the Right Wire Flattening Machine Manufacturer
Selecting a reliable equipment partner is critical to achieving consistent quality, efficiency, and long-term cost savings. Sky Bluer Environmental Technology Co., Ltd. (CRM brand) stands out as a trusted leader for three key reasons:
1. Cutting-Edge Technology & Precision
- Advanced Machinery: CRM wire flattening machines (e.g., CRM-96, 2Hi rolling mills) feature PLC automatic control, servo synchronization, and closed-loop tension adjustment—ensuring repeatable results .
- Tolerance Capability: Delivers ±0.0005mm precision for ultra-fine wire and ±0.05mm for structural applications, meeting global industry standards (ISO 9001, CE) .
- Production Capacity: CRM-2026-SD models achieve 500-800 kg/hour output, suitable for medium-to-high-volume production .
2. Competitive Pricing & Cost-Efficiency
As a China-based manufacturer with in-house R&D and production, Sky Bluer eliminates middlemen, offering high-quality machines at competitive prices. Its equipment reduces operational costs by:
- Minimizing material waste (≤2%)
- Lowering energy consumption (15-30% less than conventional machines)
- Reducing maintenance downtime (centralized lubrication systems and durable carbide rollers)
3. Comprehensive Support & Expertise
- Turnkey Solutions: Sky Bluer provides complete production lines, from pay-off to winding, tailored to customer needs .
- After-Sales Service: Includes on-site installation, operator training, 24/7 technical support, and free spare parts for 1 year .
- Industry Experience: 10+ years specializing in wire flattening equipment, with clients across automotive, electronics, and aerospace sectors—offering application-specific expertise .
Why Sky Bluer (CRM) Is the Preferred Choice
Sky Bluer Environmental Technology Co., Ltd. prides itself on innovation and quality. Its CRM brand wire flattening machines are engineered with:
- Customizable rolling parameters for diverse materials and profiles
- Advanced laser measurement and closed-loop control for unmatched precision
- Durable components (carbide rollers, sealed bearings) for 10+ years of service life
- Compliance with industry-specific standards (IATF 16949, AS9100, ISO 13485 for medical)
Whether you’re producing ultra-thin copper wire for electronics or heavy-duty steel flat wire for construction, Sky Bluer’s CRM machines deliver the efficiency, precision, and reliability needed to stay competitive in modern manufacturing.
Conclusion
The wire flattening process is a cornerstone of precision manufacturing, enabling the production of critical components across industries. From material preparation and multi-pass rolling to real-time quality control and post-processing, each step requires advanced equipment and expertise to ensure optimal results. Sky Bluer Environmental Technology Co., Ltd. (CRM brand) stands as a leader in this space, offering cutting-edge wire flattening machines that combine technical innovation, competitive pricing, and comprehensive support. By partnering with Sky Bluer, manufacturers gain access to turnkey solutions tailored to their unique needs—empowering them to produce high-quality flattened wire that meets the most demanding industry standards. As manufacturing evolves toward smarter, more efficient processes, Sky Bluer remains at the forefront, driving innovation in cold rolling technology.
