Overview

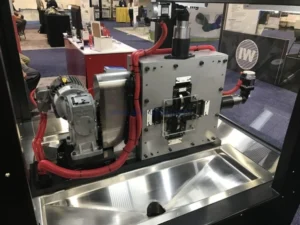

The Turks Head Rolling Machine is designed for high-precision flat and profile wire rolling from round wires. It is ideal for research and development, feasibility studies, and experimental production of new wire profiles. The machine accommodates a wide variety of materials, including stainless steel, brass, titanium, titanium-nickel alloys, copper, aluminum, and other ferrous and non-ferrous metals.
With its precision rolling capability, the Turks Head Rolling Machine ensures exceptional surface finish, dimensional accuracy, and consistency, making it suitable for both industrial production and experimental studies.
Product Specifications
| Feature | Specification |
|---|---|
| Brand | CRM |
| Model | CRM-2022-6 |
| Capacity | 200 Ton/Shift |
| Type | Cold Rolling |
| Shapes | Flat, Rectangular, Water-drop, Profile, Triangle, Wedge, R-angle |
| Width Range | 2.0–30 mm |
| Thickness Range | 0.5–25 mm |
| Tolerance | Thickness ±0.002 mm; Width ±0.005 mm |
| Design Speed | 30–350 m/min |
| Press-down Mode | Automatic or manual |
| Roll Material | Tool steel, sintered metal, or carbide steel |
| Roll Diameter | 40–200 mm |
| Roll Precision | <0.001 mm |
| Roll Drive | Double Servo |
| Optional Devices | Pay-off unit (spool or coiling), take-up unit (customized, cut-to-length, spool), wire guide device, laser measuring system, central lubrication system |
Features & Advantages
- High Precision: Capable of rolling flat, rectangular, profile, triangle, wedge, water-drop, and custom R-angle wires with minimal tolerance.
- Versatile Material Handling: Supports high-carbon, medium-carbon, low-carbon steels, stainless steel, titanium, titanium-nickel alloys, copper, aluminum, brass, and more.
- Experimental & R&D Friendly: Ideal for new project development and feasibility studies of different wire materials.
- Thermo-Mechanical Simulation: Enables simulation of rolling processes for optimized precision and product quality.
- Customizable Options: Rollers, pay-off/take-up units, wire guides, and laser measuring systems can be tailored to specific production requirements.
Applications
The Turks Head Rolling Machine serves a variety of industries, including:
- Textile Industry: High-precision reed wire production.
- Automotive & Mechanical Components: Special-shaped wire for springs, clips, and precision assemblies.
- Electrical & Electronics: Copper, aluminum, and alloy wire profiles for conductive applications.
- Aerospace & Advanced Materials: Titanium and titanium-nickel alloy wire for high-performance components.
About CRM Rolling
As a manufacturer of innovative high-tech rolling machines, CRM Rolling specializes in custom precision rolling mills for a wide range of wire geometries. Our machines are designed for maximum output, minimum downtime, and precise process control.
Using a combination of state-of-the-art machine technology and customer-focused design, CRM Rolling adapts our standard machines to meet specific project requirements, whether for research, feasibility studies, or industrial production.
Summary
The CRM Turks Head Rolling Machine is a reliable solution for high-precision flat and profile wire rolling. It combines versatility, accuracy, and advanced technology, making it an essential tool for R&D, special-shaped wire production, and experimental applications.
