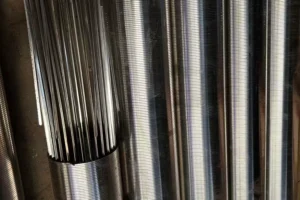

Stainless steel wedge wire—with its unique V-shaped profile—has become the gold standard for filtration and separation systems across water treatment, mining, food processing, and oil & gas industries. Its self-cleaning geometry, corrosion resistance, and structural integrity depend entirely on the precision of the manufacturing equipment. Developed by Sky Bluer Environmental Technology Co., Ltd. (2016 launch, 2024 upgrade), the CRM-2024 Stainless Steel Wedge Wire Making Machine is a state-of-the-art cold rolling solution engineered to transform stainless steel raw materials into triangular, wedge, and V-profile wires with unmatched accuracy. As a versatile, ISO-compliant industrial workhorse, it delivers the consistency and efficiency required for critical filtration applications. In this comprehensive guide, we’ll dive into its technical specifications, core features, working principle, and why it’s the preferred choice for global manufacturers.
What Is a Stainless Steel Wedge Wire Making Machine?
A stainless steel wedge wire making machine is a specialized industrial device that uses precision cold rolling to shape stainless steel round wire into V-shaped (wedge) or triangular profiles— the core component of slot weld filter screens . Unlike hot rolling (which can cause dimensional inconsistency and surface defects ), cold rolling at room temperature preserves the material’s corrosion resistance and mechanical strength while achieving ultra-tight tolerances . The CRM-2024 elevates this technology with a fully integrated production line—combining pay-off, tension control, flattening, profiling, and take-up units—to deliver end-to-end wedge wire manufacturing. Its output is used to produce filter tubes, screen cylinders, and panels that excel in liquid-solid separation, offering 15-65% higher open area than woven mesh or perforated plates . This translates to lower pressure drop, higher throughput, and reduced clogging for industrial processes .
Core Technical Specifications of CRM-2024
The CRM-2024 is designed for versatility, precision, and industrial-scale performance, with specifications aligned to ISO 2538-2:2014 (geometrical product specifications for wedges) :
- Material Compatibility: Processes a wide range of stainless steels, including 302, 304, 304L, 316, 316L (food-grade/corrosion-resistant), duplex grades like F51 (2205) and F53 (2507), and specialty alloys (904L, 321, 1.4462). It also accommodates stainless steel round steel, square steel, pipes, and ingots (input size ≤10mm) per national, American, and German standards .
- Shape & Size Range: Produces triangular, wedge, and V-profile wires with screen wire specifications (width×height): 2.2×3.0mm, 2.3×3.0mm, 2.3×3.5mm, 3.0×5.0mm (support bar: 3.8mm). Custom profiles and dimensions are available to meet unique application needs.
- Precision & Speed: Achieves an industry-leading tolerance of ±0.001mm (compliant with ISO 2538-2:2014 dimensional requirements ) with roller precision ≤0.001mm. Operates at 30-350 m/min, enabling high-volume production (e.g., 21,000 meters per hour at maximum speed) without compromising quality .

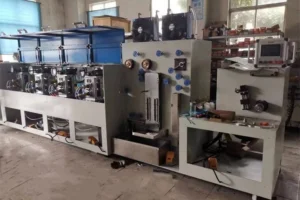

- Process Flexibility: Supports single-stage or tandem wire flattening/shaping lines, with automatic or manual press-down models. The integrated production line includes pay-off machines, tension control dancers, flattening rolling stands, profile turks head mills, and precision take-up units—eliminating the need for multiple standalone machines .
- Key Components:
- Pay-off Options: Vertical shaft, horizontal shaft, rim-driven, and spooler pay-offs—designed for carriers, bundles, or reels with integrated safety features .
- Rolling Stands: 3× two-roll driven stands (with emulsion cleaning systems) + 1× four-roll driven stand (driven upper/lower rolls, idle side rolls) for gradual, uniform shaping .

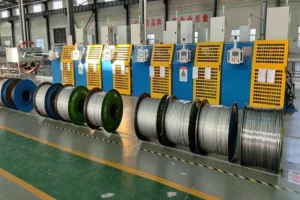

- Take-up Units: Single/dual spool, automatic, portal, gantry, and traverse designs—plus cut-to-length functionality for custom order requirements.
- Intelligent Add-ons: Customized wire guide devices, laser measuring systems (0.001mm resolution), and central lubrication systems.
Standout Features of CRM-2024 Wedge Wire Making Machine
The CRM-2024 distinguishes itself through a blend of precision engineering, durability, and user-centric design—key advantages that drive productivity for manufacturers:
1. Ultra-Precision Cold Rolling Technology
Cold rolling is critical for wedge wire performance, as it enhances tensile strength by 20-40% while maintaining dimensional stability . The CRM-2024 uses a multi-pass rolling strategy (15-20% deformation per pass) with tungsten carbide rollers (polished to Ra≤0.4μm) to ensure scratch-free surfaces. Each rolling stand features an emulsion cleaning system that removes suspended matter—preventing defects and extending roller lifespan . This precision aligns with ISO 2538-2:2014 tolerancing requirements , delivering wedge wires with consistent slot widths (critical for filtration efficiency) .
2. Versatile Profile & Material Processing
Unlike single-purpose machines, the CRM-2024 adapts to diverse production needs—processing stainless steel into triangular, wedge, and V-profiles for filter tubes, water filter cylinders, and screening panels. Its compatibility with corrosion-resistant grades (316L, 2205 duplex) makes it ideal for harsh environments (e.g., saltwater desalination, chemical processing ), while food-grade materials (304L) meet hygiene standards for food and beverage applications . The four-roll driven stand ensures precise shape control, even for complex wedge profiles with 50:1 width-to-thickness ratios .
3. High-Speed Operation & Efficiency
With a design speed of 30-350 m/min, the CRM-2024 outperforms conventional wedge wire machines (typical speed: 50-200 m/min). Key efficiency drivers include :
- Tandem rolling line configuration for continuous, uninterrupted production
- Quick-change tooling and modular jigs to reduce changeover time by 40%
- Central lubrication system with automatic oil level monitoring (minimizes downtime)
For manufacturers, this translates to 30-50% higher throughput—critical for meeting large-scale orders in water treatment and mining industries.
4. Intelligent Quality Control Systems
To ensure compliance with global standards, the CRM-2024 integrates advanced monitoring technologies:
- Laser Measuring System: Real-time dimensional inspection (0.001mm resolution) tracks width and thickness, sending data to the PLC for automatic adjustments .
- Emulsion Cleaning Systems: Each rolling stand removes contaminants to prevent surface defects, ensuring the wedge wire’s corrosion resistance isn’t compromised .
- Full-Process Traceability: Optional RFID integration records 300+ process parameters (speed, pressure, temperature) for compliance with ISO 9001 and food safety (HACCP) standards.
5. Durable Construction & Proven Reliability
Built for 24/7 industrial operation, the CRM-2024 features a high-strength steel frame and wear-resistant components. Its stable structure (refined in the 2024 upgrade) minimizes vibration during high-speed rolling, preserving precision. Key durability features include :
- Sealed bearings to prevent emulsion contamination
- Carbide steel rollers (service life 3× longer than tool steel alternatives)
- Integrated safety features (emergency stops, interlocks between machines) to meet CE compliance
How the CRM-2024 Works: Wedge Wire Production Process
The machine’s integrated workflow streamlines stainless steel wedge wire production into five key stages (aligned with industry best practices ):
- Wire Preparation: Stainless steel raw material (≤10mm) is loaded into the selected pay-off machine (vertical shaft for bundles, rim-driven for reels). A tension control dancer maintains consistent wire tension to avoid stretching or kinking.
- Flattening & Initial Shaping: The wire passes through three two-roll driven stands, each with an emulsion cleaning system. These stands gradually flatten the round wire while removing surface contaminants—preparing it for profiling.
- Precision Profiling: The pre-flattened wire enters the profile turks head mill and four-roll driven stand. Driven upper/lower rolls and idle side rolls shape the wire into the desired wedge, triangular, or V-profile. The PLC adjusts roller gap (automatic or manual) to achieve ±0.001mm tolerance .
- Real-Time Monitoring: The laser measuring system tracks dimensional accuracy continuously, sending data to the controller for dynamic adjustments. This closed-loop control ensures consistency across thousands of meters of wire.
- Take-Up & Finishing: The finished wedge wire is collected by the take-up unit (single/dual spool, portal, or traverse design) and can be cut to length per customer requirements. Optional passivation (per ASTM A380) enhances corrosion resistance for harsh environments.
Industrial Applications of CRM-2024
The CRM-2024’s precision and versatility make it indispensable across high-demand industries, where wedge wire’s unique properties solve critical filtration challenges:
- Water Treatment: Produces wedge wire for drinking water purification, wastewater treatment, and desalination. The V-profile’s self-cleaning design reduces clogging, while 316L/2205 duplex materials resist chlorides and chemicals .
- Mining: Manufactures screening panels for coal enrichment, mineral processing, and slurry dewatering. The wedge wire’s high mechanical strength withstands abrasive materials and high-pressure washing .
- Food Processing: Creates food-grade wedge wire (304L/316L) for juice filtration, chocolate refining, and microbrew beer processing. The smooth surface and tight tolerances ensure hygiene and consistent separation .
- Oil & Gas: Processes corrosion-resistant wedge wire (904L, 2507 duplex) for sand control screens, catalyst regeneration, and natural gas drying. The wire’s structural integrity withstands high temperatures and pressure .
- Chemical & Pharmaceutical: Fabricates filter tubes for chemical processing, polymer purification, and pharmaceutical manufacturing. The wedge wire’s chemical resistance and precise slot sizes ensure product purity .
Why Choose the CRM-2024 Wedge Wire Making Machine?
For manufacturers seeking a reliable, high-performance wedge wire solution, the CRM-2024 offers three compelling advantages:
1. Compliance & Quality Assurance
The machine meets ISO 2538-2:2014 (wedge wire dimensional standards) and ISO 9001 quality management requirements. Its ±0.001mm tolerance ensures the finished wedge wire performs consistently in critical applications—reducing product defects and rework .
2. Cost Efficiency & Scalability
The integrated production line eliminates the need for separate flattening, shaping, and cleaning equipment—reducing capital expenditure and floor space. High-speed operation (30-350 m/min) and minimal downtime enable manufacturers to scale production without sacrificing quality .
3. Customization & After-Sales Support
The CRM-2024 is fully customizable—from profile shapes and dimensions to pay-off/take-up configurations. Sky Bluer Environmental Technology Co., Ltd. provides comprehensive after-sales support, including:
- Machinery test reports and on-site installation guidance
- Lifetime technical consultation for process optimization
- Free spare parts and video technical support
- Turnkey project solutions (complete wedge wire production lines)
Conclusion
The CRM-2024 Stainless Steel Wedge Wire Making Machine is a precision-engineered solution that redefines wedge wire manufacturing. Its ultra-tight tolerance (±0.001mm), high-speed operation (30-350 m/min), and versatile profile processing make it ideal for water treatment, mining, food processing, and oil & gas industries. Backed by Sky Bluer’s 8+ years of expertise and 2024 design upgrade, this machine delivers consistent quality, operational efficiency, and long-term reliability—key drivers of competitive advantage in today’s industrial landscape. Whether you’re producing standard filter tubes or custom specialty screens, the CRM-2024 is designed to meet your unique needs and scale with your business.
