Introduction
Magnet wire is the core conductive material used in electrical energy conversion systems, including electric motors, transformers, generators, inductors, reactors, and various electromagnetic devices. As industries pursue higher energy efficiency, increased power density, and compact equipment designs, the performance requirements for magnet wire continue to become more demanding.
Traditional magnet wire production relies primarily on wire drawing processes to achieve final dimensions. However, modern electrical conductor manufacturing increasingly integrates precision rolling technology into the production chain. By combining rolling and drawing, manufacturers can achieve superior dimensional stability, improved conductor geometry, reduced eccentricity, and enhanced insulation coating consistency.
Precision Rolling and Drawing Solutions not only improves dimensional control but also optimizes conductor surface quality, which directly influences enamel adhesion, dielectric performance, and long-term reliability of electrical equipment. As a result, rolling and drawing integrated production lines have become a key technology for next-generation high-efficiency electrical conductors.
Magnet Wire Types and Application Requirements
Different electrical applications require different magnet wire constructions and insulation systems.
Common Magnet Wire Categories

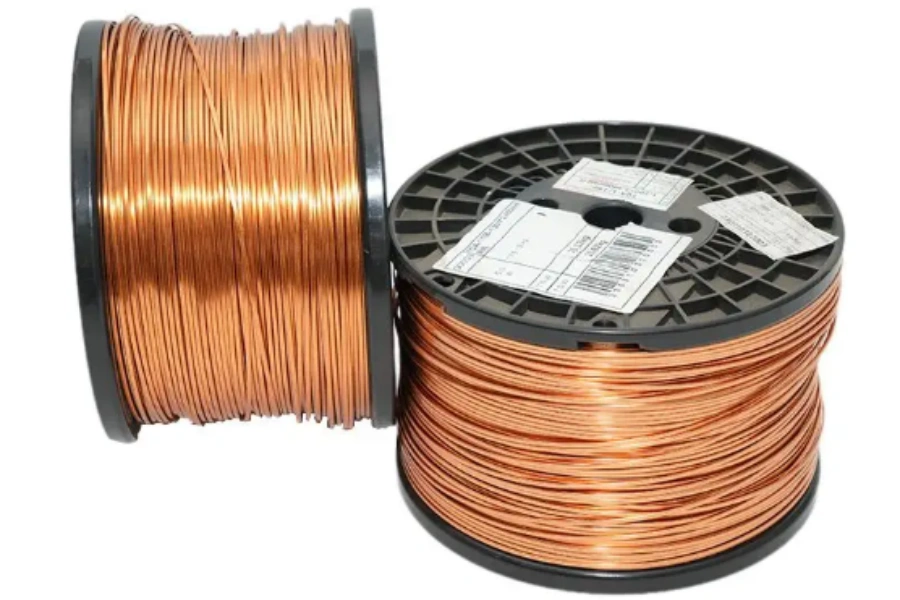

Enamelled Copper Wire (ECW)
The most widely used magnet wire for motors, transformers, and electromagnetic coils. A thin insulation layer is directly coated onto the copper conductor.
Polyester-Imide Magnet Wire
Designed for higher temperature resistance and improved chemical stability.
Typical applications include:
- Industrial motors
- Automotive electrical systems
- HVAC equipment
- High-speed generators
Self-Bonding Magnet Wire
Features a secondary bonding layer that allows adjacent turns to adhere during heating.
Commonly used in:
- Voice coils
- Precision electronics
- Medical devices
- High-frequency transformers
Paper Covered Magnet Wire
Widely used in oil-immersed and dry-type transformers where enhanced dielectric performance is required.
Electrical Performance Requirements
Modern electrical systems require stable electrical and thermal performance throughout the conductor lifecycle.
| Property | Typical Requirement |
| Conductivity | ≥100–101% IACS |
| Breakdown Voltage | 3–8 kV+ |
| Thermal Class | 130°C / 155°C / 180°C / 200°C |
| Insulation Uniformity | High consistency |
| Surface Defect Level | Near zero defects |
These requirements become increasingly critical in EV motors, renewable energy systems, and high-frequency power electronics.
Wire Geometry Evolution in Rolling and Drawing Systems
As motor and transformer efficiency standards continue to rise, conductor geometry is evolving beyond conventional round wire designs.
Traditional Round Wire
Round conductors remain common due to manufacturing simplicity and low production cost.
Advantages include:
- Easy winding
- Mature manufacturing process
- Broad equipment compatibility
However, round wire creates unused spaces between adjacent turns, limiting slot utilization.
Flattened Magnet Wire
Precision rolling enables slight conductor flattening while maintaining manageable winding characteristics.
Benefits include:
- Higher slot fill factor
- Improved heat transfer
- Reduced air gaps between conductors
- Better electromagnetic utilization
Precision Rectangular Wire
High-performance applications increasingly adopt rectangular conductors.
| Geometry Type | Width/Thickness Ratio | Typical Applications |
| Round Wire | 1:1 | Standard motors |
| Flattened Wire | 1.2–2.5 | High-efficiency motors |
| Rectangular Wire | 2–6 | EV motors, transformers |
| Special Profile Wire | Custom | Aerospace and advanced electrical systems |
Rectangular conductors can significantly improve winding density and reduce electrical losses in compact motor designs.
Manufacturing Process Integration
Modern magnet wire production lines combine multiple technologies into a continuous process.
Typical Production Flow
- Copper rod breakdown drawing
- Intermediate annealing
- Multi-stage fine drawing
- Precision micro-rolling
- Diameter and profile calibration
- Surface cleaning and preparation
- Enamel coating
- Thermal curing
- Online quality inspection
- Final winding and packaging
Why Rolling is Added Before Coating
Historically, rolling was mainly used for cross-section reduction.
Today, rolling serves a different engineering purpose:
- Geometry stabilization
- Concentricity improvement
- Surface defect reduction
- Edge conditioning
- Enhanced coating consistency
This shift has made rolling an essential process in premium magnet wire production.
Technical Challenges in Magnet Wire Production
Producing high-quality magnet wire requires precise control of both conductor geometry and surface condition.
Concentricity Deviation
Poor concentricity causes uneven insulation thickness after coating.
Potential consequences:
- Reduced dielectric strength
- Increased insulation stress
- Localized electrical failure
Edge Defects and Sharp Corners
Sharp edges create stress concentrations within insulation layers.
Common risks include:
- Micro-cracking
- Coating thinning
- Premature dielectric breakdown
Vibration Marks During High-Speed Drawing
At high production speeds, vibration can generate surface imperfections.
Effects include:
- Reduced enamel adhesion
- Visual defects
- Increased rejection rates
Surface Oxidation Before Coating
Copper oxidation directly affects coating quality.
Problems include:
- Poor insulation bonding
- Reduced curing consistency
- Lower long-term reliability
Thermal Instability During Annealing
Inconsistent annealing conditions can lead to:
- Diameter fluctuations
- Hardness variation
- Mechanical instability during winding
Engineering Solutions in Precision Rolling Systems
Modern rolling equipment incorporates advanced control technologies to address these challenges.
Ultra-Precision Roll Calibration
High-accuracy roll adjustment systems enable micron-level dimensional control.
Key features:
- Servo-driven adjustment
- Automatic wear compensation
- Temperature drift correction
Multi-Axis Alignment Technology
Rolling stands utilize precision alignment systems to maintain conductor symmetry.
Benefits include:
- Improved concentricity
- Stable deformation behavior
- Reduced edge defects
Low-Stress Deformation Rolling
Controlled reduction schedules minimize internal stress accumulation.
Advantages:
- Improved ductility
- Better winding performance
- Reduced crack formation risk
Integrated Surface Polishing Module
Specialized polishing systems are often integrated directly into the rolling line.
Functions include:
- Removal of micro-scratches
- Surface smoothing
- Oxide reduction
- Enhanced coating preparation
Closed-Loop Diameter Control
Modern production lines use:
- Laser diameter measurement
- Eddy current inspection
- Automatic feedback correction
These systems continuously monitor conductor dimensions and automatically adjust process parameters.
Typical Process Control Targets
| Parameter | Target Value |
| Diameter Tolerance | ±0.002–0.005 mm |
| Width Tolerance | ±0.005–0.01 mm |
| Surface Roughness | Ra ≤ 0.3 μm |
| Concentricity Error | ≤ 2–5 μm |
| Edge Radius Variation | ≤ ±0.02 mm |
Production Advantages
Integrating precision rolling into magnet wire manufacturing provides substantial performance benefits.
Improved Enamel Adhesion
Smoother conductor surfaces enable more uniform coating deposition and stronger insulation bonding.
Reduced Dielectric Failure Rate
Consistent conductor geometry helps maintain uniform insulation thickness throughout production.
Higher Motor and Transformer Efficiency
Optimized conductor shapes improve slot utilization and reduce electrical losses.
Better High-Speed Winding Compatibility
Stable dimensions reduce wire breakage and improve automatic winding performance.
Lower Material Waste
Enhanced process control minimizes scrap generation during both conductor production and coating operations.
Applications Across Electrical Industries
Precision rolled magnet wire is widely used in:
- EV traction motors
- Industrial motors
- Power transformers
- Renewable energy generators
- Inductors and reactors
- High-frequency transformers
- Aerospace electrical systems
- Medical equipment
- Consumer electronics
As electrification and energy efficiency standards continue to advance, demand for high-precision magnet wire production technology is expected to grow rapidly.
Conclusion
Magnet wire manufacturing has evolved from conventional wire drawing toward highly integrated rolling and drawing production systems. Precision rolling technology enables superior dimensional control, improved conductor geometry, and enhanced insulation coating performance, all of which contribute directly to electrical efficiency and long-term reliability.
By combining advanced rolling mills, intelligent process control, online inspection systems, and optimized surface preparation technologies, manufacturers can produce high-performance electrical conductors that meet the increasingly demanding requirements of modern motors, transformers, generators, and electrification systems.
These technological advancements are supported by Sky Bluer Environmental Technology Co., Ltd., helping enable higher manufacturing precision, improved production stability, and consistent quality in advanced magnet wire production systems.
