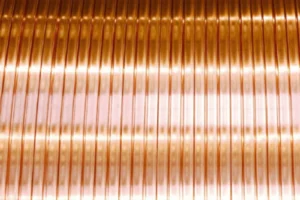

In the fast-paced world of electrical, electronics, and automotive manufacturing, the demand for high-quality flat copper wire continues to soar. Flat copper wire’s superior space utilization, enhanced conductivity, and efficient heat dissipation make it indispensable for motors, transformers, EV battery systems, and precision electronic components. At the heart of producing this critical material lies the copper wire flattening machine—a specialized piece of equipment designed to convert round copper wire into flat or rectangular profiles with unmatched precision and efficiency.
As a leading manufacturer of industrial wire processing equipment, Sky Bluer Environmental Technology Co., Ltd. (CRM brand) delivers copper wire flattening machines that redefine industry standards. This comprehensive guide explores the core value, technical features, applications, and selection criteria of copper wire flattening machines—helping manufacturers make informed decisions to elevate their production capabilities.
Why Copper Wire Flattening Machines Are Indispensable for Modern Industry
Traditional methods of flattening copper wire (such as forging or stamping) often result in inconsistent thickness, surface defects, and high material waste—failing to meet the strict requirements of today’s high-tech industries. Copper wire flattening machines, by contrast, leverage advanced cold rolling technology to deliver:
- Uniform Dimensional Control: Consistent thickness and width across the entire wire length, ensuring reliable performance in critical applications.
- Superior Surface Quality: Smooth, burr-free surfaces (Ra ≤0.4 μm) that eliminate the need for secondary polishing, reducing production time and costs.
- Enhanced Material Properties: Cold rolling refines the copper’s grain structure, boosting tensile strength (up to 350 N/mm²) and maintaining high electrical conductivity (≥98% IACS).
- High Production Efficiency: Line speeds up to 350 m/min and minimal waste (≤2%)—maximizing throughput and reducing raw material costs.
These advantages make copper wire flattening machines a must-have for manufacturers aiming to:
- Meet international standards (IEC 60317, GB/T 3114-2023) for flat copper wire.
- Scale production without compromising quality.
- Reduce energy consumption and environmental impact.
- Stay competitive in industries like automotive (EVs), renewable energy, and electronics.
Core Technical Features of Sky Bluer CRM Copper Wire Flattening Machines
Sky Bluer’s CRM copper wire flattening machines are engineered with industrial durability, precision, and user-friendliness in mind—incorporating state-of-the-art technology to address the unique challenges of copper wire processing. Below are the standout features that set our equipment apart:

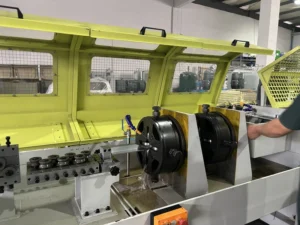

1. Precision Rolling System for Uniform Thickness & Width
- Roller Configuration: 3–6 rolling stands with tungsten carbide rollers (wear-resistant, polished to ≤0.001 mm precision) arranged in 2Hi or 4Hi setups. The 4Hi design is ideal for ultra-thin flat wire (≤0.1 mm) or high-strength copper alloys, ensuring minimal deflection during rolling.
- Dimensional Tolerance: Achieves thickness tolerance of ±0.005 mm and width tolerance of ±0.01 mm—meeting the strictest industry requirements for motors and transformers.
- Adjustable Rollers: Servo-driven roller gap adjustment (via PLC touchscreen) allows quick switching between wire sizes (thickness range: 0.1–3.5 mm, width range: 0.8–12.0 mm) without lengthy retooling.
2. Intelligent Control & Automation
- PLC Control System: Touchscreen interface with pre-programmed parameters for common copper grades (OFC, ETP) and wire dimensions—reducing operator training time by 50%.
- Real-Time Monitoring: Inline laser gauges (850 scans/second) track thickness, width, and flatness in real-time, automatically adjusting roller pressure to correct deviations.
- Tension Control: Dancer arm or load cell-based tension systems maintain stable tension (0.5–5 N) during feeding and rolling, preventing wire stretching or slack.
3. High-Speed & Energy-Efficient Operation
- Line Speed: Up to 350 m/min for continuous production, supporting high-volume output (up to 5 tons/day for standard models).
- Energy Savings: Variable frequency drives (VFD) and energy-efficient motors reduce electricity consumption by 15–30% compared to traditional flattening machines.
- Low Maintenance: Centralized lubrication system, sealed bearings, and wear-resistant rollers (service life 30% longer than standard tool steel) minimize downtime and maintenance costs.
4. Versatile Material Compatibility
- Copper Grades: Processes oxygen-free copper (OFC, ≥99.99% purity), electrolytic tough pitch (ETP) copper, and copper alloys (brass, bronze).
- Input Wire Specifications: Accepts round copper wire with diameter 0.5–10.0 mm, eliminating the need for pre-drawing in most cases.
- Post-Processing Adaptability: Compatible with inline annealing, cleaning, and insulation coating systems—enabling turnkey flat wire production.
5. Industrial-Grade Durability
- Frame Construction: Welded steel frame with vibration damping design, supporting 24/7 continuous operation in harsh industrial environments.
- Cooling System: Efficient oil or water cooling for rollers and motors, preventing overheating during long production runs.
- Safety Features: Emergency stop buttons, safety guards, and overload protection to ensure operator safety and equipment integrity.
Key Applications of Copper Wire Flattening Machines
Copper wire flattening machines are widely used across three high-growth industries, powering critical components and driving innovation:
1. Automotive Industry (EVs & Traditional Vehicles)
- Applications: Flat copper wire for EV motors, battery connectors, power electronics, and traditional vehicle ignition coils.
- Requirements: High current-carrying capacity, heat resistance, and compliance with IATF 16949 standards.
- CRM Advantage: Machines produce flat wire with tight tolerance (±0.005 mm) and high tensile strength (≥300 N/mm²), ideal for compact EV motor designs.
2. Electrical & Power Industry
- Applications: Flat copper wire for transformers (oil-immersed and dry-type), generators, and solar/wind inverters.
- Requirements: Low energy loss, uniform conductivity, and compliance with IEC 60317 standards.
- CRM Advantage: Smooth surface finish (Ra ≤0.4 μm) reduces skin effect, cutting power loss by 5–10% in high-frequency applications.
3. Electronics & Precision Engineering
- Applications: Flat copper wire for miniaturized electronic components, LED drivers, communication devices, and enameled magnet wire.
- Requirements: Ultra-precise dimensions, burr-free edges, and compatibility with insulation coating.
- CRM Advantage: Adjustable edge radius (0.1–0.3 mm) prevents insulation damage during winding, ensuring long-term reliability.
How to Choose the Right Copper Wire Flattening Machine
Selecting the optimal copper wire flattening machine requires evaluating five critical factors to align with your production needs:
1. Dimensional Requirements
- Target Thickness/Width: Ensure the machine can handle your desired flat wire dimensions (e.g., 0.3×2.0 mm for microelectronics, 3.0×10.0 mm for transformers).
- Tolerance Needs: Choose a machine with tolerance capabilities matching your application (±0.005 mm for high-precision electronics, ±0.02 mm for general industrial use).
2. Production Volume
- Low Volume (≤500 kg/day): Compact, cost-effective models with manual adjustment (Sky Bluer’s entry-level CRM 1010 series).
- Medium-High Volume (≥1 ton/day): Fully automated machines with inline monitoring and high-speed operation (Sky Bluer’s CRM 2025/3030 series).
3. Material Specifications
- Copper Grade: Confirm compatibility with your raw material (OFC, ETP, or alloy).
- Input Wire Diameter: Ensure the machine accepts your existing round wire diameter to avoid additional drawing equipment.
4. Automation & Control
- Manual vs. Automated: Manual machines are suitable for small batches, while PLC-controlled automation is essential for consistent high-volume production.
- Data Integration: Optional IoT connectivity for remote monitoring and production analytics (ideal for large manufacturing facilities).
5. Supplier Reliability & Support
- Technical Expertise: Choose a supplier with 10+ years of experience in wire processing (Sky Bluer has 500+ global clients).
- After-Sales Service: 24/7 technical support, on-site installation training, and a 1-year warranty (Sky Bluer offers global spare parts delivery).
- Customization: Ability to tailor the machine to your specific needs (e.g., custom roller grooves, inline annealing integration).
Why Choose Sky Bluer CRM Copper Wire Flattening Machines?
Sky Bluer Environmental Technology Co., Ltd. stands out as a trusted global supplier of copper wire flattening machines, offering four unbeatable advantages:
1. Precision & Quality Assurance
- All machines meet ISO 9001, IEC 60317, and GB/T 3114-2023 standards, with a 99.8% product qualification rate.
- Tungsten carbide rollers and laser monitoring ensure consistent dimensional accuracy and surface quality.
2. Cost Efficiency
- 30–40% lower equipment costs than European/Japanese brands, without compromising on quality.
- Energy-saving design and minimal waste (≤2%) reduce long-term operating costs.
3. Turnkey Solutions
- Complete flat wire production lines (flattening, annealing, cleaning, coating, take-up) for seamless integration into your workflow.
- Customizable configurations to match your specific production requirements.
4. Global Support & Experience
- Exported to 20+ countries, serving leading manufacturers in Europe, the USA, Japan, and Southeast Asia.
- 24/7 technical support, on-site training, and a dedicated customer success team to address your needs.
Conclusion
A high-quality copper wire flattening machine is a game-changer for manufacturers looking to produce precision flat copper wire efficiently and cost-effectively. Sky Bluer’s CRM copper wire flattening machines combine advanced technology, industrial durability, and intelligent control to meet the demands of automotive, electrical, and electronics industries—delivering uniform thickness, superior surface quality, and high production efficiency.
Whether you’re upgrading an existing production line, expanding capacity, or entering the flat copper wire market, Sky Bluer’s team of engineers will work with you to select or customize the perfect machine. With our proven track record of reliability and customer satisfaction, you can trust Sky Bluer to be your long-term partner in precision copper processing.
Contact Sky Bluer Environmental Technology Co., Ltd. today to request a custom quote, view a live demonstration of our CRM copper wire flattening machine, or learn more about our turnkey production solutions.
