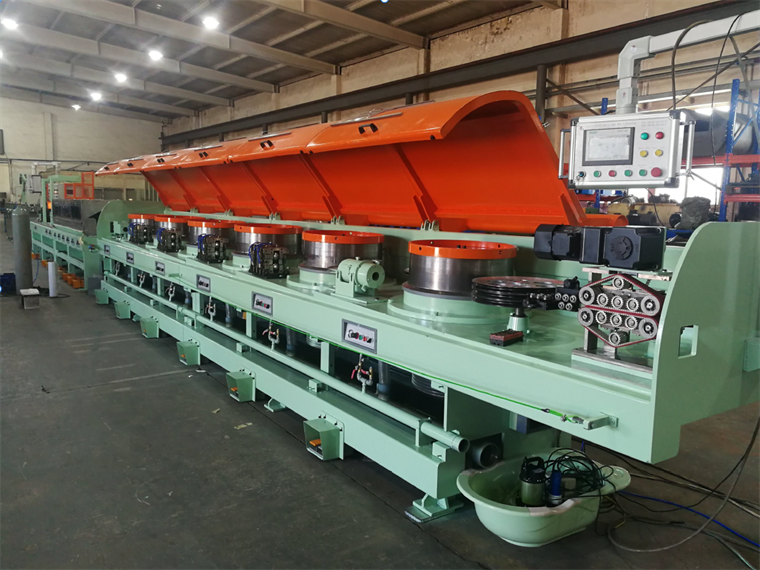

Straight Line Wire Drawing Machine Your Supplier In China

A brand CRM straight line wire drawing machine can be used for drawing straight wires without deflection through the machine without any theoretical limitations regarding wire material or diameter. The straight line wire drawing machine is capable of drawing low and high carbon steel wires, stainless steel wires, titanium wire, nickel alloy wires, special alloy steel wires, and nonferrous alloy steel wires with remarkable performance.

Send email to us

Product Detail

Video

Product Tags

Straight Line Wire Drawing Machine Your Leading Straight Line Wire Drawing Machine Supplier In China

Capstan diameter: CRM 300-1200mm

Incoming wire diameter: Ø 1.4-14mm

Outlet diameter: Ø 0.3-9.0mm

Maximum speed: 1000m/min

Introduction Of Straight Line Wire Drawing Machines

Features of Straight Line Wire Drawing Machine

1. Simple mechanical structure is trouble-free and easy to maintain.

2. A DC or AC motor provides accurate performance and ease of operation.

3. Using a complete wetting of the drum's interior wall will provide a high cooling effect and hence high speed drawing.

4. The Straight Line Wire Drawing Machine has no or hardly any problems and produces the highest quality wire.

5. All required electrical operations can be controlled from a cabinet containing the main electrical equipment.

How many models do we have of Straight Line Wire Drawing Machines?

Model

CRM-250

CRM-300

CRM-350

CRM-400

CRM-450

CRM-560

CRM-600

CRM-700

CRM-750

CRM-900

CRM-1200

Diameter of Capstan (mm, Ø)

250

300

350

400

450

560

600

700

750

900

1200

Inlet Diameter of Wire (mm, Ø) C=0.85%

2.0

2.8

3.5

4.0

5.0

5.5

6.5

8.0

10.0

12.7

16.0

18.0

Drawing Speed (m/sec)

20~30

18~25

15~20

12~16

8~12

6~10

5~8

4~6

3~6

Drawing Power (kW)

11~15

15~22

22~30

30~37

37~45

45~55

55~75

75~90

75~110

90~130

90~160

110~140

Application of Straight Line Wire Drawing Machine

A straight line wire drawing machine can be used to manufacture welding wire (strip) (flux-cored welding wire, submerged arc welding wire, and unprotected isolation welding wire); steel wires (low, medium, high carbon steel wire), stainless steel wire, spring steel wire, pre-changed steel wire, tire wire, steel cord, wires (copper, aluminum, alloy steel wire) as well as other metal wires.
