Wire Flattening and Shaping Lines
Manufacturer: Sky Bluer Environmental Technology Co., Ltd
Brand: CRM
Designed speed: 300 m/min
Input Material: low carbon steel, medium carbon steel, high carbon steel;
Input size: Φ12mm
Shapes: Flat, Shaped and Round Wire
Standard Shaped Wire Size Range:
Thickness: 0.004″ x 0.50″
Width: 0.012″ x 2.500″
Maximum cross section of final product: 28mm2
Tensile strength of carbon steel: generally 235MPa
Commonly used carbon steels are:
1. Low carbon steel: 10, 10A
2. Medium carbon steel: 35, 45
3. High carbon steel: T8, T9, T10
Weight limit for take-up: 2 Ton

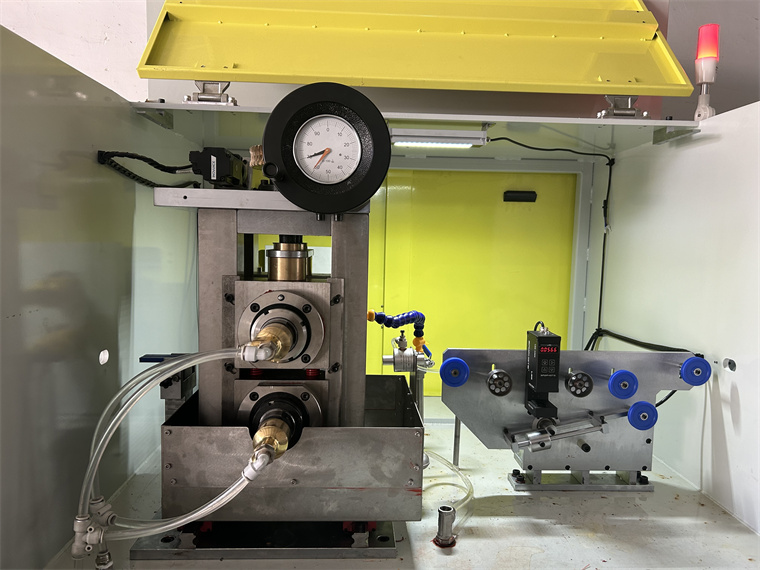

Roll size for wire flattening mills: 180x80mm
Roll size for Profile universal mills: 200mm by 25mm
Corner rounding: Based on the drawings provided by the customer
Method of roll adjustment: Electric + hydraulic pressure or manual
Roll material: Aircraft-grade tungsten carbide steel
Method of payoff: Active payoff or passive payoff
Method of winding: Fully automatic precision wire winding
Drives: Dual servo drives are used in the roll drive
Degreasing system: Utilizes air knives for oil blowing and scraping degreasing
Auxiliary equipment: Centralized lubrication system, cooling system, and online laser measuring instrument for simultaneous measurement of width and thickness
Please note that the specifications provided above are subject to industry standards, material compatibility, and specific customer requirements.
Applications: High strength wire, Door and window accessories, auto parts, high-precision parts Masonry nails, Springs, Cutting tools, Knives
Payoff Unit→ Flat Rolling Mills →Dancers Flat Rolling Mills →Dancers →Side Rolling Mills + Dancers → Universal Profile Wire Rolling Machines→ Precision Winding Unit
Wire shaping lines for carbon steel wires are specialized rolling and drawing equipment designed for the production of carbon steel wires with specific shapes and dimensions. These lines consist of various components and processes that facilitate the shaping and forming of carbon steel wires according to desired specifications.
