Machine for Flattening Copper Wire

Machine for Flattening Copper Wire

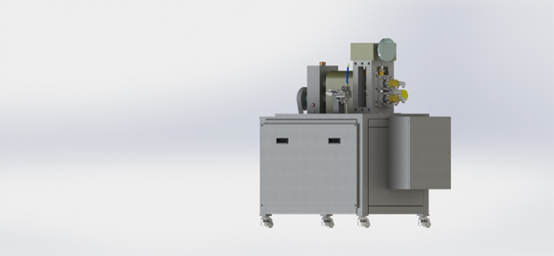

The line is a high-speed, high-precision rolling mill machine for Flattening Copper Wire series newly launched by Sky Bluer Environmental Technology Co., Ltd in March 2022, brand CRM, model CRM-2023-3. The production line consists of pay-off machine, dancers, straightening system, flat rolling mills, precision profile rolling mills, straightening system, wire take-up, Annealing Unit Nitrogen protection suitable for processing various copper flat wires.


Product Detail

Video

Product Tags

Machine for Flattening Copper Wire

Brand

CRM

Model

CRM-2023

Type

Precision Cold Rolled or drawn

Shapes

Flat, Rectangle, square, Wedge, Triangle,   Profile

Size Range

Width   2.0mm-30mm

Thickness:0.5mm-12mm

Tolerance

+-0.001mm or can be Customized

Material

Suitable material: copper and brass

Design Speed

30-350 m/Min

Application Industry

Automotive Wire

Stages

Single stage/Tandem wire   flattening& shaping lines

Roll Details

Roll material:

tool steel, sintered metal or carbide     steel

Roll Drive

Double Serve

Roller Diameter:

60mm-350mm

Roll precision:

less than 0.001mm

Optional Devices

Pay-off Unit

Spool pay-off, Coiling pay- off unit

Annealing Unit

Customized

Take-up Unit

Customized/Spool/Coiling/ Cut-to-length

Wire guide device

Customized

Laser measuring system

Customized

Central Lubrication System

Customized





Mechanical overview:



The line is a high-speed, high-precision rolling mill machine for Flattening Copper Wire series newly launched by Sky Bluer Environmental Technology Co., Ltd in March 2022, brand CRM, model CRM-2023-3. The production line consists of pay-off machine, dancers, straightening system, flat rolling mills, precision profile rolling mills, straightening system, wire take-up, Annealing Unit Nitrogen protection suitable for processing various copper flat wires.

It adopts a precision take-up system that is highly accurate. Human-computer interaction, PLC, touch screen, and servo control control the entire machine. During the operation process, the rotation frequency of each motor is reasonably allocated to ensure the coordinated and stable operation of the entire production line. The whole machine all-in-one is simple to operate, easy to use, and saves labor costs while improving production efficiency.

1. Application: flat square wire processing (width-to-thickness ratio less than 6 times)

2. Wire entry range: 1.0-.5mm

3. Finished product size: width 0.6-9 mm; thickness 0.6-6mm

4. Design speed 350m/min

5. Accuracy: thickness ±0.005mm width ±0.015mm

6. R-angle requirements: R0.05-1mm, (can be adjusted according to product size and demand); straightness ≤ 3mm/m
