Rectangular Copper Wire Machine

Rectangular Copper Wire Rolling Machine

Manufacturer China: Sky Bluer Environmental Technology Co., Ltd

Composition of the production line: Flat Rolling Mills + Dancers + Side Rolling Mills + Dancers + Universal Profile Rolling Machines

Designed speed: 300 m/min

Cross section of maximum final product: 28mm2

Weight limit for take-up: 2000 kilograms

Roll size for horizontal mill: 180x80mm

Roll size for universal mills: 200mm x25mm.

Corner rounding: Based on the drawings provided by the customer

Method of roll adjustment: electric + hydraulic pressure, or manual

Material of the roll: aircraft grade tungsten carbide steel

Method of payoff: active payoff or passive payoff

Method of take-up: Fully automatic precision wire winding

Drives: Dual servo drives are used in the roll drive

System for degreasing: air knives blowing oil and scraping degreasing

Auxiliary equipment: centralized lubrication system, cooling system, and online laser measuring instrument for simultaneous measurement of width and thickness

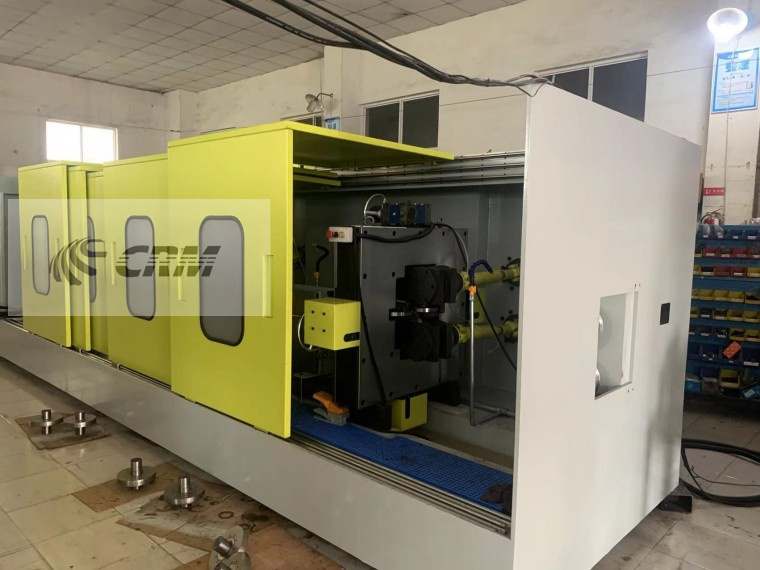

Flat Rolling stand

Typical application scenario:

Installed behind your wire drawing machine. It is suitable for the production of high-precision copper flat wire, rectangular copper wires, square copper wires through the rolling process (roughly flat rolling + side rolling + high precision flat wire rolling + side rolling + universal profile rolling).

Profile Rolling Stand

Input material:

Copper Rod (Anaerobic or Hypoxic)

Output product:

Various types of copper wire, including copper flat wire, copper rectangular wire, copper square wire, and brass wire

The following are the features of the brand CRM Rectangular Copper Wire Machine:

 1. Maximum rolling force of the product is 80KN, maximum wire diameter is 7mm, and maximum cross-sectional area is 25mm2.

2. A very rapid change of roll

3. A hard alloy roll of aviation grade, with a roll runout of 1 mm

4. A double servo drive is used for rolling. Maximum line speed 500m/min

5. An electric roller gap adjustment is available

6. Rectangular copper wire rolling machines provide precise control over the dimensions and shape of the wire. The results of the wire production are consistent and uniform, and they meet specific tolerances and requirements.

7. Customization: The CRM Rectangular Copper Wire Machine allows the rectangular wire's dimensions to be customized, including its width, height, and thickness. Having this flexibility allows manufacturers to tailor wires to specific applications, ensuring optimal performance and functionality.

8. There is a higher packing density in rectangular wires as compared to round wires, which allows for better space utilization in various applications. The rectangular shape is beneficial for winding coils and for optimizing the design of electrical components.

What is a rectangular copper wire rolling mill?

The Rectangular Copper Wire Rolling Machine, also referred to as the rectangular wire rolling mill or simply the wire rolling machine, is a special precision rolling and drawing tool that is used for the manufacturing of copper wires, brass wires, etc. As a result, round copper wires can be transformed into rectangular, square, flat wires with round corners as well as shaped wires with precision dimensions with this machine.
