Rolling Rectangle and Shaped Wire For High-speed Steel

This line is a high-speed, high-precision rolling mill series newly launched by Sky Bluer Environmental Technology Co., Ltd in March 2023, brand CRM, model CRM-2023-3, the production line consists of pay-off machine, dancer, straightening system, flat rolling mill, precision profile rolling mill, straightening system, wire take-up, suitable for processing various high-speed steel flat wires, rectangular wires, square wires and other metal special-shaped wires.
The Take-up unit adopts precision take-up system. The whole machine is controlled by intelligent human-computer interaction system, PLC, touch screen and servo. During the operation process, the rotation frequency of each motor is reasonably allocated to ensure the coordinated and stable operation of the entire production line. The whole machine is simple to operate, easy to use, and saves labor costs while improving production efficiency.

Send email to us

Product Detail

Video

Product Tags

Rolling Rectangle and Shaped Wire For High-speed Steel
Brand	CRM
Model	CRM-2023-3
Capacity	120 Ton/Shift
Type	Cold Rolling
Shapes	Flat, Rectangular, water-drop, Profile Triangle, Wedge, V-shaped wire
Size Range	Width 2.0mm-30mm Thickness:0.5mm-25mm
Tolerance	+-0.001mm or can be Customized
Material	Suitable material: high speed steel
Design Speed	0-350 m/Min
Press-down Model	Automatic or manual
Roll Details
Roll material:	tool steel, sintered metal or carbide steel
Roll Drive	Double Serve
Roller Diameter:	60mm-350mm
Roll precision:	less than 0.001mm
Optional Devices
Pay-off Unit	Spool pay-off, Coiling pay- off unit
Take-up Unit	Customized
Wire guide device	Customized
Laser measuring system	Customized
Central Lubrication System	Customized

CRM Profile wire rolling mill Complete production lines for your special shaped wire industry.

It is possible to perform high precision flat& profile rolling experiments from stainless steel round wires and profile wires, Generally, our precision profile rolling mill is used for research new projects and feasibility studies with different materials, like stainless steel wires, brass wires, and etc. To achieve a high precision of the process, it is possible to perform thermo-mechanically coupled simulations of the process.

About CRM Production Line

Rolling Rectangle and Shaped Wire For High-speed Steel

The Take-up unit adopts precision take-up system. The whole machine is controlled by intelligent human-computer interaction system, PLC, touch screen and servo. During the operation process, the rotation frequency of each motor is reasonably allocated to ensure the coordinated and stable operation of the entire production line. The whole machine is simple to operate, easy to use, and saves labor costs while improving production efficiency.

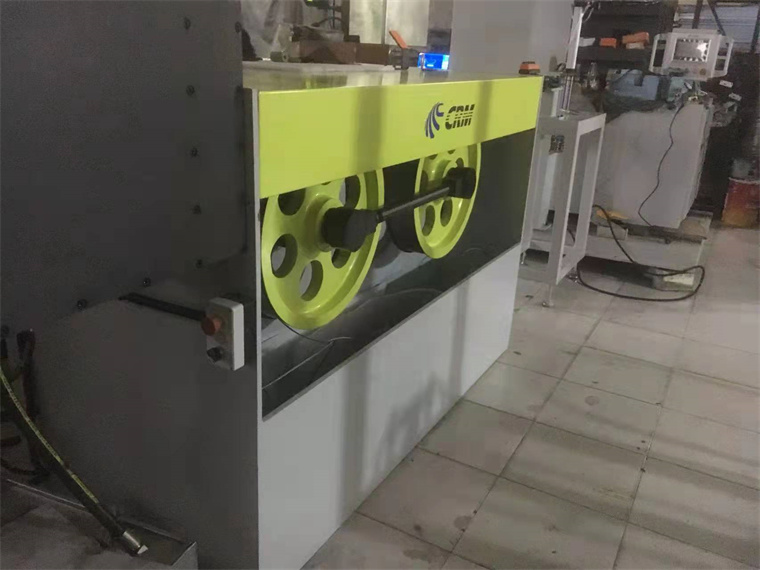

Rolling Rectangle and Shaped Wire For High-speed Steel.jpg
