Precision Rolling Machine

Lines for making precision wire rods of various shapes

Manufacturer: Sky Bluer Environmental Technology Co., Ltd

Brand: CRM

The production of high-quality wire rods for a variety of critical applications is dependent on precision rolling machines. Their role is critical to ensuring the final product's reliability and performance by meeting stringent industry standards. Precision wire rod mills are capable of rolling at high speeds of 400 meters per minute, increasing productivity and efficiency in the manufacturing process. As part of the production line, electrical components are imported from Japan and Germany, and the entire process is fully automated in order to meet the needs of all customers.

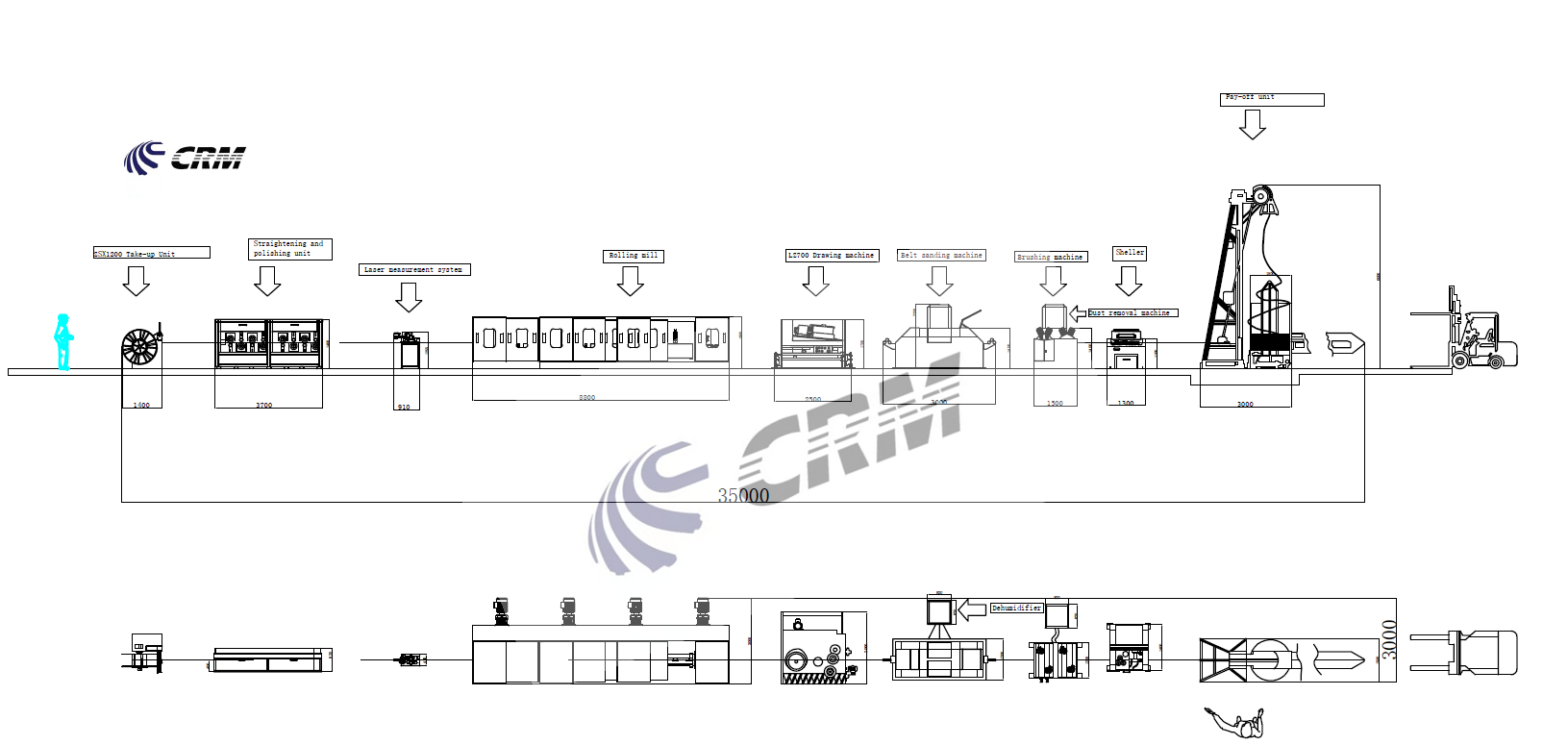

Strip Rolling Mill Production Line Composition

 Hydraulic reversing pay-off stand→ inlet wire guide position →3 stand precision rolling machines→ dancers #4→on-line caliper→ straightening device→ wire takeup machines

Specifications:

1. Designed speed: 400 m/min

2. Shapes: Flat Wire, Flat wire with natural angle, rectangular wire, square wire, round wires

3. Input Material: 201 stainless steel uns s20100, 204cu stainless steel uns 20430, 301 stainless steel uns s30100, 302 stainless steel uns 30200, tungsten, Zirconium, Aluminum and etc

4. Input size: Calculated according to the size of the final product

5. Rolled Flat Size Ranges:

Thickness: 0.0002” – 0.335”(0.120mm – 8.509mm)

Width: (Flats)0.035” – 1.50”(0.89 mm – 38.46 mm)6. Weight limit for take-up: 2.5 Ton

Profile wire: Equipment can be produced according to drawings

7. Applications:

Auxiliary equipment of Precision Rolling Machine:

1. rotary uncoiler;

2. straightening machine to straighten coil end;

3. system for application and collection of liquid process lubricant (synthetic oil);

4. automatic diameter and out-of-width and thickness measurement system

6. take-up drum for cold rolled wire

7. system for removal of the lubricant from wire surface

8. precision wire coiler

This precision rolling machine production line is suitable for the processing, rolling and production of flat wire rods, profile wire rods with a design capacity of 50 tons per shift. The equipment adopts an intelligent human-computer interaction system, PLC controls the electrical system of the rolling mill equipment, and reasonably distributes the rotation frequency of each motor during operation to ensure the coordinated and stable operation of the entire production line. The whole machine is simple to operate, easy to use, and saves labor costs while improving production efficiency.
