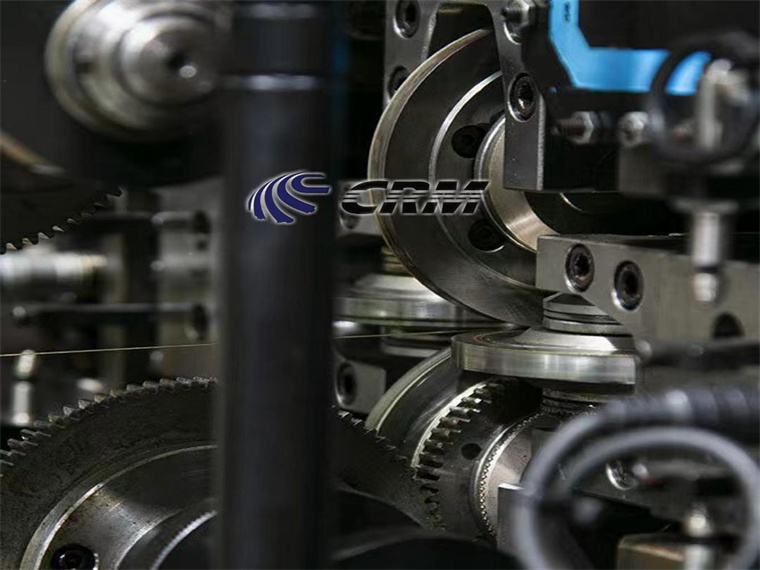

Rectangular Copper Wire Rolling Machine with Online Annealing

Rectangular Copper Wire Rolling Machine

Manufacturer: Sky Bluer Environmental Technology Co., Ltd

Composition of the production line: Flat Rolling Mills + Tension Control Dancers + Edger + Dancers + Universal Profile Rolling Machines

Designed speed: 390 m/min

Cross section of maximum final product: 28mm2

Weight limit for take-up: 2000 kilograms

Roll size for horizontal milling: 180x80mm

Roll size for universal mills: 200mm by 25mm

Corner rounding: Based on the drawings provided by the customer

Method of roll adjustment: electric + hydraulic pressure, or manual

Material of the roll: aircraft grade tungsten carbide steel

Method of payoff: active payoff or passive payoff

Method of take-up: Fully automatic precision wire winding

Drives: Dual servo drives are used in the roll drive

System for degreasing: air knives blowing oil and scraping degreasing

Auxiliary equipment: centralized lubrication system, cooling system, and online laser measuring instrument for simultaneous measurement of width and thickness

Typical Application :

Installed behind your wire drawing machine. It is suitable for the production of high-precision copper flat wire, rectangular copper wires, square copper wires through the rolling process (roughly flat rolling + side rolling + high precision flat wire rolling + side rolling + universal profile rolling).

Input material:

Copper Rod (Anaerobic or Hypoxic)

Output product:

Various types of copper wire, including copper flat wire, copper rectangular wire, copper square wire, and brass wire

Brand CRM Rectangular Copper Wire Machine Specifications and Features

1. 80KN: The product provides a new type of power source for rolling equipment, maximum wire diameter 7mm and cross-sectional area up to 25mm2.

2. A very rapid change of roll

3. An aviation grade hard alloy roller with runout of the 1.0 mm roll

4. For the rolling process a double servo driver is deployed. Maximum line speed 500m/min

5. Electric roller gap offset

6. The rigid size/shape rectangluar copper wire rolling processes allows for exact replication of the final dimensions, ensuring that each finished wired is engineered to meet spec fications. Wire Fabrication Results in Controlled Tolerances and Uniform Properties

7. Customization: With length, height and thickness of the rectangular wire set to varietyThe CRM Rectangular Copper Wire Machine will allow those rectangulblock copper wires' dimension be customized. This flexibility enables manufacturers to custom-fit the wires for particular applications, resulting in the highest functionality and performance.

8. In rectangular wires, the packing density is higher than that in round wires which makes it a better use of space for several applications. The square cross-section is advantageous for winding coils and optimize electrical components design.

Rectangular Copper Wire Rolling Mill

The Rectangular Copper Wire Rolling Machine, also known as the flat copper wire rolling mill or a flat copper wire drawing machine, is specially for manufacturing rectangular coppers and brass. Therefore, this copper rectangular wire drawing and rolling machine is able to make flat wires with round copper wire as raw material and can also process rectangular/square/flat-wires for profiles of fine dimensioning.
