Well Screen Wire Lines for Filtration Industry

Well Screen Wire Lines for Filtration Industry

The significance of a properly designed well screen cannot be overstated when assessing the effectiveness of the filtration process. Well screen wire finds extensive application globally in filtering water, oil, and gas in wells, serving as the primary screen type in the water well sector. These screens are manufactured by wrapping rolled wire, usually stainless steel with grade ss304,306l,316l,430 and etc, in a triangular cross-section around a circular arrangement of longitudinal rods, affixing the wire to the rods through welding. With a track record of success across numerous installations, Well Screen Wire Line CRM-98 is poised to assist your company in becoming a frontrunner in well screen wire production, offering tailored solutions to meet your specific needs.


Product Detail

Video

Product Tags

Well Screen Wire Lines CRM-98

Brand: CRM

Material Grade:Stainless steel 304 and 430

Typical input Round Wire Range: 1.8-8.5mm

Typical Section Size: 3 x 2 mm to 7.5 x 3.5mm

Typical Tolerances:

Height:      +/-0.02 mm

Width:       +/-0.01 mm

Angle: There may be variations within a section range

Main Features from Well Screen Wire Lines CRM-98

1. high-precision rewinding and winding system for wire transverses

2. Life-enhancing Tungsten Carbide Rolls

3.  Driven Turk's Head rolling unit is combined with a double capstan wire drawing machine

4. A recirculating coolant system for the rolling mill and the Turks Head

5. A.C. Vector Variable Speed Driver Control System, width tough HMI for set

up, running and diagnostic operation of the line. Remote access available; Equipment adds more German and American elements

6. Real-time height and width measurement tool online

7. The entire production line includes straightening and cutting machines

Maximizing Filtration Efficiency: The Role of Well Screen Wire Line CRM-98

The significance of a properly designed well screen cannot be overstated when assessing the effectiveness of the filtration process. Well screen wire finds extensive application globally in filtering water, oil, and gas in wells, serving as the primary screen type in the water well sector. These screens are manufactured by wrapping rolled wire, usually stainless steel with grade ss304,306l,316l,430 and etc, in a triangular cross-section around a circular arrangement of longitudinal rods, affixing the wire to the rods through welding. With a track record of success across numerous installations, Well Screen Wire Line CRM-98 is poised to assist your company in becoming a frontrunner in well screen wire production, offering tailored solutions to meet your specific needs.

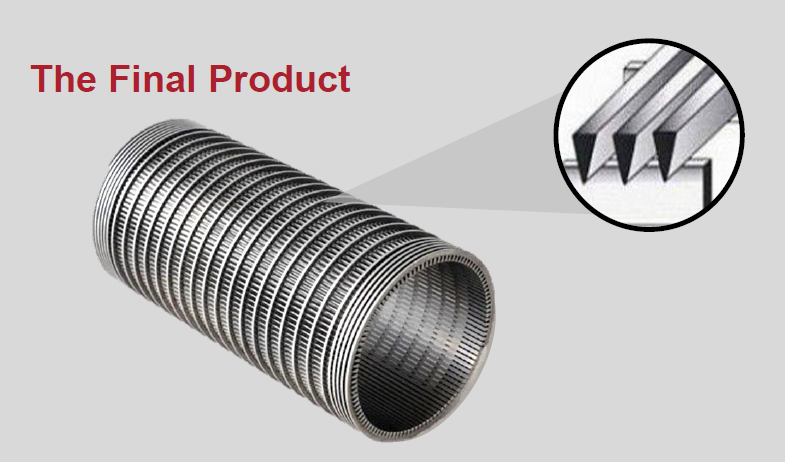

The Final Product

The below image to show you the final product, Screen filters are comprised of tightly arranged parallel filter well screen wires that are welded onto carrier wires positioned below them. Typically, these filter wires feature a triangular and wedge(V-shape) cross-section, offering the advantage of minimizing the actual filter gap length. This characteristic greatly diminishes the risk of filter blockage.

Well Screen Wire Lines for Filtration Industry.png

Wedge Wire and V-shaped Wire Is Typically Produced Using The Following Equipment

Wedge Wire Rolling Drawing Machine

V shaped wire rolling mill machine

Wedge Shaped Wire Machine For Industry Filtering And Screening

Straightening And Cutting Machine for Wedge Profile Wires

The Best Wedge Wire Screen Machine Manufacture
