Versatile Wire Flattening and Shaping

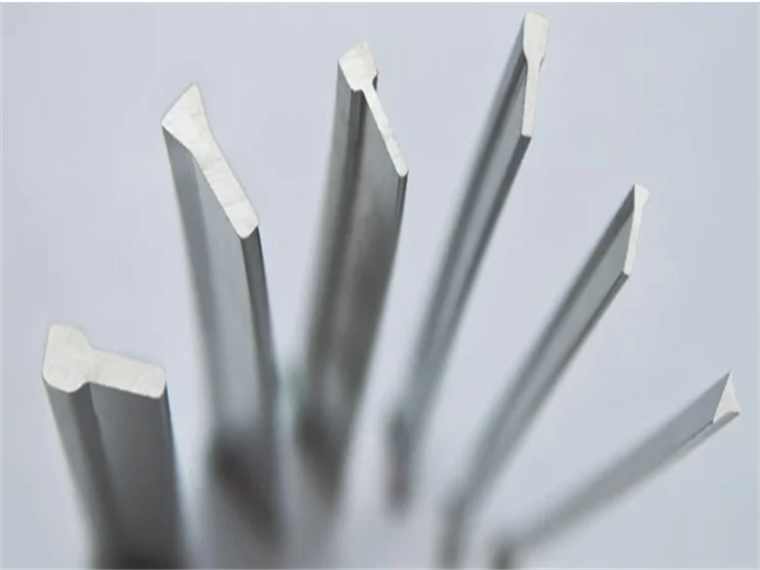

SKY BLUER ENVIRONMENTAL TECHNOLOGY CO., LTD, the leading manufacturer of wire flattening machines, offers CRM-branded wire shaping lines that go beyond just rolling natural-edged flat wire. With the proper selection of equipment, we can roll a wide range of shapes, including square, rectangular, trapezoidal, oval, half-round, and many others

 Features You Can Expect from SKY BLUER ENVIRONMENTAL TECHNOLOGY CO., LTD CHINA

• Inline pre-draw

• Speeds up to 3,000 FPM (915 MPM)

• Accurate tension and speed control

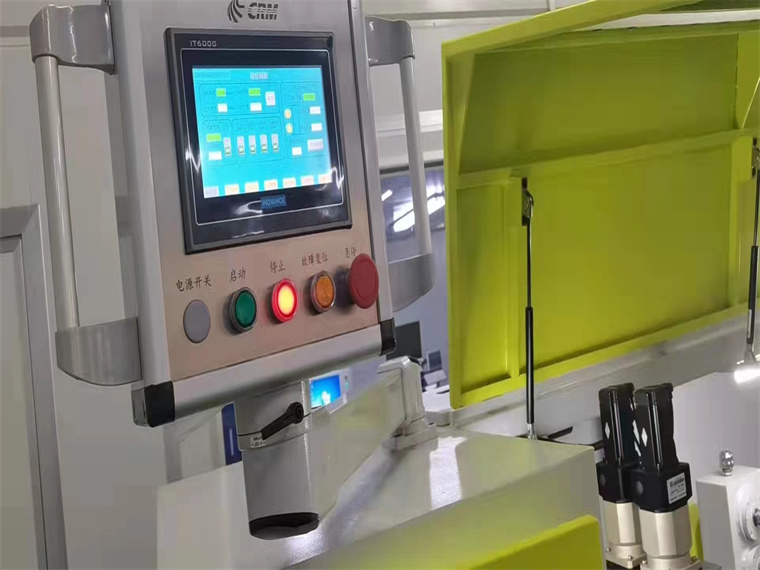

• Touchscreen HMI

• Servo traversing wind

• Lateral adjustment

• 2HI/4HI design dependent upon the application

• Supports fully automatic straightening and cutting machines

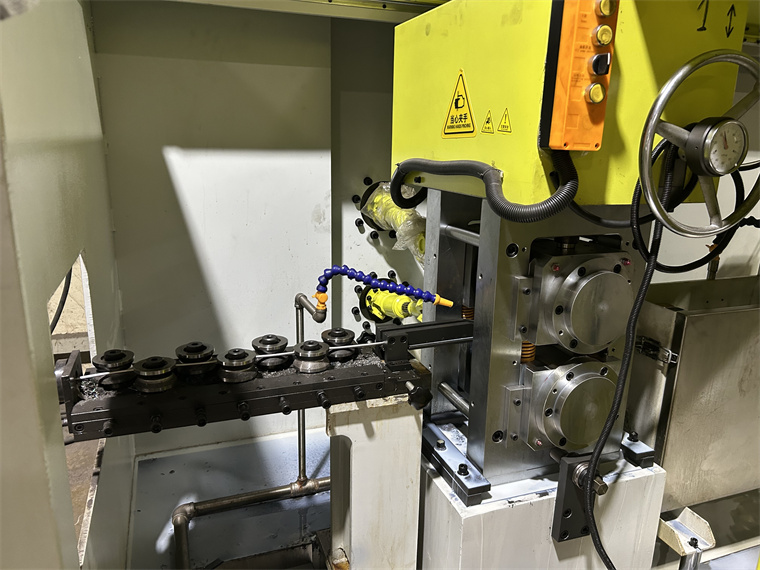

 2-Stage Rolling Mill System

The 2-stage rolling mills follow in sequence and are separated by a dancer unit to buffer and stabilize wire tension between the two stages. Both rolling mills are digitally controlled via the central control unit for precise and synchronized operation.

A degreasing, cleaning, and decontamination unit is integrated to ensure the wire is thoroughly treated as it passes through the system. The mills are equipped with wire feed guides at both the entry (from the decoiler) and exit points to ensure smooth and accurate wire handling.

Each mill features high-precision tungsten carbide rollers designed for flat wire forming, with roller diameters ranging from 60 to 250 mm. The rollers are internally water-cooled, supplied by a suitably sized cooling water tank. Waste oily water is collected and separated in a dedicated oil-water separation tank to ensure proper environmental management.

Online Laser Measuring System – CRM2025-LL

The CRM2025-LL is a compact, high-precision online laser measuring instrument specifically developed to integrate seamlessly with our precision wire rolling mills. With a measuring range of 0.15–20 mm, it offers exceptional repeatability of ±0.1 μm and measurement accuracy of ±1 μm (within a narrow range).

Utilizing a telecentric optical imaging system, this photoelectric diameter gauge is ideal for applications requiring minimal installation space, support for high-speed production lines, and ultra-high measurement precision. Thanks to its ultra-short exposure time, the CRM2025-LL can accurately measure even vibrating objects at high frequencies. It also performs reliably in challenging environments with water vapor, smoke, or dust.

The CRM2025-LL model demonstrates outstanding technical advantages, delivering fast, accurate, and stable measurements over extended operation periods.

Wire Shaping Machines for These Industries

Automotive Wire

Our advanced wire flattening and shaping systems are engineered to produce high-performance wire used in critical automotive applications, such as collet sections. These systems are designed for dimensional accuracy to meet the demanding requirements of the automotive industry.

Medical Wire Line

This specialized line is capable of processing ultra-fine medical-grade wire, essential for use in high-precision applications such as catheter reinforcement and stent manufacturing. With strict attention to cleanliness, precision, and tension control, the line ensures superior quality and reliability for the most sensitive medical uses.

Orthodontic Wire

A Turks head configuration, combined with integrated SPC (Statistical Process Control) and AGC (Automatic Gauge Control) systems, guarantees high-precision wire forming. This setup ensures that orthodontic wires meet the tight tolerances and surface finish requirements essential for dental applications.

Photovoltaic Wire Line

Designed for speed and precision, this line incorporates three high-speed wire flattening mills operating in tandem, capable of reaching speeds up to 2,600 FPM (800 MPM). Equipped with SPC and AGC systems, along with advanced speed and tension control, the line delivers consistent flat wire used in photovoltaic ribbon manufacturing, supporting high-efficiency solar panel production.

Retaining Ring Wire

To produce retaining ring wire with consistent cross-sectional geometry, this line features a sophisticated setup including four rolling mills, an edger, a Turks head, and dancer-controlled speed and tension systems. The configuration ensures excellent shape control and repeatability for high-strength retaining rings used in mechanical assemblies.

Wellscreen Wire

A tailored combination of rolling mills and a Turks head unit enables the precise forming of wedge-shaped wire, which is crucial in the manufacturing of oil and water well screens. This setup ensures structural integrity and dimensional accuracy for high-performance filtration in harsh well environments.

 Music Wire Line

Our music wire processing line is engineered to produce high-tensile wire with exceptional surface finish and diameter consistency—essential qualities for musical instrument strings and precision springs. The line integrates precision rolling mills, controlled tension systems, and optional heat treatment stages to achieve the strength, elasticity, and tonal properties required in high-quality music wire applications.

Customized Straightening and Cutting Solutions

Each wire flattening mill can be equipped with a straightening and cutting machine tailored to user requirements. The cutting unit is capable of processing flat wire lengths ranging from 200 mm to 800 mm, with adjustable end plates to ensure precise alignment and clean, consistent cuts.

The system is designed for high-efficiency operation, supporting a line speed of 50 to 100 meters per minute, ensuring smooth integration with continuous production lines.

 What Is the Working Process of a Flat Wire Rolling Mill?

Flat Wire Rolling Mill,as known as wire flattening mill machine,The flat wire rolling mill process begins with wire decoiling, followed by optional pre-straightening. The wire then passes through a 2-stage rolling mill with tungsten carbide rollers, controlled digitally for precision. A dancer unit buffers tension between the rolling stages. Inline laser measurement ensures dimensional accuracy, while a cleaning unit removes oil and contaminants. Depending on user needs, a straightening and cutting machine processes the wire into lengths ranging from 200–800 mm. Finished products are either cut and collected or rewound for further use.

About the Company

SKY BLUER ENVIRONMENTAL TECHNOLOGY CO., LTD is a leading China-based manufacturer specializing in wire flattening machines, wire shaping machines, ultra-fine wire drawing machines, and PV ribbon machines under our brand, CRM
