Standard profile rolling mill: Standard Profile Wire Rolling Mill Machine

Rectangular Copper Wire Rolling Machine

Manufacturer: Sky Bluer Environmental Technology Co., Ltd

Brand: CRM

Specifications of Standard Profile Wire Rolling Mill Machine:

Designed speed: 300 m/min

Input Material: Carbon Spring Wire, Music Wire, Spring Wire, Precision Drawn Nickel Alloy Wire, stainless steel wires

Input size: Φ12mm

Standard Shaped Wire Size Range:

Thickness: 0.004″ x 0.50″

Width: 0.012″ x 2.500″ (size capability may vary based on alloy, copper, carbon steel, stainless steel, precious metal, titanium wire grade of steel, and print requirements)

Maximum cross section of final product: 28mm2

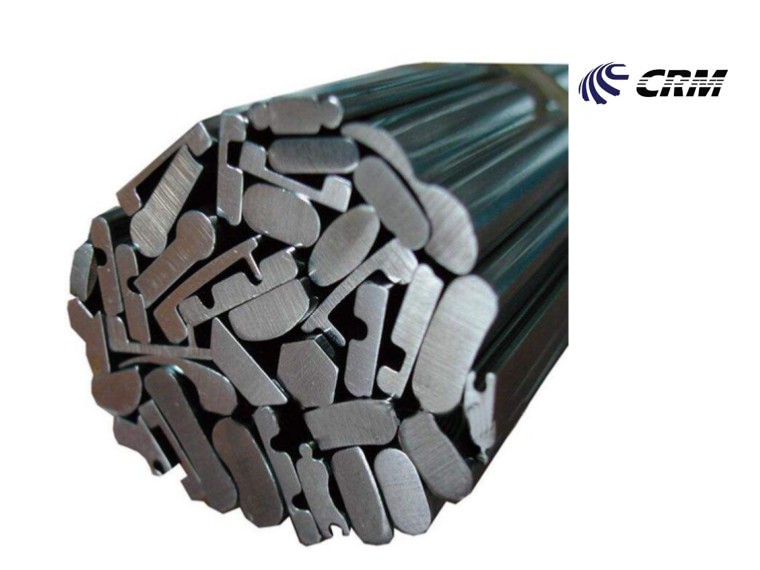

Shapes:Round Wire,Square Wire,Rectangular Wire,Wedge Wire,Special Shaped Wires

Weight limit for take-up: 2 Ton

Roll size for wire flattening mills: 180x80mm

Roll size for Profile universal mills: 200mm by 25mm

Corner rounding: Based on the drawings provided by the customer

Method of roll adjustment: Electric + hydraulic pressure or manual

Roll material: Aircraft-grade tungsten carbide steel

Method of payoff: Active payoff or passive payoff

Method of winding: Fully automatic precision wire winding

Drives: Dual servo drives are used in the roll drive

Degreasing system: Utilizes air knives for oil blowing and scraping degreasing

Auxiliary equipment: Centralized lubrication system, cooling system, and online laser measuring instrument for simultaneous measurement of width and thickness

Please note that the specifications provided above are subject to industry standards, material compatibility, and specific customer requirements.

Composition of the production line:

Payoff Unit→ Flat Rolling Mills →Dancers →Side Rolling Mills → Dancers → Universal Profile Wire Rolling Machines→ Precision Winding Unit

Why do we need a standard wire rolling mill for profile wire?

A standard profile wire rolling mill is a specialized precision rolling machine series used in the manufacturing process of profile wires. Profile wires are wires with cross-sectional shapes other than round, such as rectangular, square, or custom-shaped wires. Many industries use these wires, including automotive, construction, electronics, and engineering.
