Four Stand Cold Rolling Mill for Produce DC01 Flat Wires

Input material: DC01

Output material:1.6x8.0mm

Model:CRM2024

Machine Components for DC01 Flat Wire Rolling Mill Machine

1) Vertical double (two-position) pay-off device – for coils without precision laying, with the rotation of both coil holders

2) Horizontal pay-off device – for strip coils with precision laying

3) Straightening and feeding device

4) Brushing unit with an aspiration system, having a spark arresting system and ignition protection

5) Stand No.1: a two-roll driven stand with a system for cleaning the rolls from stuck suspended matter contained in the emulsion

6) Non-driven edger strand

7) Stand No.2: a two-roll driven stand with a system for cleaning the rolls from stuck suspended matter contained in the emulsion

8) Non-driven edger strand

9) Stand No.3: a two-roll driven stand with a system for cleaning the rolls from stuck suspended matter contained in the emulsion

10) Non-driven edger strand

11) Stand No.4: a four-roll driven stand with a system for cleaning the rolls from stuck suspended mat-ter contained in the emulsion Driven upper and lower rolls, idle side rolls

      Lubrication requirements for the rolling stands:

     Lubrication points should be grouped by units and allow free access.

12) Cleaning (washing) and drying device

      The machine should contain a cleaning (washing) unit designed to remove residual cooling and lubri-cation fluid with further hot air drying and polishing.

      Washing solution with a temperature of up to 80°С.

      Hot air drying with a temperature of up to 120°С.

      Polishing by using the 200Х25Х76 CP-FB 5A MED brushes (CF-FB 5A VFN 3M flap brushes)

13) Polishing device with an aspiration system, having a spark arresting system and ignition protection

14) Two-plane straightening rolling device.

15) Double take-up device with precision laying function and tilter.

16) Device for the control of geometric parameters of the strip

17) Cooling and lubrication fluid filtration system with a magnetic separator.

18) Safety fencing with a locking system which restricts personnel's access to the running equipment

19) Electrical equipment:

     Electrical cabinet: IP54 protection, cooling by an air conditioner. Electrical cabinets should be located behind the machine drives. LED lighting inside the machine.

How Does Four Stand Cold Rolling Mill Produce DC01 Flat Wires?

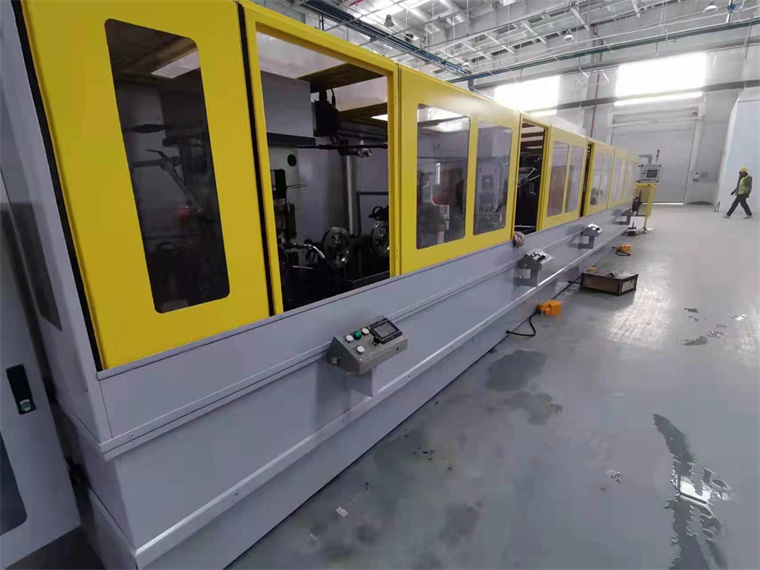

This cold rolling mill is composed of four rolling stands arranged in tandem to produce DC 01 wire. Our company's newest high-precision rolling mill series from round wire to flat wire machine contains two or four rollers. Each stand passes the metal through two or four rollers. By using this setup, the wire's thickness will be gradually reduced while its physical properties, such as strength and finish, will be improved. Materials such as DC01 cold-rolled non-alloy steel are particularly suitable for this process.

DC01 Flat Wire: What is it?

The DC01 designation indicates a cold-rolled steel grade that meets the European standard EN 10130. The "DC" stands for "drawing quality cold-rolled steel," and the "01" indicates a particular grade within that category. A flat wire has a rectangular or other non-round cross-section after it has been flattened, usually by rolling processes.

An overview of key characteristics for DC01 Wire

1.Material: Non-alloy, cold-rolled steel.

2.Grade: DC01 as per EN 10130.

3.Surface Quality: Excellent surface finish due to cold-rolling.

4.Formability: High formability, making it suitable for various forming and bending operations.

Thickness: Typically available in various thicknesses, depending on the specific requirements of the application.

Properties

1.Mechanical Properties: Good balance of strength and ductility, suitable for forming and drawing operations.

2.Surface Quality: Smooth surface, which can be further treated or coated if necessary.

3.Dimensional Accuracy: High precision in thickness and width due to cold-rolling.

Applications

DC01 flat wire is used in a variety of industries and applications, including:

1.Automotive: Components like clamps, springs, and brackets.

2.Construction: Structural components and fasteners.

3.Electrical and Electronics: Parts requiring precise dimensions and good surface quality.

4.Furniture: Decorative elements and structural components.

5.Household Appliances: Components requiring high formability and good surface finish.

Specifications

Typically, the specifications for DC01 flat wire include:

1.Thickness: Ranges from very thin to several millimeters, depending on the application.

2.Width: Customizable based on the needs of the end product.

3.Tolerance: Tight tolerances for both thickness and width to ensure precision.

4.Surface Finish: Cold-rolled finish, often further processed for specific surface quality requirements.

DC01 flat wire is a versatile and widely used material, known for its excellent formability, surface quality, and precision, making it a popular choice across various industries.
