Production Line For Carbon Steel Flat Wires And Square Wires

Mechanical Overview

1. Application: Manufacturing of carbon steel flat wires and square wires

2. Wire input range: ￠5mm～￠13mm

3. Finished product size: a. Flat wire: width 6～18mm thickness 1.5～5.5mm (maximum width-to-thickness ratio 5:1)

If the flat wire needs to be rolled into four right-angle sides, R≤0.3mm can be met at one time;

Equipment advantages:

1) Advanced control system, human-machine interface operation, storage and memory function of process parameters, easy operation;

2) Water cooling device inside the roller, spray cooling and lubrication during rolling, effectively alleviate the problem of excessive temperature rise of materials during rolling;

3) Roller lateral side shift system to ensure full utilization of the roller

Features:

1. The main drive adopts a combination of variable frequency speed regulation and hard gear surface reducer, which has no impact when starting and a wide speed regulation range.

2. The flattening machine and the wire drawing machine adopt advanced linkage speed control device, which greatly improves the operability of the whole wire drawing unit.

3. The wire drum and wire dividing wheel device effectively improves the surface quality of the finished wire.

4. Low energy consumption and high efficiency: Because the unit adopts variable frequency speed control system, it saves 10-30% of electricity compared with the traditional sliding wire drawing unit, and improves the efficiency of drawing large-size wire by about 60%.

Composition: Pay-off device, active flattening machine, tension controller, wire drawing machine, wire take-up and arrangement, head die-piercing machine/heading machine, LS1-9/400 nine-die wire drawing machine set

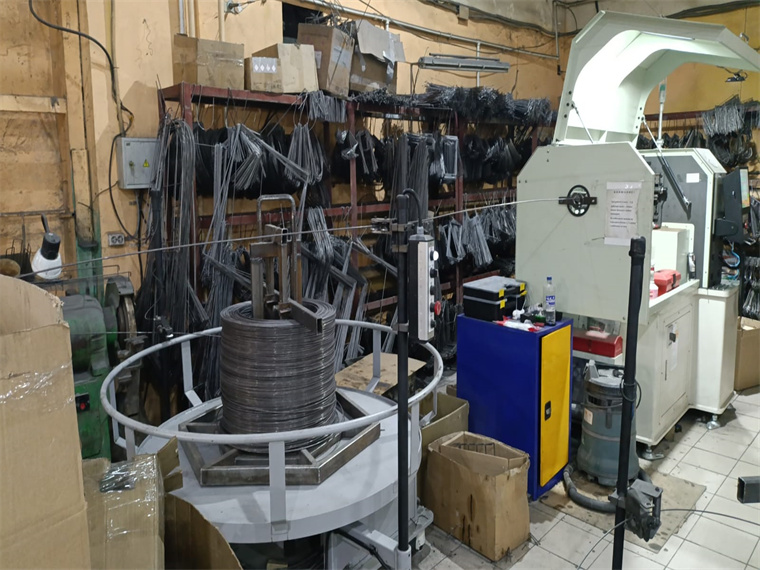

Pay-off device: coil-type passive pay-off or gantry pay-off device (selected by the customer)

Active flattening machine: drive power 30kw, roller diameter 300mm, line speed 100m/min

Wire drawing machine: drive power 90kw, maximum feed rod diameter 10mm, wire drawing drum diameter 475mm, specification 5-30mm2, wire outlet speed 160m/min

Wire take-up and arrangement machine: self-propelled take-up machine, take-up reel specification PN710-PN800, LHD500/5C five-die wire drawing machine set

Pay-off device: coil-type passive pay-off or gantry pay-off device (selected by the customer)

Active flattening machine: drive power 30kw, line speed 100m/min

Wire drawing machine: drive power 55kw, maximum feed rod diameter 8mm, wire specification 5-30mm2, wire speed 160m/min

Wire take-up machine: self-propelled take-up machine, take-up reel specification PN710-PN800

Development Line of carbon steel flat wires and square wires

Add to that the ever-challenging manufacturing environment of today, and setting up a high-quality production line for carbon steel flat wires or square wire becomes an extremely challenging thing. Our philosophy is one of precise from the raw material to final packaging. Our advanced wire drawing technology and world class rolling mill and drawing machine  guarantee dimensional precision with the best surface finish. To ensure our excellence, a high degree of quality control measures are followed at every stage up to comply with insdustry stanmdards. Beyond this, sustainability is woven into the fabric of our operations through eco-friendly practices at every step. We always lean on innovation and technical expertise to ensure our solutions are dependable that suits a wide range of the market needs Come and help us lead the way into a cleaner, greener world of effective carbon steel wire manufacturing for tomorrow.

How to Select the right Production Line For Carbon Steel Flat Wires And Square Wires?

Choosing the right carbon steel flat wire and square wire line is important to streamlining and quality production processes. Selecting the right flattening mill requires an evaluation of these primary factors to ensure optimal performance and end product formulated.

Check the capacity and capability of mill in terms of handling diameter range and material type, which is carbon steel wires to be flattened Mills exhibit differences in processing capacities, which serves to inform the appropriate mill selection relative to your production volume so as not be kept waiting for operational advantages.

Second, investigate the roller design and adjustment features of your mill. Choose mills that provide accurate pressure settings and roller alignment to allow the flattening degree you need without damage to the material.

Also, pay heed to maintainability of the mill and longevity. A strong construction with durable parts will not only improve longevity but also reduce the time for repairs and replacements.

Finally, consider the evolution of technology - for example automation and digital controls which can help make your operation more efficient while improving product consistency.

A comprehensive evaluation, and possible consultation with an expert in the field will allow companies to find a carbon steel wire flattening mill which best suits their production requirements for high-quality output coupled with operational excellence.
