Rolling Cassette

Wire Rolling Cassette
Uses:Rolling from round to flat and Profile
Suitable Material: carbon steel wire, stainless steel wire, titanium wire, titanium nickel alloy wire, copper wire, aluminum wire, brass wire and other non-ferrous and ferrous metals

Send email to us

Product Detail

Video

Product Tags

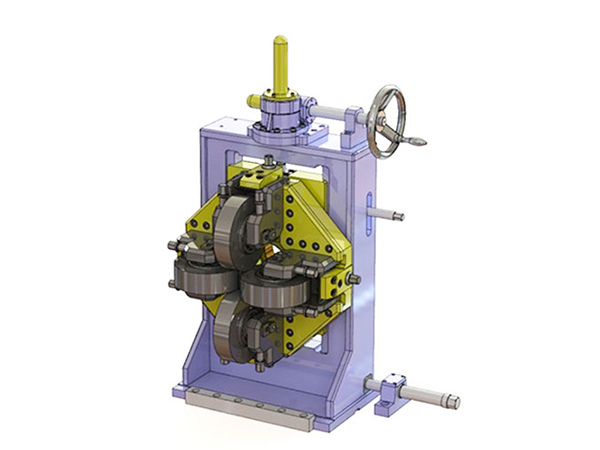

Turks Head/Cassette Roller Dies
Brand	CRM
Model	GL
Type	Cold Rolling
Shapes	Flat, Rectangle, wedge, triangular, water-drop, special-shaped,profile
Tolerance	+-0.001mm or can be Customized
Material	Applicable materials: suitable for high carbon, medium carbon, low carbon steel wire, stainless steel wire, titanium wire, titanium nickel alloy wire, copper wire, aluminum wire, brass wire and other non-ferrous and ferrous metals
Usage	It is usually used as a supporting tractor or wire drawing machine
Uses	Used for rolling rectangular and square profiles, suitable for non-ferrous and ferrous metals such as high, medium and low carbon steel wire, stainless steel wire, copper aluminum and alloys
Roll Details
Roll material:	tool steel, sintered metal or carbide steel
Roller Diameter:	50-350 mm
Roll precision:	less than 0.001mm
Optional Devices
Pay-off Unit	Spool pay-off, Coiling pay- off unit
Take-up Unit	Customized
wire guide device	Customized
Laser measuring system	Customized
Central Lubrication System	Customized
Features
Compact structure	simple structure and low price, suitable for the production of wire rods with low added value
Rolls replacement	non-replacing rollers on different shaped wires.
Uses	High Precision,Long life,Easy Installation,non-replacing rollers on different shaped wires.
Attribute:	non-driven roller head. Rectangular or square wires with small or medium cross-sections can be produced directly from round wires,
Cost-Effective	Compared with drawing with special-shaped molds, the production of roller molds is more economical and technically superior. The surface of the wire is smoother Long service life, High Precision
Dry Operation	In special cases, it can be operated without lubricating oil (dry operation).

CRM rolling cassette is the most accurate and miniaturized model, and it is a roller dies to replace traditional wire drawing and wire drawing die. The original intention of this model is to solve the difficulty of metal wire over-molding, and it is suitable for high, medium and low carbon steel wire, stainless steel wire, welding wire, steel cord wire, aluminum-magnesium alloy wire, titanium, chromium, zirconium and other wires. The dimensions of the rolling cassette of this model are almost similar to the dimensions of the rolling cassette of the existing wire drawing machine. Easy to replace.
